Wellbore #00 Wellbore Classification: GW Status: PR - 3/2/2012 Measured TD: 8232 ft. Vertical TD: 7743 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/2/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/10/2013 | | Proposed Top PZ Location: | Sec:23 Twp: 6S 96W | Footage: 1483 FNL 1825 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 96W | Footage: 1483 FNL 1825 FWL | | Proposed Depth/Form: | 8220 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-14 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 946 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 330, Top: 0 ft., Bottom: 946 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8220 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 577, Top: , Bottom: 8220 ft. |
| | |

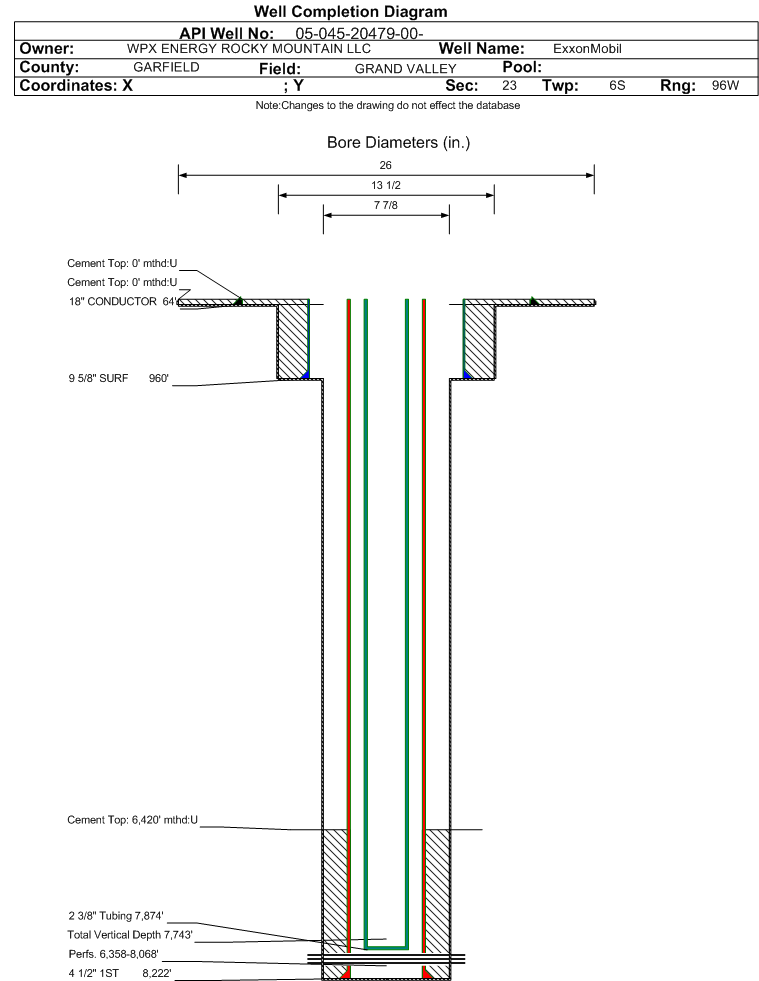

| Wellbore Completed | | Completion Date: | 8/15/2011 | | Spud Date: | 8/7/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8232 ft. | Measured PB depth: | 8188 ft. | | True Vertical TD: | 7743 ft. | True Vertical PB depth: | 7699 ft. | | Top PZ Location: | Sec:23 Twp: 6s 96w | Footage: 1476 FNL 1836 FWL | | Bottom Hole Location: | Sec:23 Twp: 6s 96w | Footage: 1496 FNL 1792 FWL | | Log Types: | CBL, MUD, & RPM | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 64 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 64 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 960 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 265, Top: 0 ft., Bottom: 960 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8222 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1225, Top: 6420 ft., Bottom: 8222 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 5864 ft., Depth: 6359 ft., Bottom: 6359 ft., Sacks: 200, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2688 ft. | | | | | MESAVERDE | 4884 ft. | | | | | CAMEO | 7642 ft. | | | | | ROLLINS | 8142 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/2/2012 Interval Top: 6358 ft. Interval Bottom: 8068 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/6/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/9/2011 | | Treatment Summary: | 3503 gal 7.5% HCL; 1042400# 30/50 Sand; 47353 BBL's Slickwater (Summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7874 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/2/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1040 | | CALC_MCF_GAS | 1654 | | CASING_PRESS | 2174 | | MCF_GAS | 1654 | | TUBING_PRESS | 1962 |
| | Perforation Data: | | Interval Top: | 6358 ft. | # Of Holes: | 115 | | Interval Bottom: | 8068 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 69 |
| Total Gas Produced (MCF) | 29151 |
| GOR | 422478 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.960 |
| Average MCFE per Day | 80.992 |
| Federal Financial Assurance | i | Y |
|
|
