Wellbore #00 Wellbore Classification: GW Status: PR - 2/28/2012 Measured TD: 8000 ft. Vertical TD: 7609 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/28/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/10/2013 | | Proposed Top PZ Location: | Sec:23 Twp: 6S 96W | Footage: 1212 FSL 2330 FEL | | Bottom Hole Location: | Sec:23 Twp: 6S 96W | Footage: 1212 FSL 2330 FEL | | Proposed Depth/Form: | 8036 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-14 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 852 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 301, Top: 0 ft., Bottom: 852 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8036 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 570, Top: , Bottom: 8036 ft. |
| | |

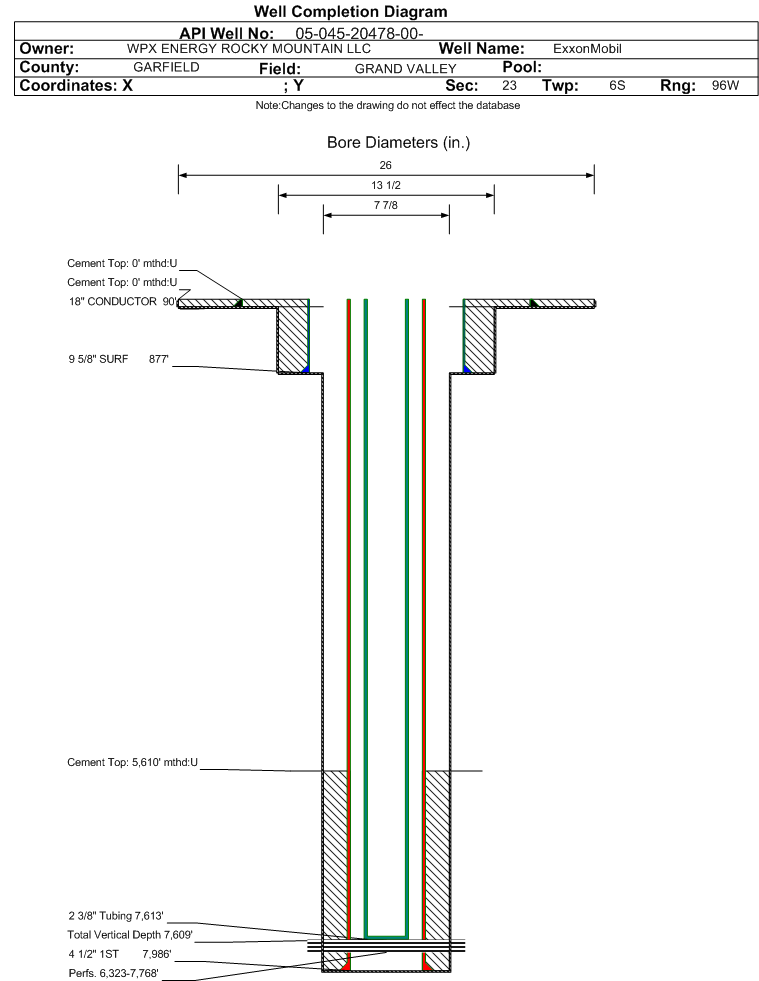

| Wellbore Completed | | Completion Date: | 10/21/2011 | | Spud Date: | 10/13/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8000 ft. | Measured PB depth: | 7953 ft. | | True Vertical TD: | 7609 ft. | True Vertical PB depth: | 7562 ft. | | Top PZ Location: | Sec:23 Twp: 6S 96W | Footage: 1200 FSL 2380 FEL | | Bottom Hole Location: | Sec:23 Twp: 6S 2380 | Footage: 1205 FSL 2370 FEL | | Log Types: | CBL, MUD, & RPM | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 90 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 33, Top: 0 ft., Bottom: 90 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 877 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 235, Top: 0 ft., Bottom: 877 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7986 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1020, Top: 5610 ft., Bottom: 7986 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2610 ft. | | | | | MESAVERDE | 4729 ft. | | | | | CAMEO | 7412 ft. | | | | | ROLLINS | 7935 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 2/28/2012 Interval Top: 6323 ft. Interval Bottom: 7768 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/28/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/8/2011 | | Treatment Summary: | 3523 gal 7.5% HCL; 1195700# 30/50 Sand; 74762 BBL's Slickwater (summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7613 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1061 | | CALC_MCF_GAS | 1221 | | CASING_PRESS | 1864 | | MCF_GAS | 1221 | | TUBING_PRESS | 1735 |
| | Perforation Data: | | Interval Top: | 6323 ft. | # Of Holes: | 127 | | Interval Bottom: | 7768 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 116 |
| Total Gas Produced (MCF) | 51954 |
| GOR | 447879 |
| GOR Determination | MCFE |
| Average BOE per Day | 24.870 |
| Average MCFE per Day | 144.237 |
| Federal Financial Assurance | i | |
|
|
