Wellbore #00 Wellbore Classification: GW Status: PR - 2/22/2012 Measured TD: 7622 ft. Vertical TD: 7616 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/22/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/10/2013 | | Proposed Top PZ Location: | Sec:23 Twp: 6S 96W | Footage: 1978 FSL 631 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 96W | Footage: 1978 FSL 631 FWL | | Proposed Depth/Form: | 7608 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-14 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 761 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 761 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7608 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 559, Top: , Bottom: 7608 ft. |
| | |

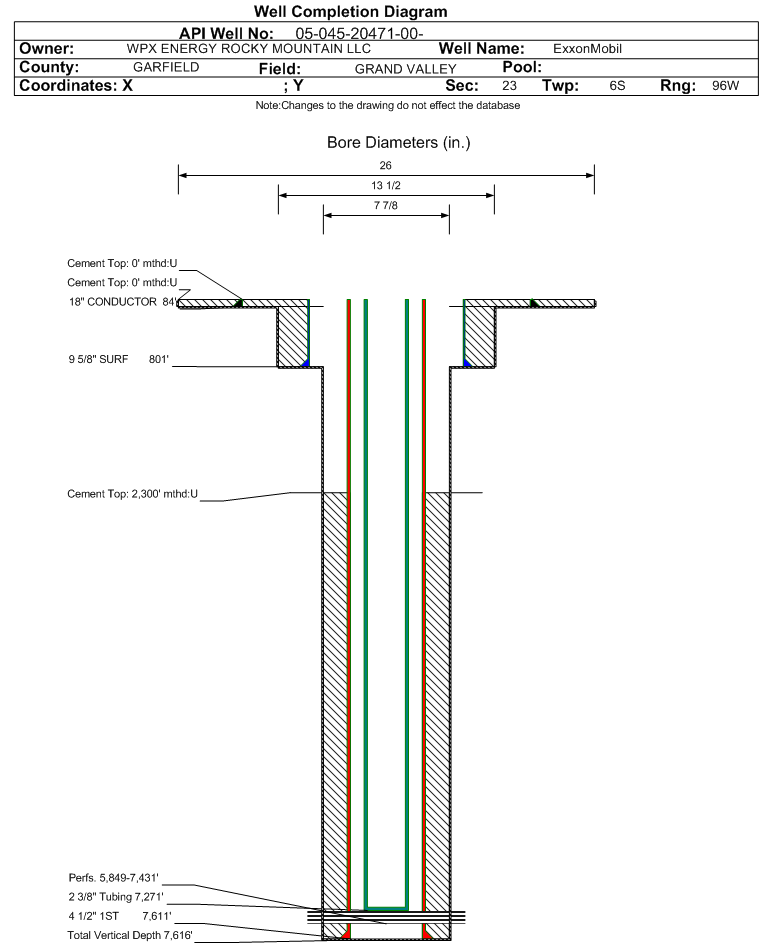

| Wellbore Completed | | Completion Date: | 7/16/2011 | | Spud Date: | 7/10/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7622 ft. | Measured PB depth: | 7577 ft. | | True Vertical TD: | 7616 ft. | True Vertical PB depth: | 7570 ft. | | Top PZ Location: | Sec:23 Twp: 6s 96w | Footage: 1978 FSL 636 FWL | | Bottom Hole Location: | Sec:23 Twp: 6s 96w | Footage: 1970 FSL 619 FWL | | Log Types: | CBL, MUD, & RPM | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 84 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 84 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 801 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 235, Top: 0 ft., Bottom: 801 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7611 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1005, Top: 2300 ft., Bottom: 7611 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2519 ft. | | | | | MESAVERDE | 4375 ft. | | | | | CAMEO | 6986 ft. | | | | | ROLLINS | 7507 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/22/2012 Interval Top: 5849 ft. Interval Bottom: 7431 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/28/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/7/2011 | | Treatment Summary: | 3002 gal 7.5% HCL; 970400# 30/50 Sand; 27803 BBLs Slickwater (Summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7271 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/22/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1055 | | CALC_MCF_GAS | 1022 | | CASING_PRESS | 1434 | | MCF_GAS | 1022 | | TUBING_PRESS | 1314 |
| | Perforation Data: | | Interval Top: | 5849 ft. | # Of Holes: | 108 | | Interval Bottom: | 7431 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 33 |
| Total Gas Produced (MCF) | 14799 |
| GOR | 448454 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.081 |
| Average MCFE per Day | 41.076 |
| Federal Financial Assurance | i | Y |
|
|
