Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2012 Measured TD: 7923 ft. Vertical TD: 7574 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/10/2013 | | Proposed Top PZ Location: | Sec:22 Twp: 6S 96W | Footage: 1988 FSL 943 FEL | | Bottom Hole Location: | Sec:22 Twp: 6S 96W | Footage: 1988 FSL 943 FEL | | Proposed Depth/Form: | 7924 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: , Drill Unit: Unspaced | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 964 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 332, Top: 0 ft., Bottom: 964 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7924 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 558, Top: , Bottom: 7924 ft. |
| | |

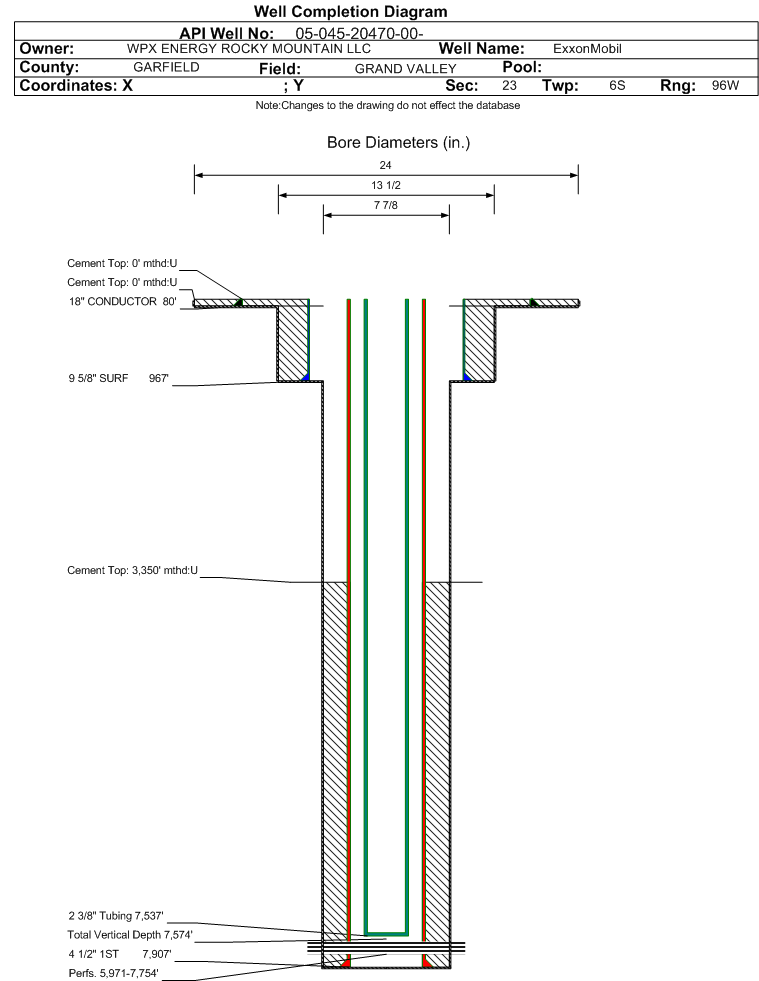

| Wellbore Completed | | Completion Date: | 7/2/2011 | | Spud Date: | 6/25/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7923 ft. | Measured PB depth: | 7873 ft. | | True Vertical TD: | 7574 ft. | True Vertical PB depth: | 7524 ft. | | Top PZ Location: | Sec:22 Twp: 6S 96W | Footage: 1988 FSL 932 FEL | | Bottom Hole Location: | Sec:22 Twp: 6S 96W | Footage: 1999 FSL 954 FEL | | Log Types: | SP/GR/HDIL/ZDL/CN and CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 967 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 967 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7907 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 995, Top: 3350 ft., Bottom: 7907 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2675 ft. | | | | | MESAVERDE | 4701 ft. | | | | | CAMEO | 7399 ft. | | | | | ROLLINS | 7832 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 2/2/2012 Interval Top: 5971 ft. Interval Bottom: 7754 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/5/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/6/2011 | | Treatment Summary: | 3009 gals 7.5% HCL; 986,435# 30/50 Sand; 97,547 Bbls Slickwater |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7537 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/2/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1056 | | CALC_MCF_GAS | 1120 | | CASING_PRESS | 2107 | | MCF_GAS | 1120 | | TUBING_PRESS | 1721 |
| | Perforation Data: | | Interval Top: | 5971 ft. | # Of Holes: | 131 | | Interval Bottom: | 7754 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 40971 |
| GOR | 744927 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.509 |
| Average MCFE per Day | 113.149 |
| Federal Financial Assurance | i | Y |
|
|
