Wellbore #00 Wellbore Classification: GW Status: PR - 12/14/2012 Measured TD: 7950 ft. Vertical TD: 7730 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/14/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/6/2013 | | Proposed Top PZ Location: | Sec:35 Twp: 6S 94W | Footage: 2016 FNL 1950 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 94W | Footage: 2016 FNL 1950 FWL | | Proposed Depth/Form: | 7902 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 391, Top: 0 ft., Bottom: 1123 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7902 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 634, Top: , Bottom: 7902 ft. |
| | |

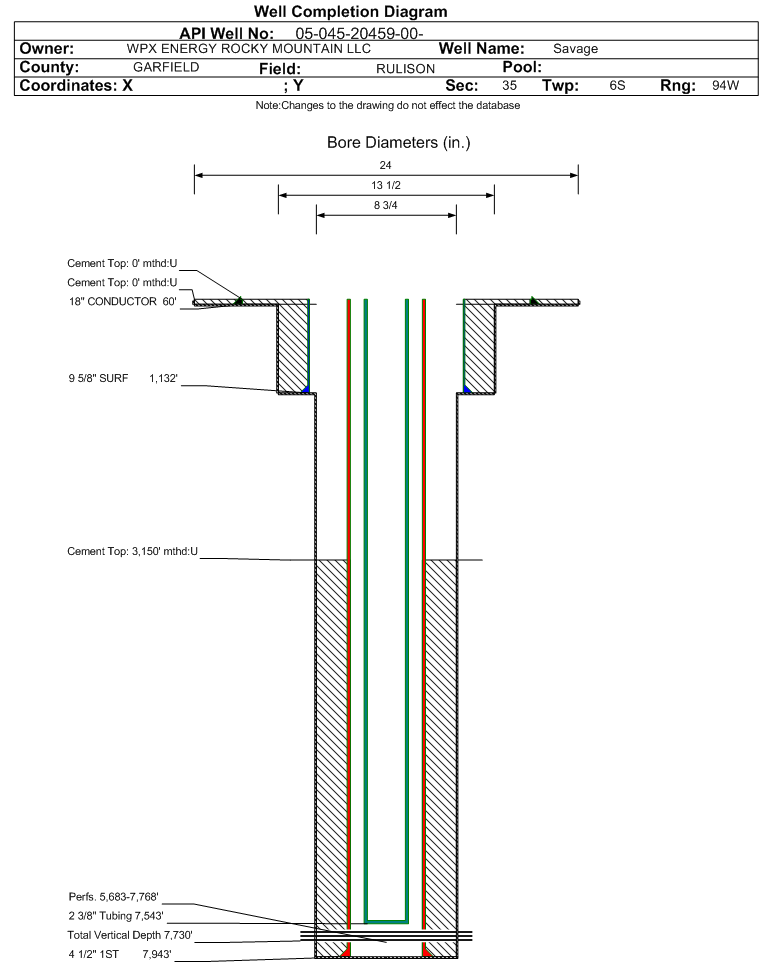

| Wellbore Completed | | Completion Date: | 7/4/2012 | | Spud Date: | 6/24/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7950 ft. | Measured PB depth: | 7890 ft. | | True Vertical TD: | 7730 ft. | True Vertical PB depth: | 7670 ft. | | Top PZ Location: | Sec:35 Twp: 6S 94W | Footage: 1981 FNL 1953 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 94W | Footage: 1987 FNL 1948 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1132 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 1132 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7943 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 505, Top: 3150 ft., Bottom: 7943 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: , Depth: 5148 ft., Bottom: , Sacks: , Method: DV TOOL | | Additional Cement: | String Type: 1ST , Top: 5203 ft., Depth: 5203 ft., Bottom: 5203 ft., Sacks: 50, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1567 ft. | | | | | MESAVERDE | 4176 ft. | | | | | CAMEO | 6951 ft. | | | | | ROLLINS | 7886 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 11/30/2012 Interval Top: 5683 ft. Interval Bottom: 7768 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/18/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/16/2012 | Treatment End Date: | 10/22/2012 | | Treatment Summary: | 0 Gals 7 ½% HCL; 713000 # 30/50 Sand; 167300 100/Mesh; 26343 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 26344 | Max pressure during treatment (psi): | 4794 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.78 | | Recycled water used in treatment (bbls): | 26344 | Total flowback volume recovered (bbls): | 9428 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 880300 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7543 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1126 | | CALC_MCF_GAS | 941 | | CASING_PRESS | 1910 | | MCF_GAS | 941 | | TUBING_PRESS | 1621 |
| | Perforation Data: | | Interval Top: | 5683 ft. | # Of Holes: | 128 | | Interval Bottom: | 7768 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 26931 |
| GOR | 489654 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.877 |
| Average MCFE per Day | 74.673 |
| Federal Financial Assurance | i | Y |
|
|
