Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2025 Measured TD: 5468 ft. Vertical TD: 5411 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/30/2013 | | Proposed Top PZ Location: | Sec:12 Twp: 7S 92W | Footage: 2100 FNL 2010 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 92W | Footage: 2100 FNL 2010 FWL | | Proposed Depth/Form: | 6334 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA | Unit Number: | COC55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1112 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 536, Top: 0 ft., Bottom: 1112 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6334 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 648, Top: 0 ft., Bottom: 6334 ft. |
| | |

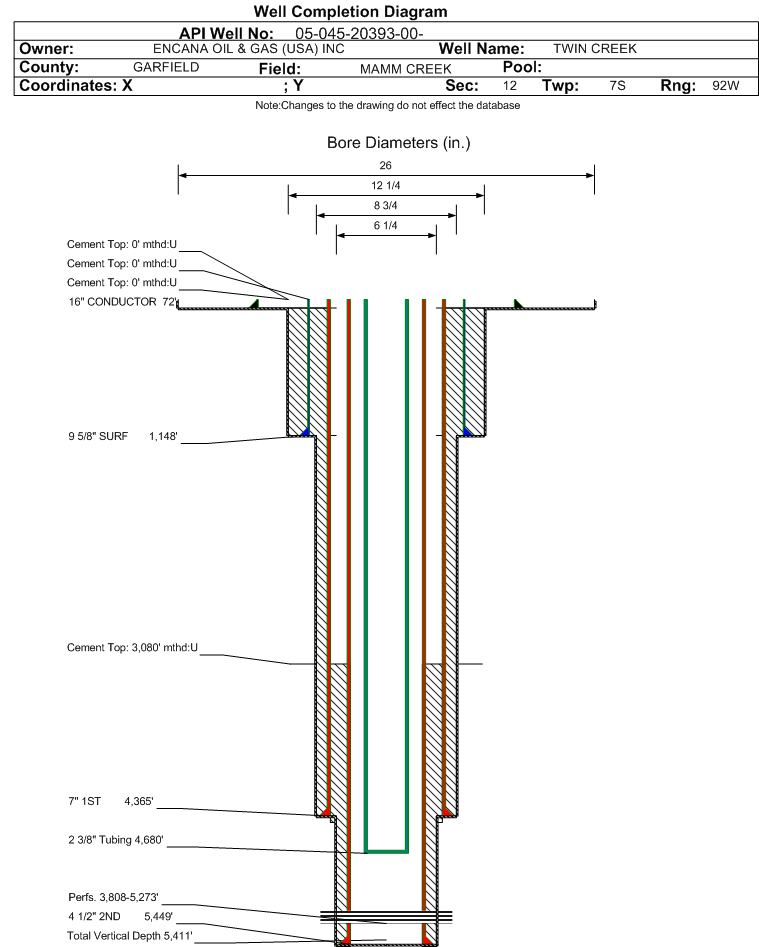

| Wellbore Completed | | Completion Date: | 4/26/2012 | | Spud Date: | 1/15/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 5468 ft. | Measured PB depth: | 5400 ft. | | True Vertical TD: | 5411 ft. | True Vertical PB depth: | 5343 ft. | | Top PZ Location: | Sec:12 Twp: 7S 92W | Footage: 2071 FNL 2022 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 92W | Footage: 2089 FNL 2028 FWL | | Log Types: | RST, CBL (included in Neutron Log) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 72 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 72 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1148 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 534, Top: 0 ft., Bottom: 1148 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 4365 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 824, Top: 0 ft., Bottom: 4420 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 5449 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 333, Top: 3080 ft., Bottom: 5468 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 2309 ft. | 2888 ft. | N | N | | WILLIAMS FORK | 2889 ft. | 5468 ft. | N | N |
Formation WMFK Formation Classification: GW Status: SI - 9/1/2025 Interval Top: 3808 ft. Interval Bottom: 5273 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/18/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/14/2012 | Treatment End Date: | 6/24/2012 | | Treatment Summary: | Stages 1-6 treated with a total of: 102,954 bbls of Slickwater. | | Total fluid used in treatment (bbls): | 102954 | Max pressure during treatment (psi): | 6475 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.50 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.83 | | Recycled water used in treatment (bbls): | 102954 | Total flowback volume recovered (bbls): | 54486 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4680 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/18/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1573 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1573 | | CALC_BBLS_OIL | 24 | | CALC_MCF_GAS | 973 | | CASING_PRESS | 2000 | | MCF_GAS | 973 | | TUBING_PRESS | 845 |
| | Perforation Data: | | Interval Top: | 3808 ft. | # Of Holes: | 162 | | Interval Bottom: | 5273 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 23 |
| GOR | 23000 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.013 |
| Average MCFE per Day | 0.078 |
| Federal Financial Assurance | i | Y |
|
|
