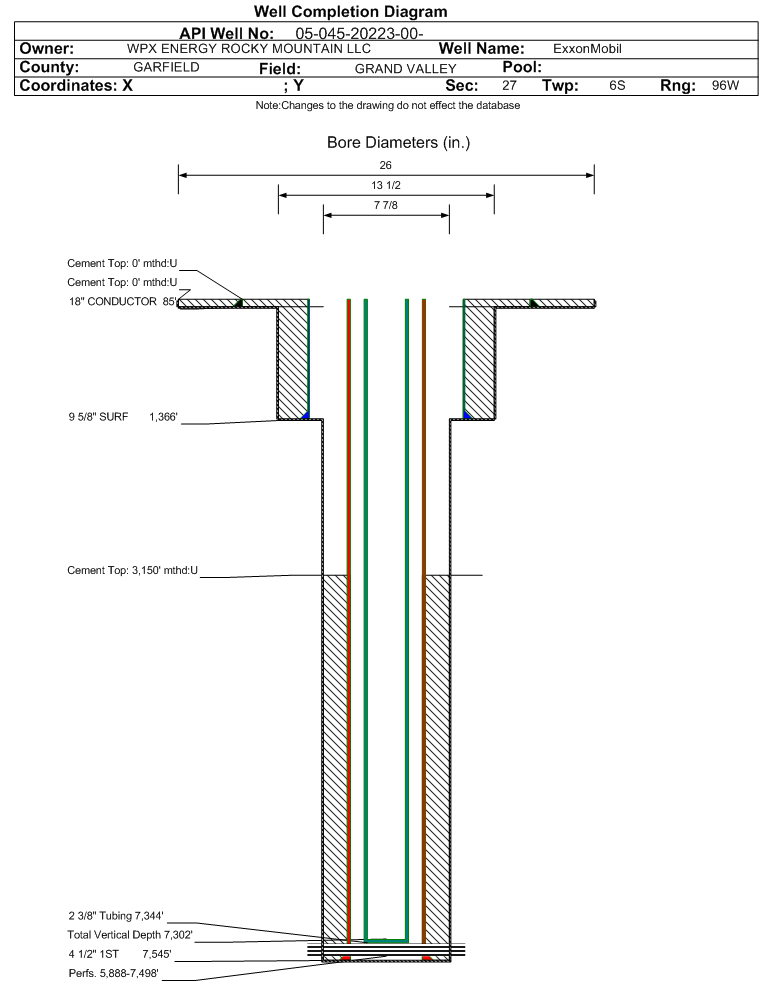

Wellbore #00 Wellbore Classification: GW Status: PR - 11/30/2011 Measured TD: 7611 ft. Vertical TD: 7302 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/30/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/11/2012 | | Proposed Top PZ Location: | Sec:26 Twp: 6S 96W | Footage: 500 FNL 938 FWL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 506 FNL 916 FWL | | Proposed Depth/Form: | 7618 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 320, Drill Unit: W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1354 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 473, Top: 0 ft., Bottom: 1354 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7618 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 560, Top: , Bottom: 7618 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/22/2011 | | Spud Date: | 8/15/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7611 ft. | Measured PB depth: | 7565 ft. | | True Vertical TD: | 7302 ft. | True Vertical PB depth: | 7256 ft. | | Top PZ Location: | Sec:26 Twp: 6S 96W | Footage: 500 FNL 938 FWL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 506 FNL 916 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN AND CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 85 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1366 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 344, Top: 0 ft., Bottom: 1366 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7545 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 3150 ft., Bottom: 7545 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2378 ft. | | | | | MESAVERDE | 4380 ft. | | | | | CAMEO | 6978 ft. | | | | | ROLLINS | 7521 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/30/2011 Interval Top: 5888 ft. Interval Bottom: 7498 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/29/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/24/2011 | | Treatment Summary: | 2014 GALS 7 1/2% HCL; 848800# 30/50 SAND; 23933 BBLS SLICKWATER; (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7344 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2011 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1051 | | CALC_MCF_GAS | 940 | | CASING_PRESS | 1817 | | MCF_GAS | 823 | | TUBING_PRESS | 1601 |
| | Perforation Data: | | Interval Top: | 5888 ft. | # Of Holes: | 113 | | Interval Bottom: | 7498 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 37 |
| Total Gas Produced (MCF) | 15536 |
| GOR | 419891 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.444 |
| Average MCFE per Day | 43.162 |
| Federal Financial Assurance | i | |
|
|
