Wellbore #00 Wellbore Classification: GW Status: PR - 10/31/2011 Measured TD: 8080 ft. Vertical TD: 7387 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/31/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/11/2012 | | Proposed Top PZ Location: | Sec:22 Twp: 6S 96W | Footage: 1536 FSL 874 FEL | | Bottom Hole Location: | Sec:22 Twp: 6S 96W | Footage: 1536 FSL 874 FEL | | Proposed Depth/Form: | 8064 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: , Drill Unit: Unspaced | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 1 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1203 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 1203 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8064 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 559, Top: , Bottom: 8064 ft. |
| | |

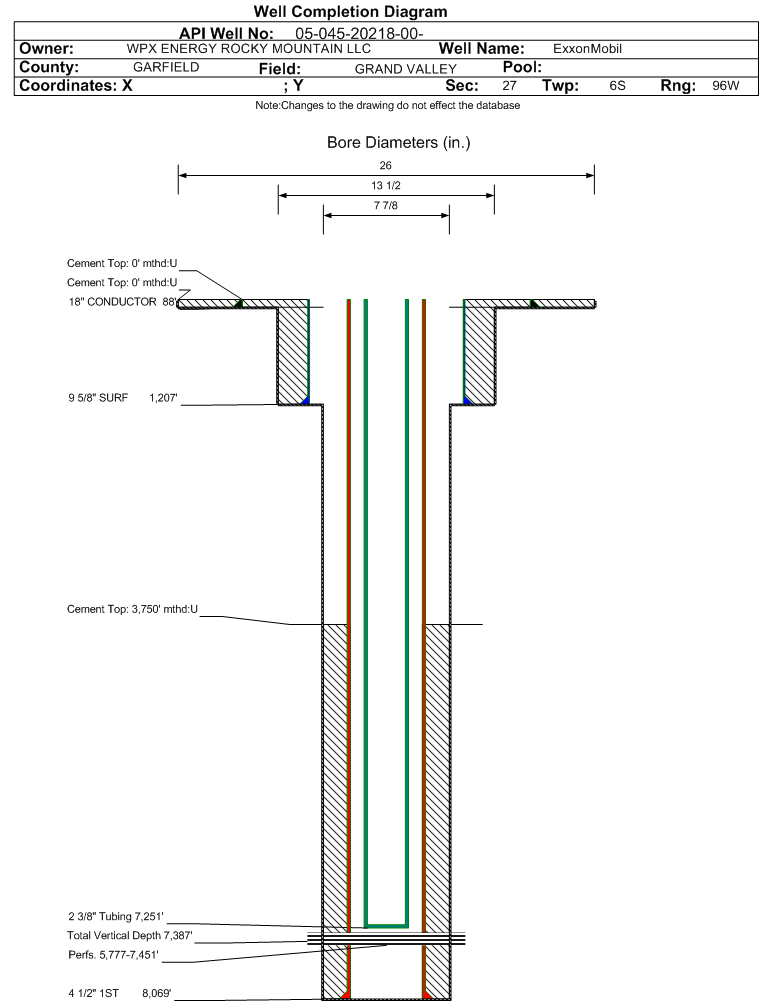

| Wellbore Completed | | Completion Date: | 5/4/2011 | | Spud Date: | 4/28/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8080 ft. | Measured PB depth: | 7574 ft. | | True Vertical TD: | 7387 ft. | True Vertical PB depth: | 6881 ft. | | Top PZ Location: | Sec:22 Twp: 6s 96w | Footage: 1505 FSL 873 FEL | | Bottom Hole Location: | Sec:22 Twp: 6s 96w | Footage: 1561 FSL 891 FEL | | Log Types: | CBL AND RESERVOIR PERFORMANCE MONITOR (RPM) | | Log Types: | CBL & RPM, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 88 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 33, Top: 0 ft., Bottom: 88 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1207 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1207 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8069 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 3750 ft., Bottom: 8069 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2602 ft. | | | | | MESAVERDE | 4828 ft. | | | | | CAMEO | 7531 ft. | | | | | ROLLINS | 7933 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/31/2011 Interval Top: 5777 ft. Interval Bottom: 7451 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/31/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/29/2011 | | Treatment Summary: | 3500 gal 7.5% HCL; 1266264# 30/50 Sand; 56052 BBLS Slickwater (Summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7251 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2011 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1092 | | CALC_MCF_GAS | 1489 | | CASING_PRESS | 1695 | | MCF_GAS | 1489 | | TUBING_PRESS | 1436 |
| | Perforation Data: | | Interval Top: | 5777 ft. | # Of Holes: | 138 | | Interval Bottom: | 7451 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 71 |
| Total Gas Produced (MCF) | 34152 |
| GOR | 481014 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.328 |
| Average MCFE per Day | 94.687 |
| Federal Financial Assurance | i | Y |
|
|
