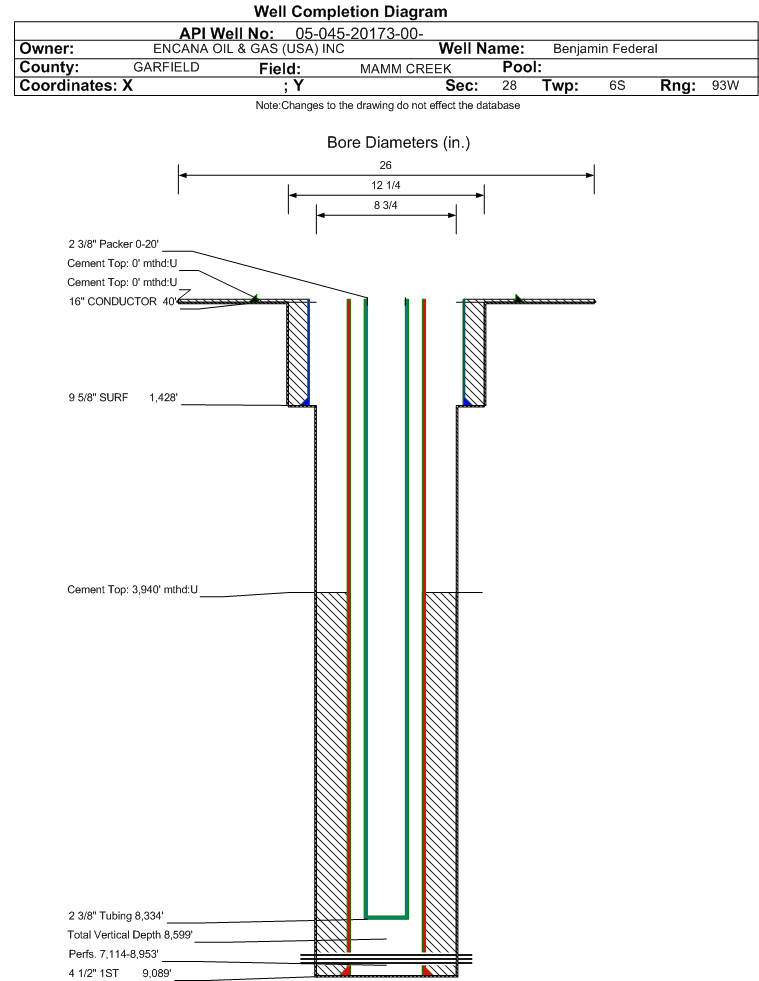

Wellbore #00 Wellbore Classification: GW Status: PR - 10/10/2011 Measured TD: 9100 ft. Vertical TD: 8599 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/10/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/25/2012 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 93W | Footage: 350 FSL 240 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 93W | Footage: 350 FSL 240 FWL | | Proposed Depth/Form: | 9407 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Grass Mesa | Unit Number: | COC056608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: .25 , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1411 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 437, Top: 0 ft., Bottom: 1411 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9407 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 823, Top: 0 ft., Bottom: 9407 ft. |
| | |
| Wellbore Completed | | Completion Date: | 4/29/2011 | | Spud Date: | 1/19/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 9100 ft. | Measured PB depth: | 9043 ft. | | True Vertical TD: | 8599 ft. | True Vertical PB depth: | 8542 ft. | | Top PZ Location: | Sec:28 Twp: 6S 93W | Footage: 333 FSL 253 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 93W | Footage: 254 FSL 253 FWL | | Log Types: | RST, CBL (same log) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1428 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 457, Top: 0 ft., Bottom: 1428 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9089 ft., Weight: 12 , Citings Type: ACTUAL | | Cement: | Sacks: 1303, Top: 3940 ft., Bottom: 9100 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5144 ft. | 9100 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 9/13/2011 Interval Top: 7114 ft. Interval Bottom: 8953 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/6/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/25/2011 | | Treatment Summary: | Stages 1-7 treated with a total of: 72,101 bbls of Slickwater. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8334 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/13/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 103 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 103 | | CALC_MCF_GAS | 348 | | CASING_PRESS | 910 | | MCF_GAS | 348 | | TUBING_PRESS | 225 |
| | Perforation Data: | | Interval Top: | 7114 ft. | # Of Holes: | 189 | | Interval Bottom: | 8953 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 62 |
| Total Gas Produced (MCF) | 12734 |
| GOR | 205387 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.187 |
| Average MCFE per Day | 35.894 |
| Federal Financial Assurance | i | Y |
|
|
