Wellbore #00 Wellbore Classification: GW Status: PR - 10/10/2011 Measured TD: 9080 ft. Vertical TD: 8623 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/10/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/25/2012 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 93W | Footage: 715 FSL 240 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 93W | Footage: 715 FSL 240 FWL | | Proposed Depth/Form: | 9352 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Grass Mesa | Unit Number: | COC056608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: .25 , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1402 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 434, Top: 0 ft., Bottom: 1402 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9352 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 821, Top: 0 ft., Bottom: 9352 ft. |
| | |

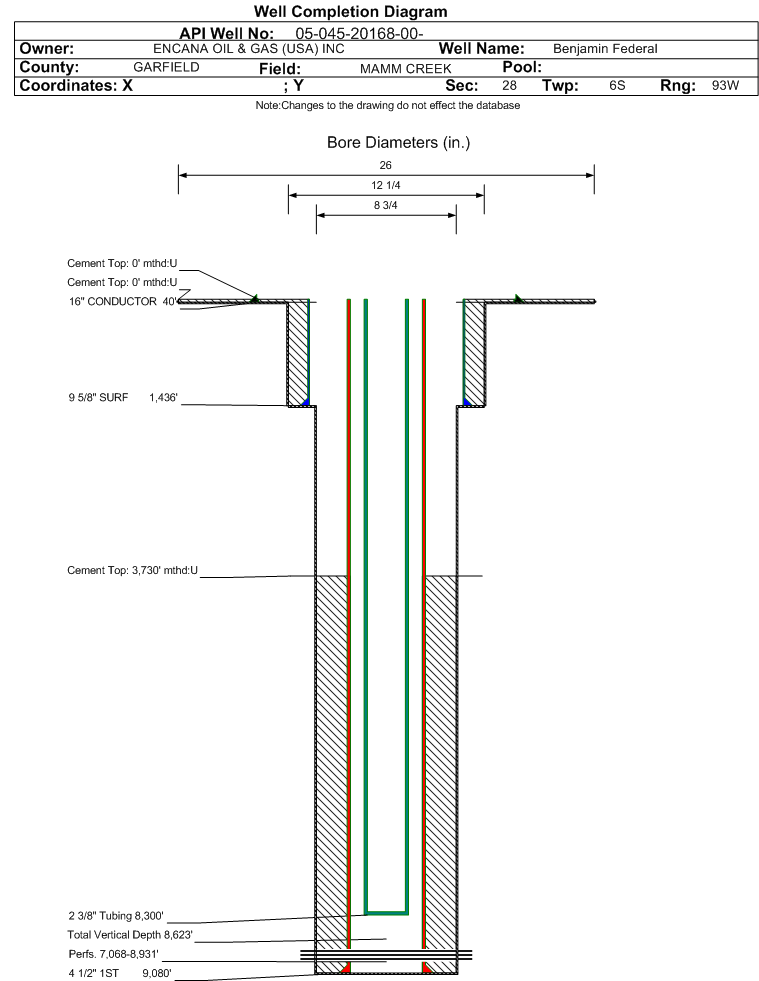

| Wellbore Completed | | Completion Date: | 5/9/2011 | | Spud Date: | 1/18/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 9080 ft. | Measured PB depth: | 9035 ft. | | True Vertical TD: | 8623 ft. | True Vertical PB depth: | 8579 ft. | | Top PZ Location: | Sec:28 Twp: 6S 93W | Footage: 692 FSL 284 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 93W | Footage: 675 FSL 257 FWL | | Log Types: | RST, CBL (same log) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1436 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 454, Top: 0 ft., Bottom: 1436 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9080 ft., Weight: 12 , Citings Type: ACTUAL | | Cement: | Sacks: 1155, Top: 3730 ft., Bottom: 9080 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5161 ft. | 9080 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 8/16/2011 Interval Top: 7068 ft. Interval Bottom: 8931 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/9/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/3/2011 | | Treatment Summary: | Stages 1-7 treated with a total of: 63,930 bbls of Slickwater. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8300 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/16/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 173 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 173 | | CALC_MCF_GAS | 428 | | CASING_PRESS | 960 | | MCF_GAS | 428 | | TUBING_PRESS | 360 |
| | Perforation Data: | | Interval Top: | 7068 ft. | # Of Holes: | 186 | | Interval Bottom: | 8931 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 131 |
| Total Gas Produced (MCF) | 22862 |
| GOR | 174519 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.162 |
| Average MCFE per Day | 64.720 |
| Federal Financial Assurance | i | Y |
|
|
