Wellbore #00 Wellbore Classification: GW Status: PR - 1/31/2013 Measured TD: 7013 ft. Vertical TD: 6895 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/31/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/2/2014 | | Proposed Top PZ Location: | Sec:4 Twp: 7s 95w | Footage: 647 FSL 1999 FWL | | Bottom Hole Location: | Sec:4 Twp: 7s 95w | Footage: 632 FSL 1991 FWL | | Proposed Depth/Form: | 7009 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-35 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 701 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 245, Top: 0 ft., Bottom: 701 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7009 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 563, Top: 3548 ft., Bottom: 7009 ft. |
| | |

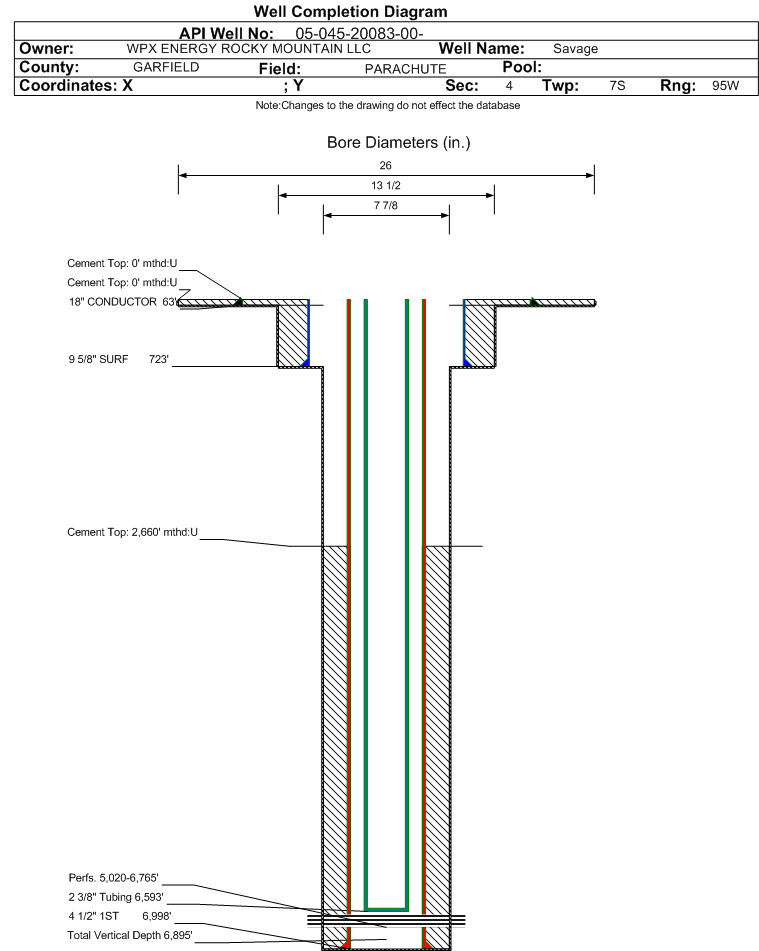

| Wellbore Completed | | Completion Date: | 10/20/2012 | | Spud Date: | 10/14/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7013 ft. | Measured PB depth: | 6937 ft. | | True Vertical TD: | 6895 ft. | True Vertical PB depth: | 6819 ft. | | Top PZ Location: | Sec:4 Twp: 7s 95w | Footage: 647 FSL 1999 FWL | | Bottom Hole Location: | Sec:4 Twp: 7s 95w | Footage: 632 FSL 1991 FWL | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 723 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 220, Top: 0 ft., Bottom: 723 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6998 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1080, Top: 2660 ft., Bottom: 6998 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1723 ft. | | | | | MESAVERDE | 3761 ft. | | | | | CAMEO | 5893 ft. | | | | | ROLLINS | 6844 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 1/31/2013 Interval Top: 5020 ft. Interval Bottom: 6765 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/15/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/13/2012 | Treatment End Date: | 12/17/2012 | | Treatment Summary: | 686000#40/70 Sand; 19688 Bbls Slickwater; (Summary) | | Total fluid used in treatment (bbls): | 19688 | Max pressure during treatment (psi): | 3790 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.65 | | Recycled water used in treatment (bbls): | 19688 | Total flowback volume recovered (bbls): | 9849 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 686000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6593 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/31/2013 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 715 | | CASING_PRESS | 1288 | | MCF_GAS | 715 | | TUBING_PRESS | 861 |
| | Perforation Data: | | Interval Top: | 5020 ft. | # Of Holes: | 26 | | Interval Bottom: | 6765 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 16378 |
| GOR | 779904 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.797 |
| Average MCFE per Day | 45.229 |
| Federal Financial Assurance | i | |
|
|
