Wellbore #00 Wellbore Classification: GW Status: PR - 5/14/2013 Measured TD: 7135 ft. Vertical TD: 6963 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/14/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/2/2014 | | Proposed Top PZ Location: | Sec:4 Twp: 7S 95W | Footage: 2560 FNL 1856 FWL | | Bottom Hole Location: | Sec:4 Twp: 7S 95W | Footage: 2560 FNL 1856 FWL | | Proposed Depth/Form: | 7145 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-35 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 714 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 249, Top: 0 ft., Bottom: 714 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7144 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 578, Top: 3595 ft., Bottom: 7144 ft. |
| | |

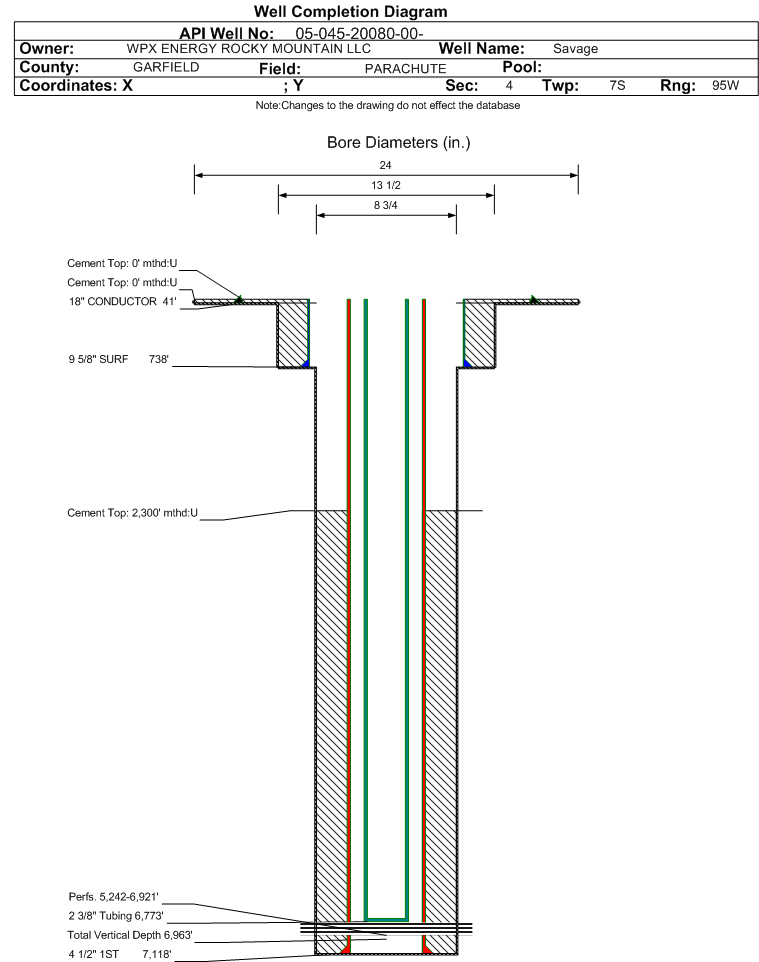

| Wellbore Completed | | Completion Date: | 2/12/2013 | | Spud Date: | 2/7/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 7135 ft. | Measured PB depth: | 7085 ft. | | True Vertical TD: | 6963 ft. | True Vertical PB depth: | 6913 ft. | | Top PZ Location: | Sec:4 Twp: 7S 95W | Footage: 2673 FNL 1831 FWL | | Bottom Hole Location: | Sec:4 Twp: 7S 95W | Footage: 2646 FNL 1822 FWL | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 41 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 41 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 738 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 0 ft., Bottom: 738 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7118 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1095, Top: 2300 ft., Bottom: 7118 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1680 ft. | | | | | MESAVERDE | 3795 ft. | | | | | CAMEO | 6094 ft. | | | | | ROLLINS | 6973 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 4/30/2013 Interval Top: 5242 ft. Interval Bottom: 6921 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/10/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/2/2013 | Treatment End Date: | 3/9/2013 | | Treatment Summary: | 660000#40/70 Sand; 18857 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on comingled volumes. | | Total fluid used in treatment (bbls): | 18857 | Max pressure during treatment (psi): | 4849 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.69 | | Recycled water used in treatment (bbls): | 18857 | Total flowback volume recovered (bbls): | 6142 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 660000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6773 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1045 | | CALC_MCF_GAS | 620 | | CASING_PRESS | 1141 | | MCF_GAS | 620 | | TUBING_PRESS | 916 |
| | Perforation Data: | | Interval Top: | 5242 ft. | # Of Holes: | 124 | | Interval Bottom: | 6921 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 24 |
| Total Gas Produced (MCF) | 18909 |
| GOR | 787875 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.006 |
| Average MCFE per Day | 52.216 |
| Federal Financial Assurance | i | |
|
|
