Wellbore #00 Wellbore Classification: GW Status: PR - 2/28/2013 Measured TD: 7855 ft. Vertical TD: 7560 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/28/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/13/2014 | | Proposed Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1154 FNL 2161 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1154 FNL 2161 FEL | | Proposed Depth/Form: | 7870 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1118 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 352, Top: 0 ft., Bottom: 1118 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7870 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 662, Top: , Bottom: 7870 ft. |
| | |

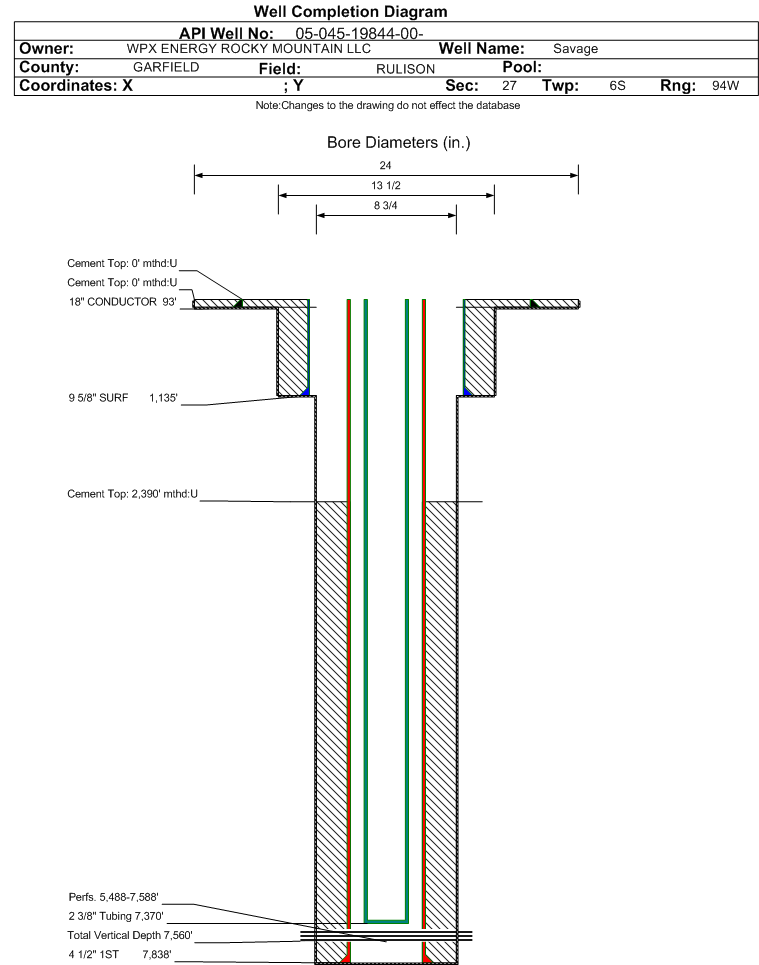

| Wellbore Completed | | Completion Date: | 9/2/2012 | | Spud Date: | 8/24/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7855 ft. | Measured PB depth: | 7800 ft. | | True Vertical TD: | 7560 ft. | True Vertical PB depth: | 7505 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1144 FNL 2153 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1154 FNL 2151 FEL | | Log Types: | RPM CBL and MUDLOGS | | Log Types: | CBL/RPM/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 93 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 93 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1135 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 1135 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7838 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1450, Top: 2390 ft., Bottom: 7838 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1438 ft. | | | | | MESAVERDE | 4020 ft. | | | | | CAMEO | 6760 ft. | | | | | ROLLINS | 7684 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/28/2013 Interval Top: 5488 ft. Interval Bottom: 7588 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/3/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/27/2012 | Treatment End Date: | 1/16/2013 | | Treatment Summary: | 3910 Gals 7 ½% HCL; 926400 # 30/50 Sand; 81400 100/Mesh; 28504 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 28597 | Max pressure during treatment (psi): | 6301 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 93 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 28504 | Total flowback volume recovered (bbls): | 12767 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1007800 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7370 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1082 | | CALC_MCF_GAS | 1663 | | CASING_PRESS | 1906 | | MCF_GAS | 1663 | | TUBING_PRESS | 1747 |
| | Perforation Data: | | Interval Top: | 5488 ft. | # Of Holes: | 154 | | Interval Bottom: | 7588 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 88 |
| Total Gas Produced (MCF) | 37533 |
| GOR | 426511 |
| GOR Determination | MCFE |
| Average BOE per Day | 17.971 |
| Average MCFE per Day | 104.239 |
| Federal Financial Assurance | i | |
|
|
