Wellbore #00 Wellbore Classification: GW Status: PR - 2/26/2013 Measured TD: 8250 ft. Vertical TD: 7544 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/26/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/13/2014 | | Proposed Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1990 FNL 2263 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1990 FNL 2263 FEL | | Proposed Depth/Form: | 8231 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1734 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 575, Top: 0 ft., Bottom: 1734 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8231 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 705, Top: , Bottom: 8231 ft. |
| | |

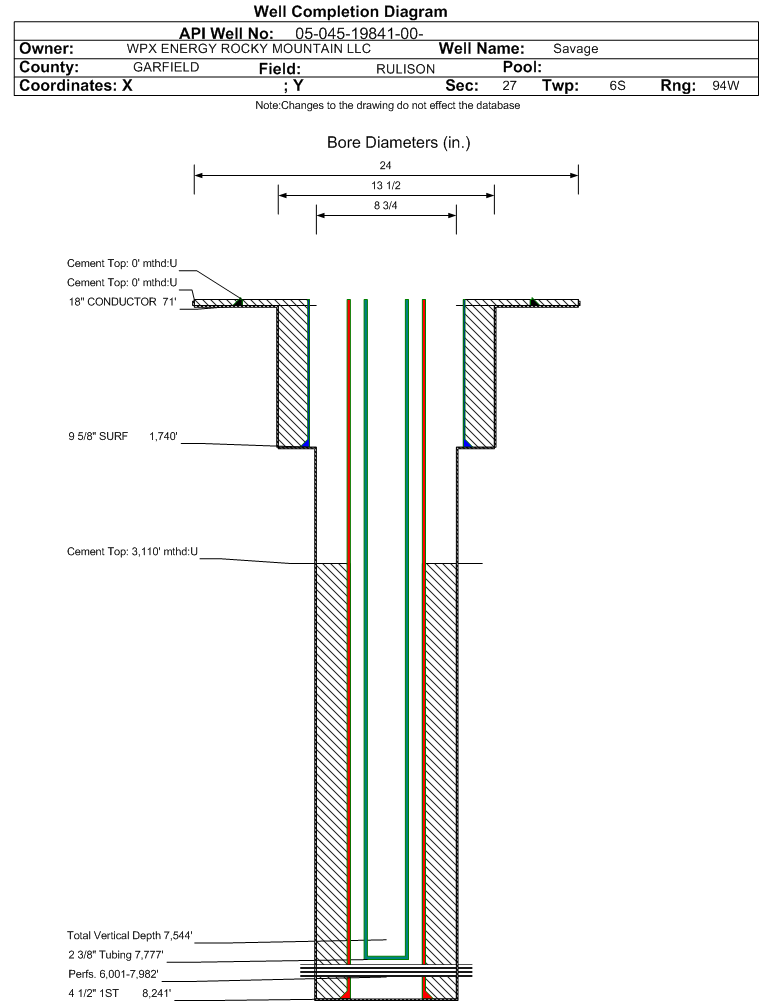

| Wellbore Completed | | Completion Date: | 8/5/2012 | | Spud Date: | 7/27/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8250 ft. | Measured PB depth: | 8200 ft. | | True Vertical TD: | 7544 ft. | True Vertical PB depth: | 7494 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1984 FNL 2256 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1994 FNL 2240 FEL | | Log Types: | RPM CBL and MUDLOGS | | Log Types: | RPM/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 71 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 27, Top: 0 ft., Bottom: 71 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1740 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 432, Top: 0 ft., Bottom: 1740 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8241 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1540, Top: 3110 ft., Bottom: 8241 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1347 ft. | | | | | MESAVERDE | 4379 ft. | | | | | CAMEO | 7208 ft. | | | | | ROLLINS | 8074 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/26/2013 Interval Top: 6001 ft. Interval Bottom: 7982 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/2/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/27/2012 | Treatment End Date: | 1/14/2013 | | Treatment Summary: | 3500 Gals 7 ½% HCL; 769700 # 30/50 Sand; 102000 100/Mesh; 25572 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 25655 | Max pressure during treatment (psi): | 4683 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 83 | Min frac gradient (psi/ft): | 0.74 | | Recycled water used in treatment (bbls): | 25572 | Total flowback volume recovered (bbls): | 18276 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 871700 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7777 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/26/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1050 | | CALC_MCF_GAS | 876 | | CASING_PRESS | 1880 | | MCF_GAS | 876 | | TUBING_PRESS | 1635 |
| | Perforation Data: | | Interval Top: | 6001 ft. | # Of Holes: | 134 | | Interval Bottom: | 7982 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 23315 |
| GOR | 423909 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.159 |
| Average MCFE per Day | 64.749 |
| Federal Financial Assurance | i | |
|
|
