Wellbore #00 Wellbore Classification: GW Status: PR - 9/30/2012 Measured TD: 8320 ft. Vertical TD: 7516 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/30/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/13/2014 | | Proposed Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1988 FNL 2106 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1988 FNL 2106 FWL | | Proposed Depth/Form: | 8341 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1756 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 597, Top: 0 ft., Bottom: 1756 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8341 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 710, Top: , Bottom: 8341 ft. |
| | |

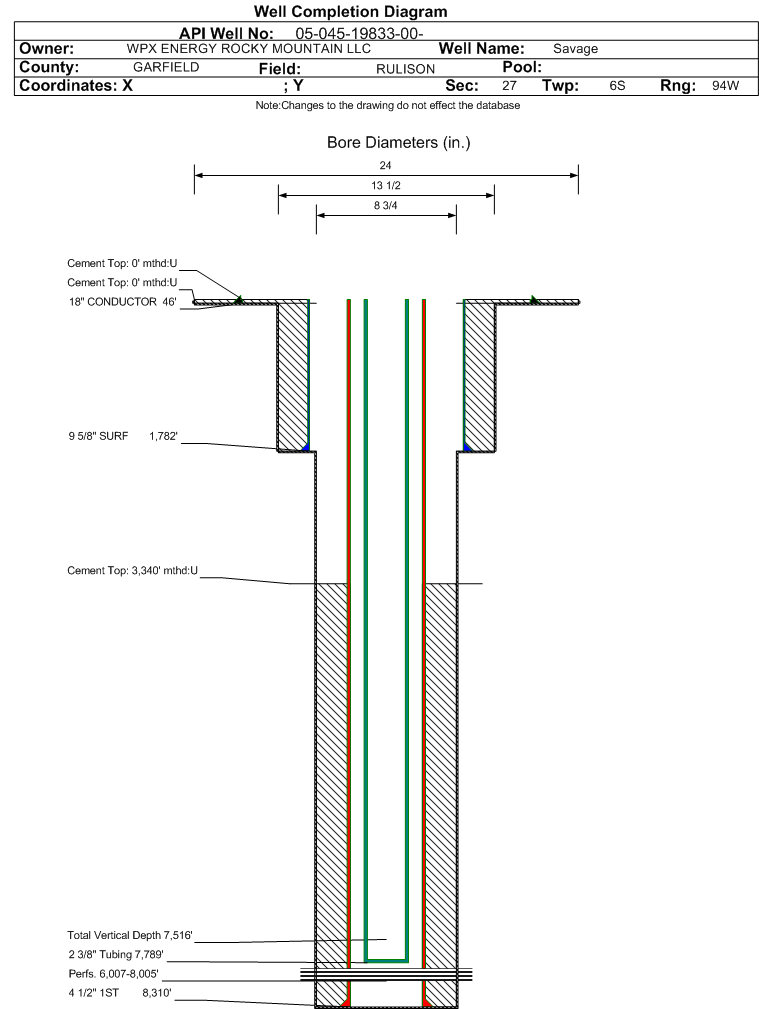

| Wellbore Completed | | Completion Date: | 6/24/2012 | | Spud Date: | 6/16/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8320 ft. | Measured PB depth: | 8187 ft. | | True Vertical TD: | 7516 ft. | True Vertical PB depth: | 7383 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1974 FNL 2066 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 2001 FNL 2071 FWL | | Log Types: | RPM/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 46 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 17, Top: 0 ft., Bottom: 46 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1782 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 1782 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8310 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1325, Top: 3340 ft., Bottom: 8310 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2055 ft. | | | | | MESAVERDE | 4503 ft. | | | | | CAMEO | 7361 ft. | | | | | ROLLINS | 8200 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 9/30/2012 Interval Top: 6007 ft. Interval Bottom: 8005 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/11/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/9/2012 | Treatment End Date: | 8/17/2012 | | Treatment Summary: | 3000 Gals 7 ½% HCL; 799600 # 30/50 Sand; 185900 100/Mesh; 25455 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 25527 | Max pressure during treatment (psi): | 4791 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 71 | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | 25455 | Total flowback volume recovered (bbls): | 17509 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 985500 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7789 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/30/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1102 | | CALC_MCF_GAS | 981 | | CASING_PRESS | 2259 | | MCF_GAS | 981 | | TUBING_PRESS | 1999 |
| | Perforation Data: | | Interval Top: | 6007 ft. | # Of Holes: | 136 | | Interval Bottom: | 8005 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 50 |
| Total Gas Produced (MCF) | 21764 |
| GOR | 435280 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.415 |
| Average MCFE per Day | 60.424 |
| Federal Financial Assurance | i | |
|
|
