Wellbore #00 Wellbore Classification: GW Status: PR - 9/1/2023 Measured TD: 12838 ft. Vertical TD: 12449 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/3/2012 | | Proposed Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 174 FNL 639 FEL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 174 FNL 639 FEL | | Proposed Depth/Form: | 14585 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Big Jimmy Unit | Unit Number: | COC74105X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED | | Cement: | Sacks: 176, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1047, Top: 0 ft., Bottom: 3000 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 14585 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 645, Top: 8925 ft., Bottom: 14585 ft. |
| | |

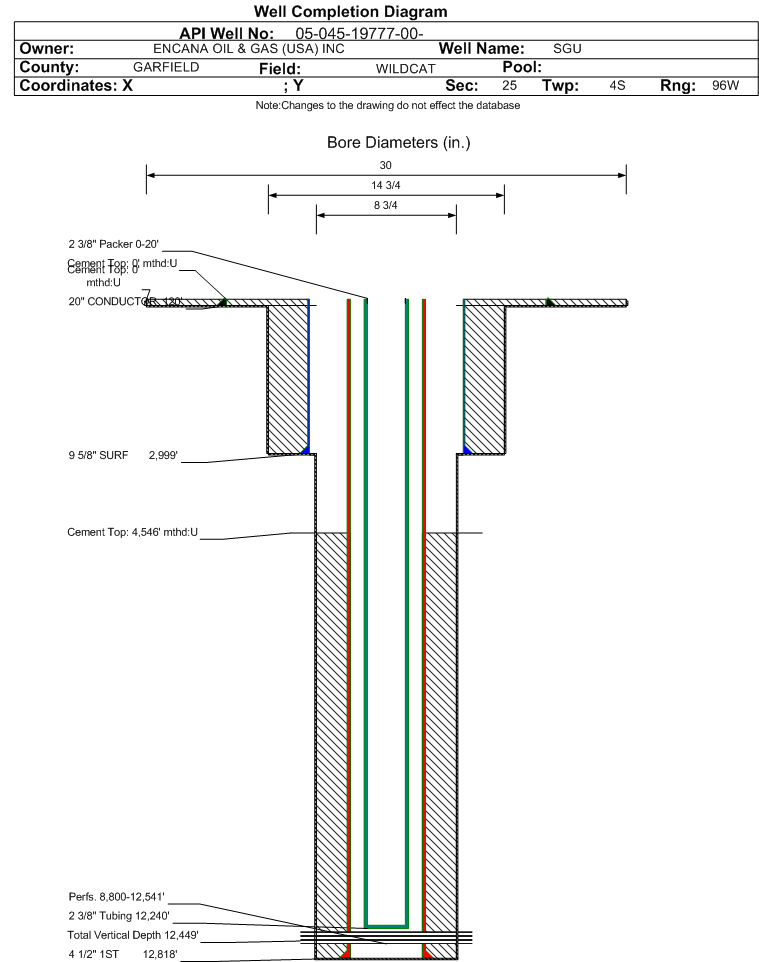

| Wellbore Completed | | Completion Date: | 8/11/2011 | | Spud Date: | 2/13/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 12838 ft. | Measured PB depth: | 12793 ft. | | True Vertical TD: | 12449 ft. | True Vertical PB depth: | 12403 ft. | | Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 208 FNL 1944 FEL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 229 FNL 1950 FEL | | Log Types: | RST, CBL (included in Triple Combo) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 170, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2999 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1127, Top: 0 ft., Bottom: 3027 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12818 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2467, Top: 4546 ft., Bottom: 12838 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 8769 ft. | 12675 ft. | N | N | | ROLLINS | 12676 ft. | 12838 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 9/1/2023 Interval Top: 8800 ft. Interval Bottom: 12541 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/13/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/3/2012 | | Treatment Summary: | Stages 1-14 treated with a total of: 129,116 bbls of Slickwater, 849,303 lbs 100 Sand. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 12240 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/20/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 78 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 78 | | CALC_MCF_GAS | 3201 | | CASING_PRESS | 2862 | | MCF_GAS | 3201 | | TUBING_PRESS | 1022 |
| | Perforation Data: | | Interval Top: | 8800 ft. | # Of Holes: | 450 | | Interval Bottom: | 12541 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 10 |
| Total Gas Produced (MCF) | 2830 |
| GOR | 283000 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.361 |
| Average MCFE per Day | 7.931 |
| Federal Financial Assurance | i | Y |
|
|
