Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2025 Measured TD: 12584 ft. Vertical TD: 12390 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/3/2012 | | Proposed Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 1979 FNL 2004 FEL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 1979 FNL 2004 FEL | | Proposed Depth/Form: | 13843 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Big Jimmy Unit | Unit Number: | COC74105X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED | | Cement: | Sacks: 176, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1047, Top: 0 ft., Bottom: 3000 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 13843 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 645, Top: 8183 ft., Bottom: 13843 ft. |
| | |

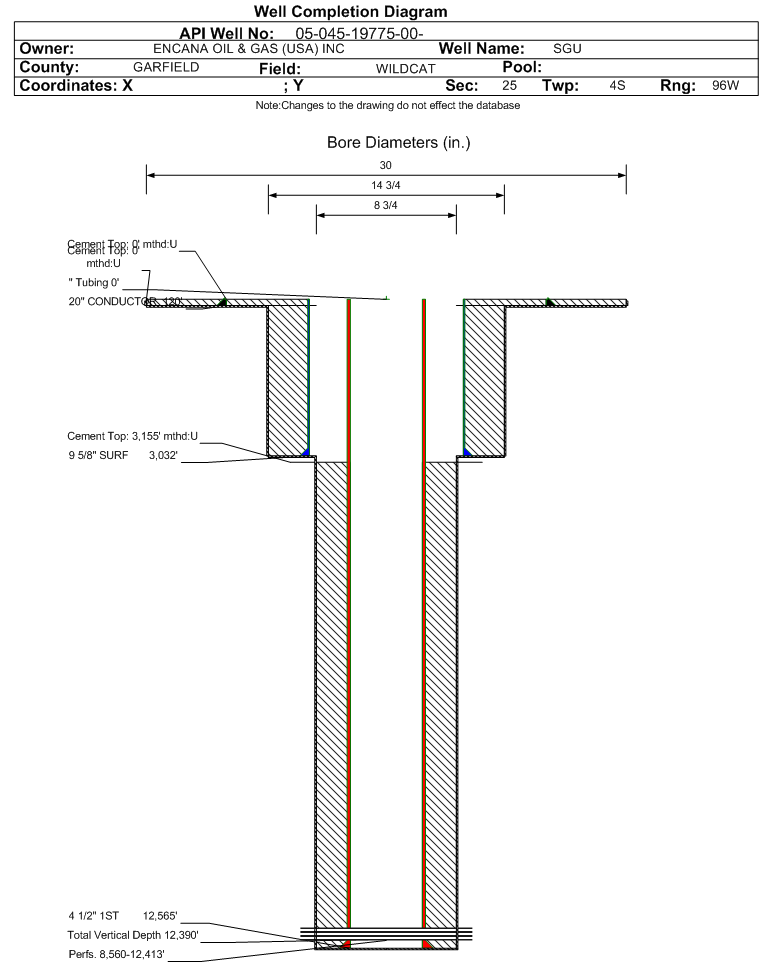

| Wellbore Completed | | Completion Date: | 7/6/2011 | | Spud Date: | 1/28/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 12584 ft. | Measured PB depth: | 12539 ft. | | True Vertical TD: | 12390 ft. | True Vertical PB depth: | 12345 ft. | | Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 1133 FNL 1999 FEL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 1138 FNL 2021 FEL | | Log Types: | RST, CBL (included in Triple Combo) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 170, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3032 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1127, Top: 0 ft., Bottom: 3055 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12565 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2396, Top: 3155 ft., Bottom: 12584 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 8545 ft. | 12446 ft. | N | N | | ROLLINS | 12447 ft. | 12585 ft. | N | N |
Formation WMFK Formation Classification: GW Status: SI - 9/1/2025 Interval Top: 8560 ft. Interval Bottom: 12413 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/4/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/3/2012 | | Treatment Summary: | Stages 1-13 treated with a total of 293,389 bbls of Slickwater. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/11/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 180 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 180 | | CALC_MCF_GAS | 5827 | | CASING_PRESS | 1646 | | MCF_GAS | 5827 |
| | Perforation Data: | | Interval Top: | 8560 ft. | # Of Holes: | 390 | | Interval Bottom: | 12413 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 719 |
| GOR | 719000 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.346 |
| Average MCFE per Day | 1.992 |
| Federal Financial Assurance | i | Y |
|
|
