Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2012 Measured TD: 13130 ft. Vertical TD: 12410 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/3/2012 | | Proposed Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 76 FNL 2114 FWL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 76 FNL 2114 FWL | | Proposed Depth/Form: | 14097 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Big Jimmy Unit | Unit Number: | COC74105X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED | | Cement: | Sacks: 176, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1047, Top: 0 ft., Bottom: 3000 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 14097 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 645, Top: 8437 ft., Bottom: 14097 ft. |
| | |

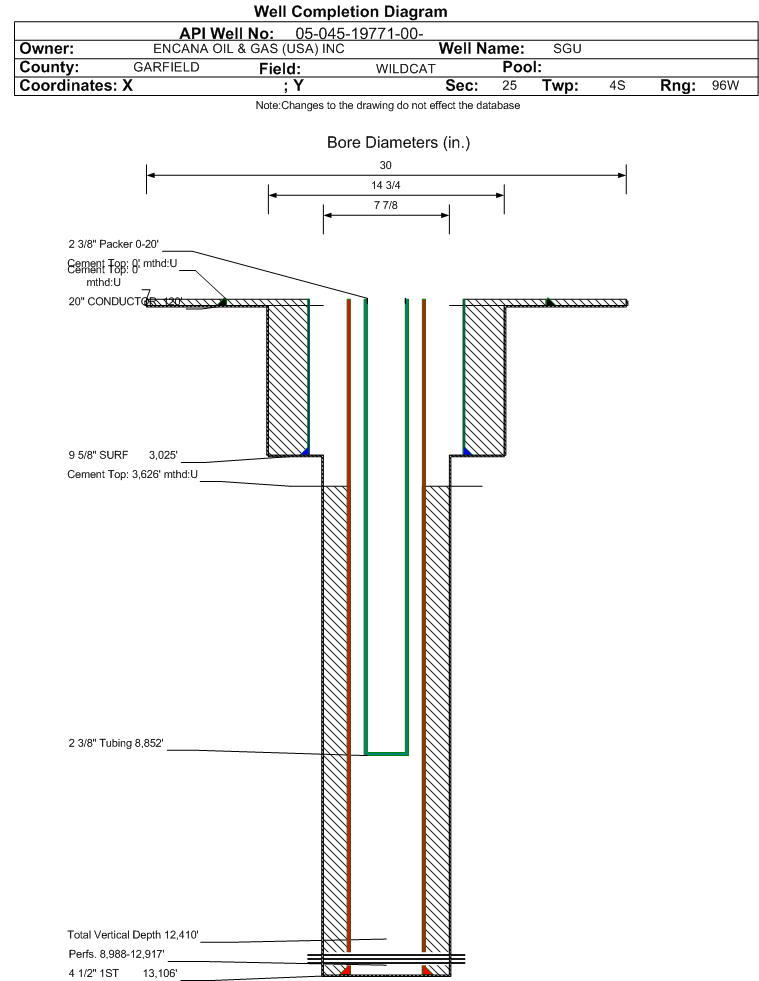

| Wellbore Completed | | Completion Date: | 5/9/2011 | | Spud Date: | 1/15/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 13130 ft. | Measured PB depth: | 13083 ft. | | True Vertical TD: | 12410 ft. | True Vertical PB depth: | 12363 ft. | | Top PZ Location: | Sec:24 Twp: 4S 96W | Footage: 851 FSL 807 FWL | | Bottom Hole Location: | Sec:24 Twp: 4S 96W | Footage: 927 FSL 725 FWL | | Log Types: | CBL and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 207, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3025 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1127, Top: 0 ft., Bottom: 3040 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 13106 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2231, Top: 3626 ft., Bottom: 13130 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 8979 ft. | 12963 ft. | N | N | | ROLLINS | 12964 ft. | 13130 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/1/2012 Interval Top: 8988 ft. Interval Bottom: 12917 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/16/2012 | | Treatment Summary: | Stages 1-13 treated with a total of: 107,350 bbls of Slickwater, 153,142 lbs 20-40 PR600, 553,446 lbs 20-40 Sand. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8852 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 8988 ft. | # Of Holes: | 390 | | Interval Bottom: | 12917 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 126 |
| Total Gas Produced (MCF) | 34019 |
| GOR | 269992 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.381 |
| Average MCFE per Day | 94.996 |
| Federal Financial Assurance | i | Y |
|
|
