Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2021 Measured TD: 12530 ft. Vertical TD: 12368 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/3/2012 | | Proposed Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 2190 FNL 683 FEL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 2190 FNL 683 FEL | | Proposed Depth/Form: | 14234 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Big Jimmy Unit | Unit Number: | COC74105X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED | | Cement: | Sacks: 176, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1047, Top: 0 ft., Bottom: 3000 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 14234 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 645, Top: 8574 ft., Bottom: 14234 ft. |
| | |

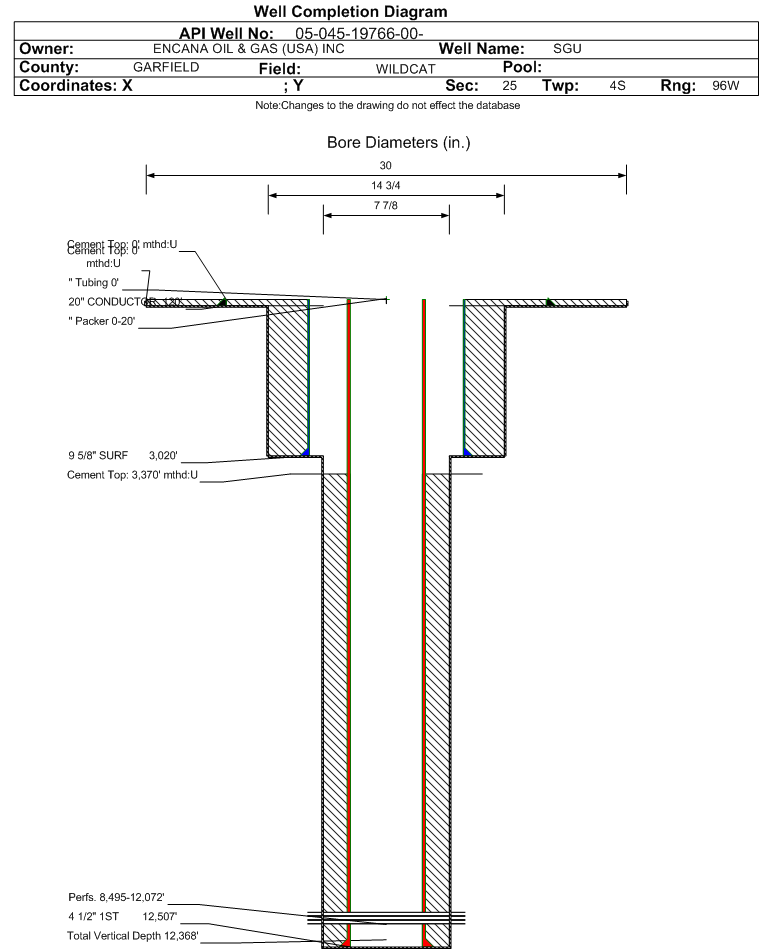

| Wellbore Completed | | Completion Date: | 5/18/2011 | | Spud Date: | 1/18/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 12530 ft. | Measured PB depth: | 12484 ft. | | True Vertical TD: | 12368 ft. | True Vertical PB depth: | 12322 ft. | | Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 1364 FNL 2001 FEL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 1365 FNL 1994 FEL | | Log Types: | RST, CBL (included in Triple Combo) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 207, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3020 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 987, Top: 0 ft., Bottom: 3040 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12507 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2384, Top: 3370 ft., Bottom: 12530 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 8486 ft. | 12399 ft. | N | N | | ROLLINS | 12400 ft. | 12530 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 2/1/2021 Interval Top: 8495 ft. Interval Bottom: 12072 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/30/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/23/2012 | | Treatment Summary: | Stages 1-12 treated with a total of: 125,306 bbls of Slickwater. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/7/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 131 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 131 | | CALC_MCF_GAS | 5897 | | CASING_PRESS | 858 | | MCF_GAS | 5897 |
| | Perforation Data: | | Interval Top: | 8495 ft. | # Of Holes: | 360 | | Interval Bottom: | 12072 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 23 |
| Total Gas Produced (MCF) | 6019 |
| GOR | 261695 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.908 |
| Average MCFE per Day | 16.869 |
| Federal Financial Assurance | i | Y |
|
|
