COGIS - WELL SCOUT CARD

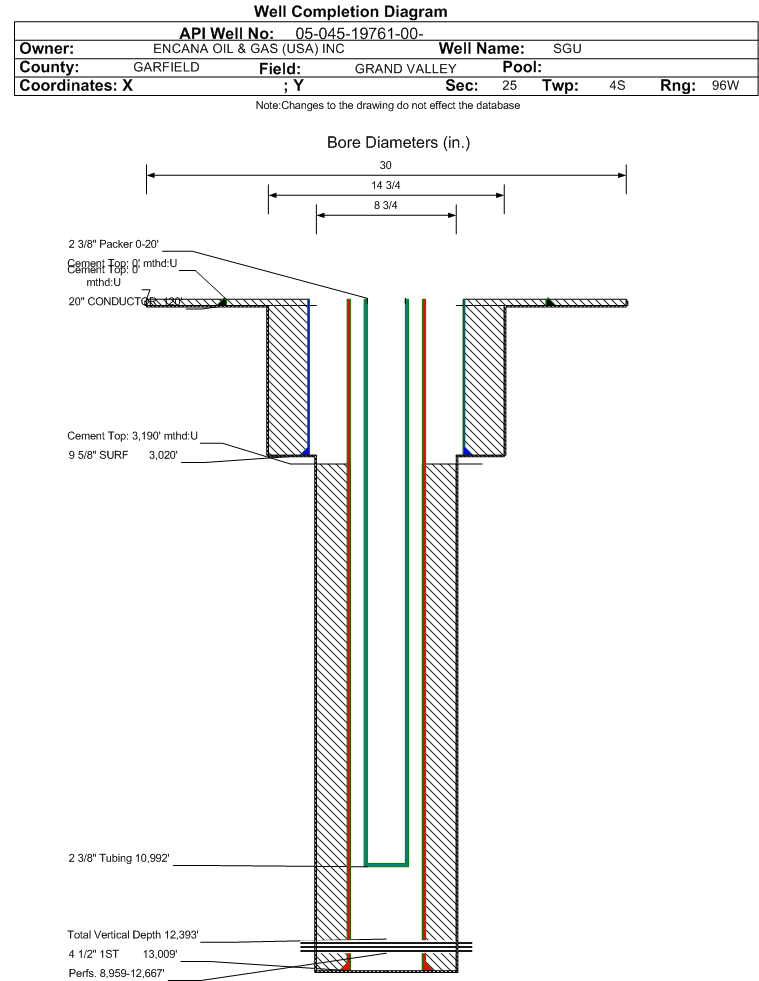

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19761		Well Classification: GW Status: PR - 8/1/2025
Well Name/No:SGU #8513D-24 F25496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC64814
Facility Status:PRStatus Date8/1/2025
FacilityID:418596LocationID:415182
County:GARFIELD #045Location:SENW 25 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8298 ft.
Basin:PICEANCE BASIN
Planned Location:2246FNL  1977 FWLLat/Long: 39.674403 / -108.119514Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.674401 / -108.119537Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 5/17/2012
End Date: 5/17/2012
Reported: 7/9/2012
Days to report: 53
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2025             Measured TD: 13025 ft.    Vertical TD: 12393 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:8/3/2012
Proposed Top PZ Location:Sec:24 Twp: 4S 96W Footage: 268 FSL  2082 FWL
Bottom Hole Location:Sec:24 Twp: 4S 96W Footage: 268 FSL  2082 FWL
Proposed Depth/Form:14203 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:Big Jimmy Unit Unit Number:COC74105X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED
Cement:Sacks: 176, Top: 0 ft., Bottom: 120 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 1047, Top: 0 ft., Bottom: 3000 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 14203 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 645, Top: 8543 ft., Bottom: 14203 ft.
Wellbore Completed
Completion Date:4/28/2011
Spud Date:1/11/2012Spud Date Is:ACTUAL
Measured TD:13025 ft.Measured PB depth:12985 ft.
True Vertical TD:12393 ft.True Vertical PB depth:12353 ft.
Top PZ Location:Sec:24 Twp: 4S 96WFootage: 671 FSL  746 FWL
Bottom Hole Location:Sec:24 Twp: 4S 96WFootage: 703 FSL  724 FWL
Log Types:RST, CBL (included in Triple Combo) and Mud.
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3020 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 987, Top: 0 ft., Bottom: 3040 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 13009 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 2451, Top: 3190 ft., Bottom: 13025 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK8946 ft.12868 ft.NN
ROLLINS12869 ft.13025 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/1/2025                  Interval Top: 8959 ft.    Interval Bottom: 12667 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/31/2012Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/17/2012
Treatment Summary:Stages 1-13 treated with a total of : 256,154 bbls of Slickwater, 1,752,097 lb s 100 Sand.
Tubing Size:2.375 in.Tubing Setting Depth:10992 ft.
Tubing Packer Depth:0 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/8/2012Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 93
BTU_GAS 1170
CALC_BBLS_H2O 93
CALC_MCF_GAS 3291
CASING_PRESS 2956
MCF_GAS 3291
TUBING_PRESS 1049
Perforation Data:
Interval Top:8959 ft.# Of Holes:390
Interval Bottom:12667 ft.Hole Size:0.42 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)720
GOR240000
GOR DeterminationMCFE
Average BOE per Day0.345
Average MCFE per Day2.021

 Federal Financial Assurance  i Y

 Tribal Well  i No
