Wellbore #00 Wellbore Classification: GW Status: PR - 9/21/2011 Measured TD: 7500 ft. Vertical TD: 7071 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/21/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/20/2012 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 142 FSL 503 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 142 FSL 503 FEL | | Proposed Depth/Form: | 7482 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-12 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 969 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 340, Top: 0 ft., Bottom: 969 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7482 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 560, Top: , Bottom: 7482 ft. |
| | |
| Wellbore Completed | | Completion Date: | 4/14/2011 | | Spud Date: | 4/7/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7500 ft. | Measured PB depth: | 7255 ft. | | True Vertical TD: | 7071 ft. | True Vertical PB depth: | 6832 ft. | | Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 162 FSL 492 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 141 FSL 499 FEL | | Log Types: | CBL AND RPM

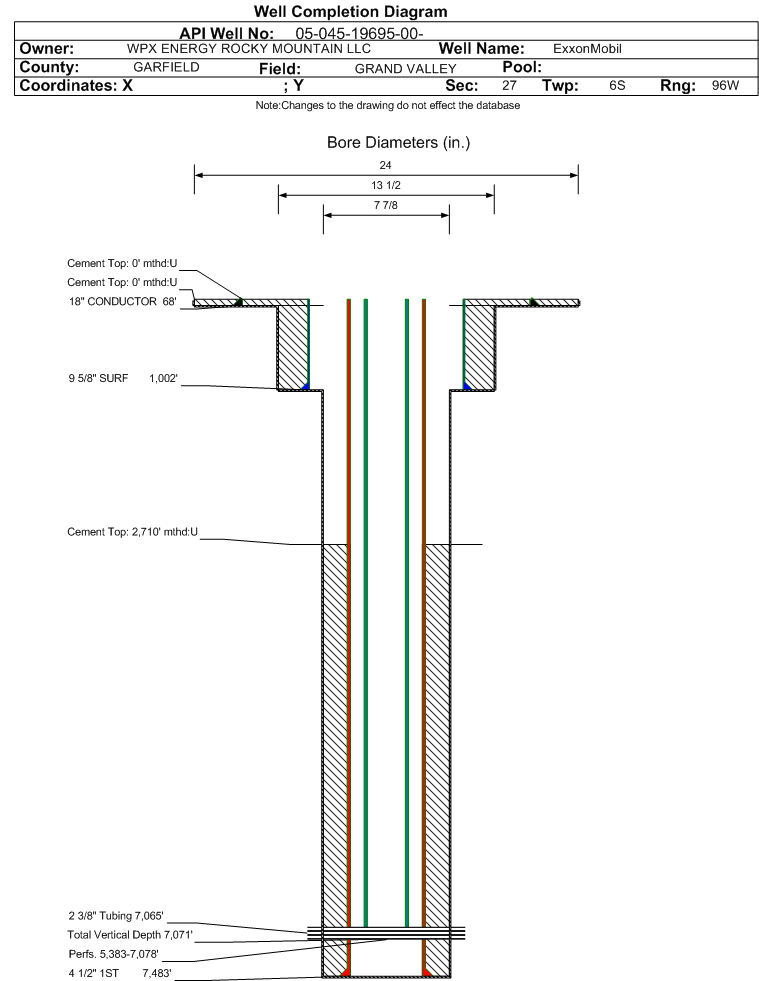

Mud | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 68 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 26, Top: 0 ft., Bottom: 68 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1002 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 1002 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7483 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 2710 ft., Bottom: 7483 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2304 ft. | | | | | MESAVERDE | 4245 ft. | | | | | CAMEO | 6776 ft. | | | | | ROLLINS | 7384 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 8/31/2011 Interval Top: 5383 ft. Interval Bottom: 7078 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/17/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/7/2011 | | Treatment Summary: | 950200# 40/70 SAND; 25101 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7065 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2011 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1054 | | CASING_PRESS | 1605 | | MCF_GAS | 1167 | | TUBING_PRESS | 884 |
| | Perforation Data: | | Interval Top: | 5383 ft. | # Of Holes: | 147 | | Interval Bottom: | 7078 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 70 |
| Total Gas Produced (MCF) | 34554 |
| GOR | 493628 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.513 |
| Average MCFE per Day | 95.796 |
| Federal Financial Assurance | i | Y |
|
|
