Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2019 Measured TD: 8220 ft. Vertical TD: 7094 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/28/2012 | | Proposed Top PZ Location: | Sec:26 Twp: 6S 96W | Footage: 570 FSL 1153 FWL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 570 FSL 1153 FWL | | Proposed Depth/Form: | 7899 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-12 , Unit Acreage: 320, Drill Unit: W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1199 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 1199 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7899 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 570, Top: , Bottom: 7899 ft. |
| | |

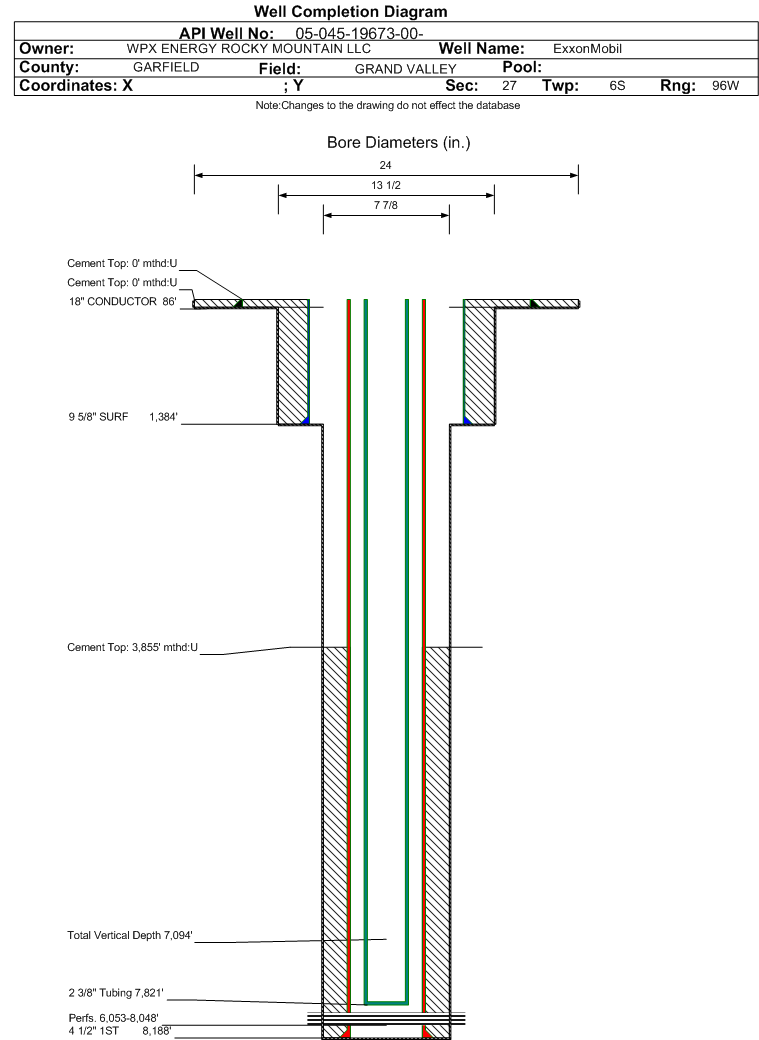

| Wellbore Completed | | Completion Date: | 3/3/2011 | | Spud Date: | 2/24/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8220 ft. | Measured PB depth: | 8156 ft. | | True Vertical TD: | 7094 ft. | True Vertical PB depth: | 7030 ft. | | Top PZ Location: | Sec:26 Twp: 6S 96W | Footage: 488 FSL 1500 FWL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 480 FSL 1505 FWL | | Log Types: | RPM AND CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 86 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 86 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1384 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 1384 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8188 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 845, Top: 3855 ft., Bottom: 8188 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2650 ft. | | | | | MESAVERDE | 4986 ft. | | | | | CAMEO | 7455 ft. | | | | | ROLLINS | 8076 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 12/1/2019 Interval Top: 6053 ft. Interval Bottom: 8048 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/13/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/7/2011 | | Treatment Summary: | 1187100# 30/50 SAND AND 5904 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7821 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/12/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1100 | | CASING_PRESS | 1025 | | MCF_GAS | 1093 | | TUBING_PRESS | 666 |
| | Perforation Data: | | Interval Top: | 6053 ft. | # Of Holes: | 166 | | Interval Bottom: | 8048 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 19 |
| Total Gas Produced (MCF) | 7760 |
| GOR | 408421 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.715 |
| Average MCFE per Day | 21.569 |
| Federal Financial Assurance | i | Y |
|
|
