Wellbore #00 Wellbore Classification: GW Status: PR - 10/18/2011 Measured TD: 7350 ft. Vertical TD: 7114 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/18/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/28/2012 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 774 FSL 438 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 774 FSL 438 FEL | | Proposed Depth/Form: | 7304 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-12 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 980 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 345, Top: 0 ft., Bottom: 980 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7304 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 560, Top: , Bottom: 7304 ft. |
| | |

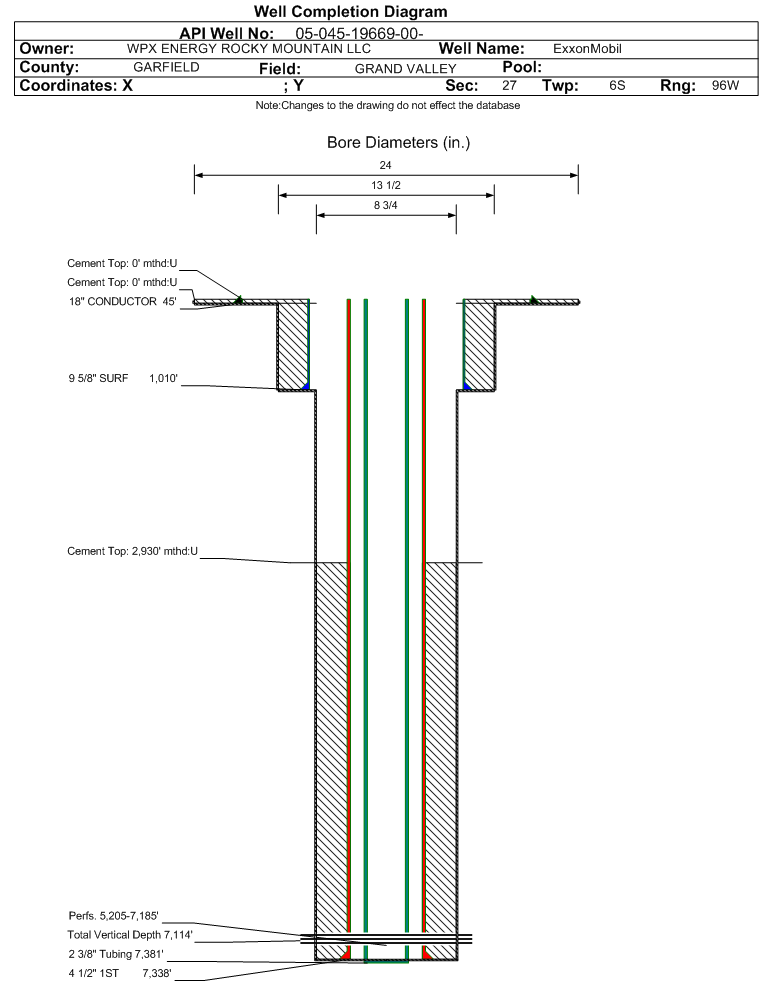

| Wellbore Completed | | Completion Date: | 3/17/2011 | | Spud Date: | 3/10/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7350 ft. | Measured PB depth: | 7306 ft. | | True Vertical TD: | 7114 ft. | True Vertical PB depth: | 7070 ft. | | Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 790 FSL 433 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 787 FSL 433 FEL | | Log Types: | DIL/GR/SP/AND CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 15, Top: 0 ft., Bottom: 45 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1010 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1010 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7338 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 815, Top: 2930 ft., Bottom: 7338 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2313 ft. | | | | | MESAVERDE | 4078 ft. | | | | | CAMEO | 6609 ft. | | | | | ROLLINS | 7217 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 10/18/2011 Interval Top: 5205 ft. Interval Bottom: 7185 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/23/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/7/2011 | | Treatment Summary: | 961300# 30/50 SAND; 25184 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7381 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/18/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1040 | | CASING_PRESS | 1035 | | MCF_GAS | 967 | | TUBING_PRESS | 652 |
| | Perforation Data: | | Interval Top: | 5205 ft. | # Of Holes: | 156 | | Interval Bottom: | 7185 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7 |
| Total Gas Produced (MCF) | 3736 |
| GOR | 533714 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.783 |
| Average MCFE per Day | 10.349 |
| Federal Financial Assurance | i | Y |
|
|
