Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 7157 ft. Vertical TD: 7150 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/28/2012 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 2006 FSL 1113 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 2006 FSL 1113 FEL | | Proposed Depth/Form: | 7091 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-13 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 709 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 247, Top: 0 ft., Bottom: 709 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7091 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 556, Top: , Bottom: 7091 ft. |
| | |
| Wellbore Completed | | Completion Date: | 1/8/2011 | | Spud Date: | 12/30/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7157 ft. | Measured PB depth: | 7114 ft. | | True Vertical TD: | 7150 ft. | True Vertical PB depth: | 7107 ft. | | Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 2021 FSL 1104 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 2022 FSL 1100 FEL | | Log Types: | CBL AND RESERVOIR PERFORMANCE MONITOR (RPM)

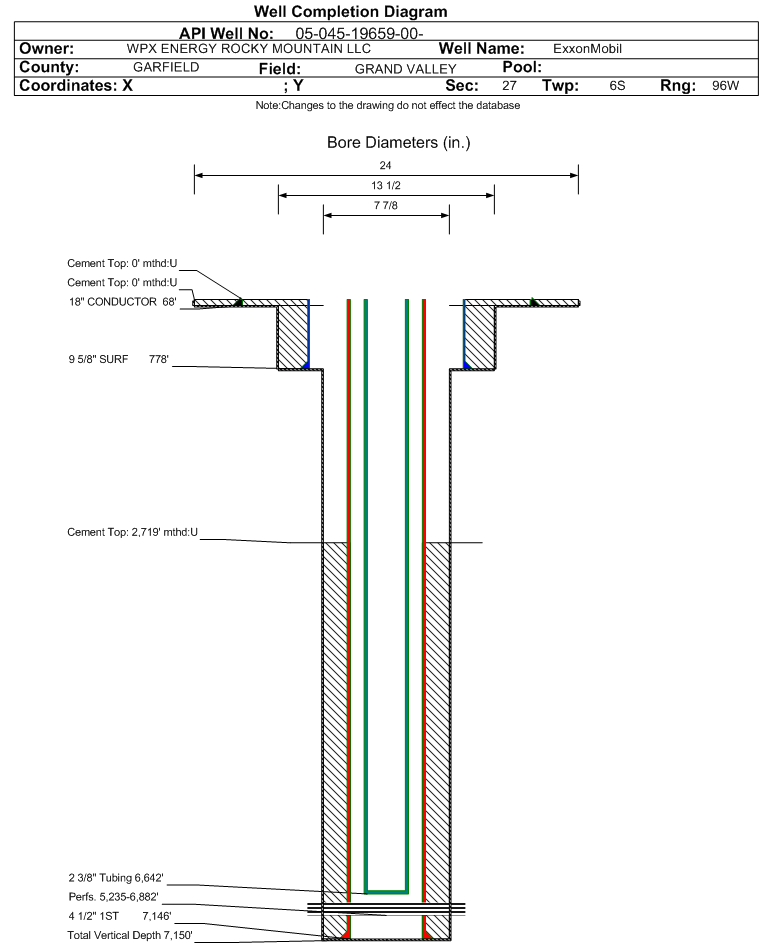

Mud | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 68 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 68 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 778 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 0 ft., Bottom: 778 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7146 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 805, Top: 2719 ft., Bottom: 7146 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2114 ft. | | | | | MESAVERDE | 3868 ft. | | | | | CAMEO | 6468 ft. | | | | | ROLLINS | 7008 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 6/30/2011 Interval Top: 5235 ft. Interval Bottom: 6882 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/15/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/12/2011 | | Treatment Summary: | 3510 GALS 7 1/2% HCL; 504 GALS 10% HCL; 960300# 30/50 SAND; 28873 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6642 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/30/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1082 | | CASING_PRESS | 1410 | | MCF_GAS | 1029 | | TUBING_PRESS | 1233 |
| | Perforation Data: | | Interval Top: | 5235 ft. | # Of Holes: | 124 | | Interval Bottom: | 6882 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 32 |
| Total Gas Produced (MCF) | 15438 |
| GOR | 482437 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.383 |
| Average MCFE per Day | 42.817 |
| Federal Financial Assurance | i | |
|
|
