COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19625		Well Classification: GW Status: PR - 3/30/2011
Well Name/No:GGU Swanson #32B-29-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/30/2011
FacilityID:417808LocationID:417787
County:GARFIELD #045Location:NWSE 29 6S91W 6
Field:MAMM CREEK - #52500Elevation:6031 ft.
Basin:PICEANCE BASIN
Planned Location:1858FSL  2183 FELLat/Long: 39.496735 / -107.576147Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.496734 / -107.576146Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/30/2011             Measured TD: 7550 ft.    Vertical TD: 7296 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/30/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/16/2012
Proposed Top PZ Location:Sec:29 Twp: 6s 91w Footage: 2159 FNL  2001 FEL
Bottom Hole Location:Sec:29 Twp: 6S 91W Footage: 2165 FNL  1994 FEL
Proposed Depth/Form:7519 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEDERAL
Unit:Gibson Gulch Unit Number:COC-052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-65 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42# , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 760 ft., Weight: 36# , Citings Type: PLANNED
Cement:Sacks: 240, Top: 0 ft., Bottom: 760 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 7519 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 520, Top: , Bottom: 7519 ft.
Wellbore Completed
Completion Date:11/28/2010
Spud Date:9/8/2010Spud Date Is:ACTUAL
Measured TD:7550 ft.Measured PB depth:7490 ft.
True Vertical TD:7296 ft.True Vertical PB depth:7236 ft.
Top PZ Location:Sec:29 Twp: 6s 91wFootage: 2159 FNL  2001 FEL
Bottom Hole Location:Sec:29 Twp: 6S 91WFootage: 2165 FNL  1994 FEL
Log Types:
Log Types:previously submitted mud log, CBL, Temp

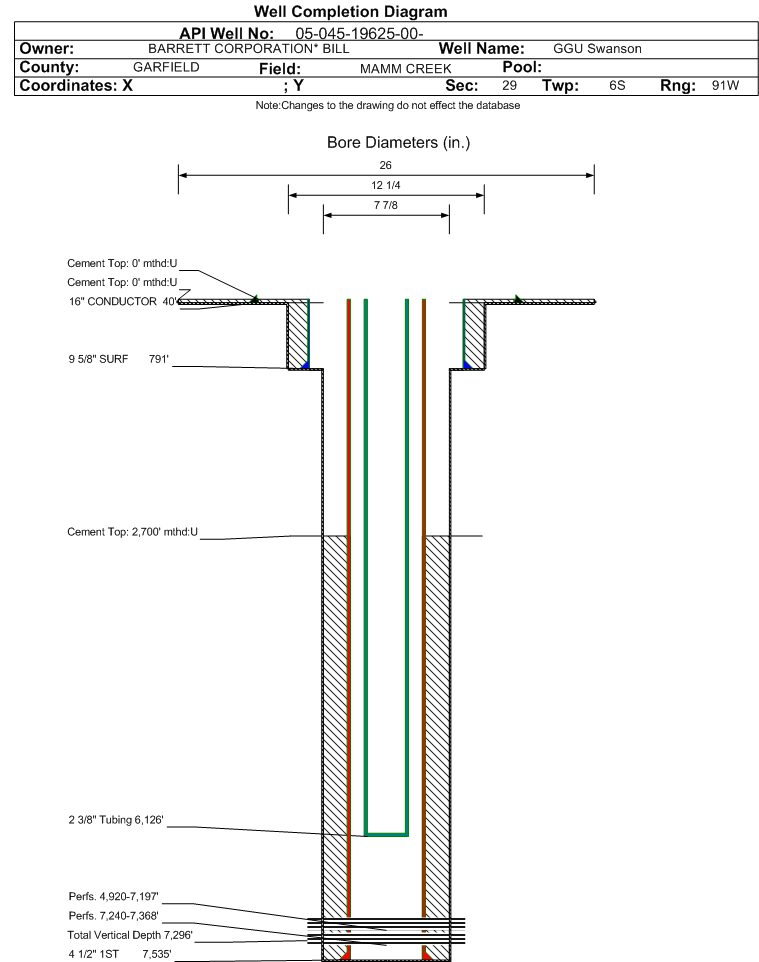

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 791 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 810 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7535 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1015, Top: 2700 ft., Bottom: 7550 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3582 ft.
ROLLINS7235 ft.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 3/8/2011                  Interval Top: 7240 ft.    Interval Bottom: 7368 ft.

 Completed Information for Formation ROLLINS
1st Production Date:2/18/2011Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/11/2011
Treatment Summary:Treated with Williams Fork, see Williams Fork treament
Tubing Size:2.375 in.Tubing Setting Depth:6126 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1158
CALC_MCF_GAS 75
CASING_PRESS 1430
GRAVITY_OIL 60
MCF_GAS 75
TUBING_PRESS 1160
Perforation Data:
Interval Top:7240 ft.# Of Holes:22
Interval Bottom:7368 ft.Hole Size:0.3 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/8/2011                  Interval Top: 4920 ft.    Interval Bottom: 7197 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/18/2011Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/11/2011
Treatment Summary:150,400 lbs CRC sand, 1,369,676 lbs White sand, 71,073 bbls slick water
Tubing Size:2.375 in.Tubing Setting Depth:6126 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 90
BBLS_OIL 16
BTU_GAS 1158
CALC_BBLS_H2O 90
CALC_BBLS_OIL 16
CALC_GOR 88813
CALC_MCF_GAS 1421
CASING_PRESS 1430
GRAVITY_OIL 60
MCF_GAS 1421
TUBING_PRESS 1160
Perforation Data:
Interval Top:4920 ft.# Of Holes:210
Interval Bottom:7197 ft.Hole Size:0.3 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)213
Total Gas Produced (MCF)17801
GOR83572
GOR DeterminationMCFE
Average BOE per Day8.997
Average MCFE per Day52.192

 Federal Financial Assurance  i

 Tribal Well  i No
