Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2011 Measured TD: 7600 ft. Vertical TD: 7316 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/16/2012 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 91W | Footage: 2064 FSL 664 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 91W | Footage: 2064 FSL 664 FEL | | Proposed Depth/Form: | 7621 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Gibson Gulch | Unit Number: | COC-052447X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-9 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-65 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42# , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 800 ft., Weight: 36# , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 800 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 7621 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 510, Top: , Bottom: 7621 ft. |
| | |

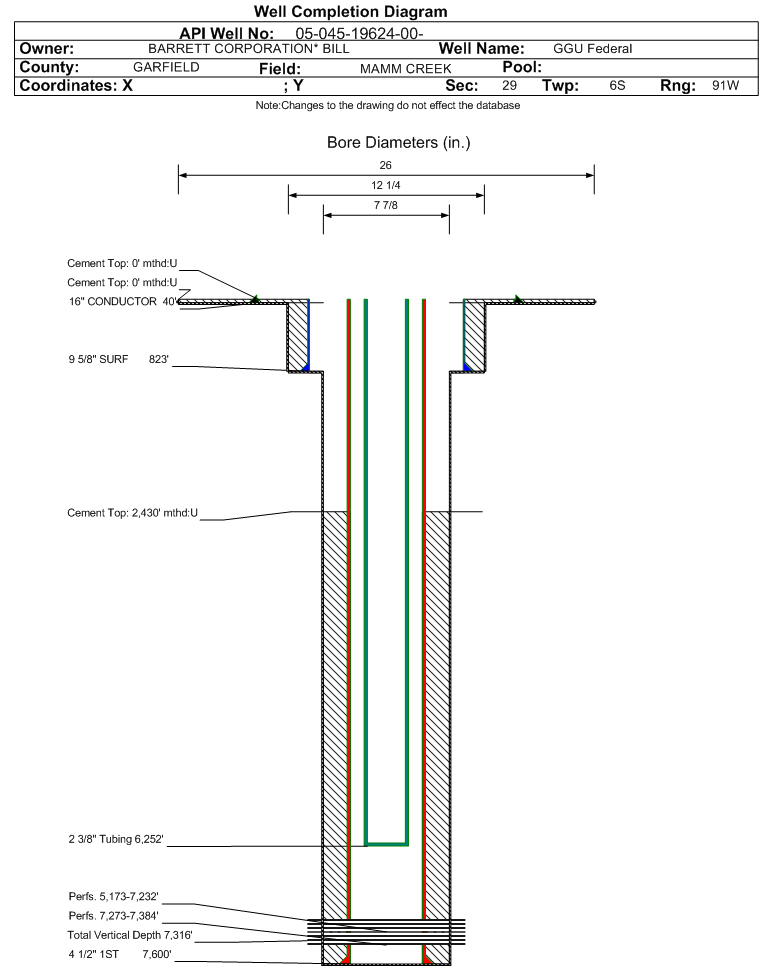

| Wellbore Completed | | Completion Date: | 10/10/2010 | | Spud Date: | 8/29/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7600 ft. | Measured PB depth: | 7556 ft. | | True Vertical TD: | 7316 ft. | True Vertical PB depth: | 7272 ft. | | Top PZ Location: | Sec:29 Twp: 6S 91W | Footage: 2096 FSL 667 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 91W | Footage: 2084 FSL 684 FEL | | Log Types: | | | Log Types: | previously submitted: CBL, Mud, Temp, Caliper, Neutron/Density, Triple Combo, Induction | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 823 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 840 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7600 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1037, Top: 2430 ft., Bottom: 7600 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3633 ft. | | | | | ROLLINS | 7266 ft. | | | |
Formation RLNS Formation Classification: GW Status: PR - 2/10/2011 Interval Top: 7273 ft. Interval Bottom: 7384 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 2/3/2011 | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/23/2011 | | Treatment Summary: | Treated with Williams Fork, see Williams Fork treatment |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6252 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/10/2011 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1143 | | CALC_MCF_GAS | 76 | | CASING_PRESS | 1015 | | MCF_GAS | 76 | | TUBING_PRESS | 830 |
| | Perforation Data: | | Interval Top: | 7273 ft. | # Of Holes: | 14 | | Interval Bottom: | 7384 ft. | Hole Size: | 0.3 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 2/10/2011 Interval Top: 5173 ft. Interval Bottom: 7232 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 2/3/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/23/2011 | | Treatment Summary: | 181,600 Lbs CRC Sand, 1,511,499 lbs White sand, 77,900 bbls slick water |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6252 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/10/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 164 | | BBLS_OIL | 21 | | BTU_GAS | 1143 | | CALC_BBLS_H2O | 164 | | CALC_BBLS_OIL | 21 | | CALC_GOR | 68524 | | CALC_MCF_GAS | 1439 | | CASING_PRESS | 1015 | | GRAVITY_OIL | 60 | | MCF_GAS | 1439 | | TUBING_PRESS | 830 |
| | Perforation Data: | | Interval Top: | 5173 ft. | # Of Holes: | 196 | | Interval Bottom: | 7232 ft. | Hole Size: | 0.3 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 174 |
| Total Gas Produced (MCF) | 14671 |
| GOR | 84316 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.407 |
| Average MCFE per Day | 42.949 |
| Federal Financial Assurance | i | Y |
|
|
