Wellbore #00 Wellbore Classification: GW Status: PR - 10/11/2011 Measured TD: 7774 ft. Vertical TD: 7464 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/11/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/6/2012 | | Proposed Top PZ Location: | Sec:30 Twp: 6S 91W | Footage: 180 FNL 635 FWL | | Bottom Hole Location: | Sec:30 Twp: 6S 91W | Footage: 180 FNL 635 FWL | | Proposed Depth/Form: | 7635 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH | Unit Number: | COC052447X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-65 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 800 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 7635 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 580, Top: , Bottom: 7635 ft. |
| | |

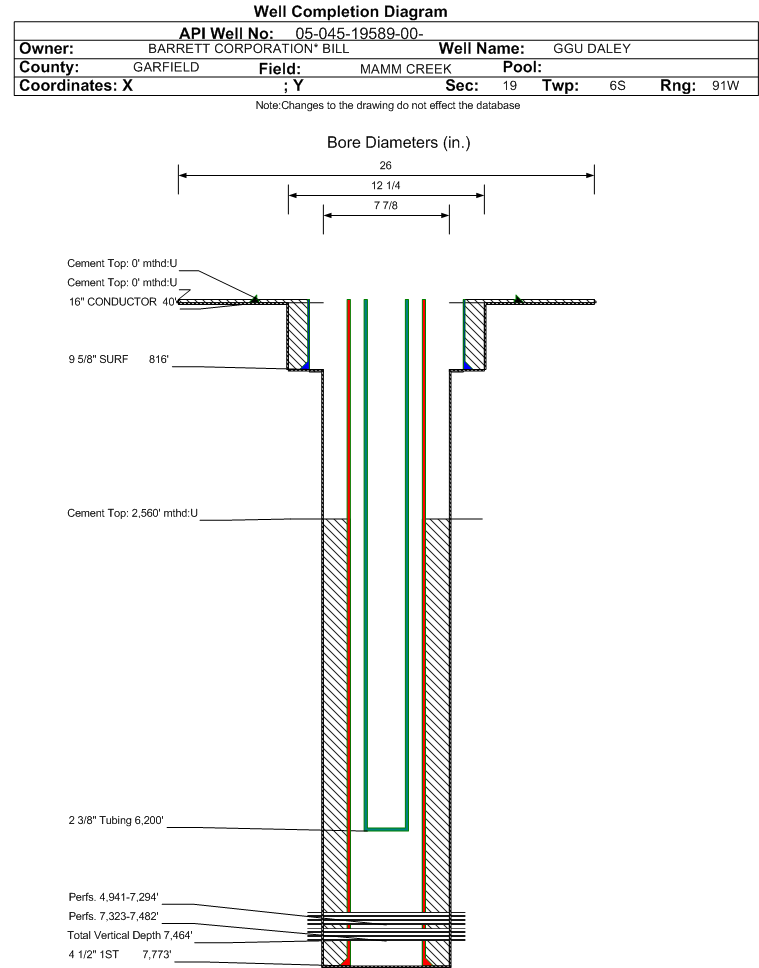

| Wellbore Completed | | Completion Date: | 4/30/2011 | | Spud Date: | 3/17/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7774 ft. | Measured PB depth: | 7729 ft. | | True Vertical TD: | 7464 ft. | True Vertical PB depth: | 7419 ft. | | Top PZ Location: | Sec:30 Twp: 6S 91W | Footage: 207 FNL 642 FWL | | Bottom Hole Location: | Sec:30 Twp: 6S 91W | Footage: 219 FNL 657 FWL | | Log Types: | | | Log Types: | CBL, Caliper, Triple Combo, Temperature, Mud | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 816 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 845 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7773 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1020, Top: 2560 ft., Bottom: 7774 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3660 ft. | | | | | ROLLINS | 7318 ft. | | | |
Formation RLNS Formation Classification: GW Status: PR - 10/11/2011 Interval Top: 7323 ft. Interval Bottom: 7482 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 9/26/2011 | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/14/2011 | | Treatment Summary: | Treated with Williams Fork. See Williams Fork Treatment Summary. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6200 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/11/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1162 | | CALC_MCF_GAS | 74 | | CASING_PRESS | 1575 | | GRAVITY_OIL | 52 | | MCF_GAS | 74 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 7323 ft. | # Of Holes: | 12 | | Interval Bottom: | 7482 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 10/11/2011 Interval Top: 4941 ft. Interval Bottom: 7294 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/26/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/14/2011 | | Treatment Summary: | 1,272,936 lbs White Sand, 142,000 lbs CRC Sand, 67,513 BBLS Slickwater |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6200 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/11/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 131 | | BBLS_OIL | 24 | | BTU_GAS | 1162 | | CALC_BBLS_H2O | 131 | | CALC_BBLS_OIL | 24 | | CALC_GOR | 48621 | | CALC_MCF_GAS | 1410 | | CASING_PRESS | 1575 | | GRAVITY_OIL | 52 | | MCF_GAS | 1410 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 4941 ft. | # Of Holes: | 164 | | Interval Bottom: | 7294 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 283 |
| Total Gas Produced (MCF) | 20464 |
| GOR | 72310 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.442 |
| Average MCFE per Day | 60.579 |
| Federal Financial Assurance | i | |
|
|
