COGIS - WELL SCOUT CARD

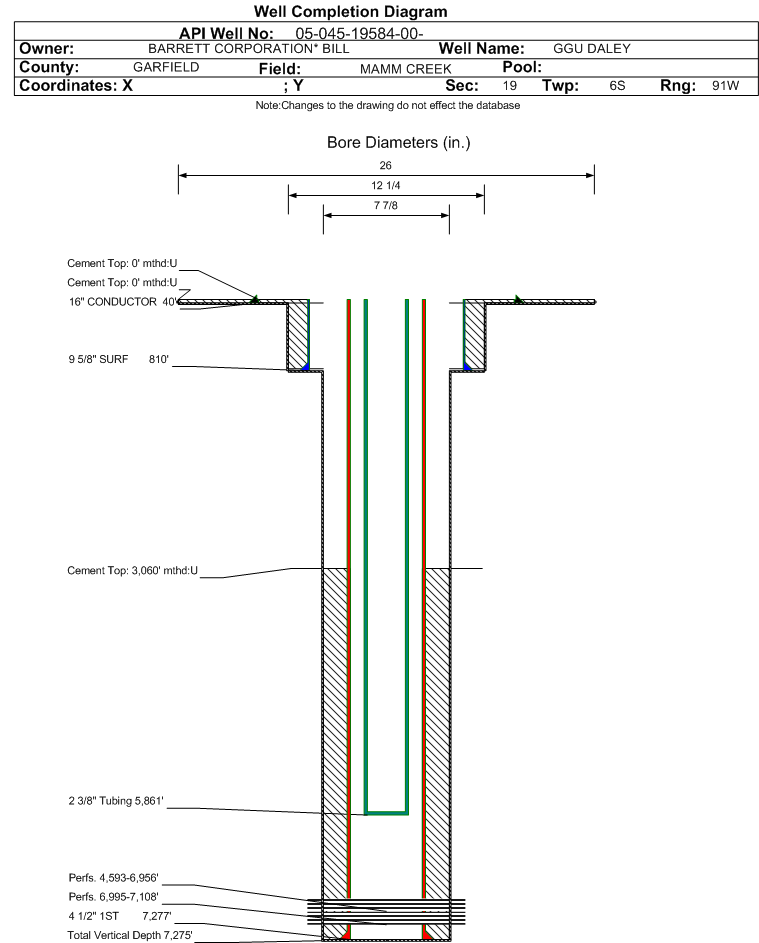

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19584		Well Classification: GW Status: PR - 10/17/2011
Well Name/No:GGU DALEY #24A-19-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/17/2011
FacilityID:417638LocationID:417608
County:GARFIELD #045Location:SESW 19 6S91W 6
Field:MAMM CREEK - #52500Elevation:5823 ft.
Basin:PICEANCE BASIN
Planned Location:252FSL  2008 FWLLat/Long: 39.506441 / -107.599028Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.506441 / -107.599028Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/17/2011             Measured TD: 7279 ft.    Vertical TD: 7275 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/17/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/3/2012
Proposed Top PZ Location:Sec:19 Twp: 6S 91W Footage: 169 FSL  1991 FWL
Bottom Hole Location:Sec:19 Twp: 6S 91W Footage: 161 FSL  1989 FWL
Proposed Depth/Form:7268 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:COC052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-65 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 760 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 240, Top: 0 ft., Bottom: 760 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 7268 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 590, Top: , Bottom: 7268 ft.
Wellbore Completed
Completion Date:4/24/2011
Spud Date:3/18/2011Spud Date Is:ACTUAL
Measured TD:7279 ft.Measured PB depth:7233 ft.
True Vertical TD:7275 ft.True Vertical PB depth:7221 ft.
Top PZ Location:Sec:19 Twp: 6S 91WFootage: 169 FSL  1991 FWL
Bottom Hole Location:Sec:19 Twp: 6S 91WFootage: 161 FSL  1989 FWL
Log Types:
Log Types:CBL, Caliper, Triple Combo, Temperature
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 65 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 810 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 788 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7277 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 3060 ft., Bottom: 7279 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3410 ft.
ROLLINS6985 ft.

Formation RLNS                     Formation Classification:                       Status:  PR - 9/13/2011                 Interval Top: 6995 ft.    Interval Bottom: 7108 ft.

 Completed Information for Formation ROLLINS
1st Production Date:9/1/2011Choke Size:24.000 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/19/2011
Treatment Summary:Treated with Williams Fork. See Williams Fork Treatment Summary.
Tubing Size:2.375 in.Tubing Setting Depth:5861 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/13/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CALC_MCF_GAS 74
CASING_PRESS 1500
GRAVITY_OIL 52
MCF_GAS 74
TUBING_PRESS 1250
Perforation Data:
Interval Top:6995 ft.# Of Holes:10
Interval Bottom:7108 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:                       Status:  PR - 9/13/2011                 Interval Top: 4593 ft.    Interval Bottom: 6956 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:9/1/2011Choke Size:24.000 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/19/2011
Treatment Summary:1,397,828 lbs White Sand, 154,800 lbs CRC Sand, 73,423 BBLS Slickwater
Tubing Size:2.375 in.Tubing Setting Depth:5861 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/13/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 278
BBLS_OIL 23
BTU_GAS 1170
CALC_BBLS_H2O 279
CALC_BBLS_OIL 23
CALC_GOR 61043
CALC_MCF_GAS 1404
CASING_PRESS 1500
GRAVITY_OIL 52
MCF_GAS 1404
TUBING_PRESS 1250
Perforation Data:
Interval Top:4593 ft.# Of Holes:190
Interval Bottom:6956 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)474
Total Gas Produced (MCF)34344
GOR72455
GOR DeterminationMCFE
Average BOE per Day17.525
Average MCFE per Day101.652

 Federal Financial Assurance  i

 Tribal Well  i No
