Wellbore #00 Wellbore Classification: GW Status: PR - 8/17/2011 Measured TD: 7420 ft. Vertical TD: 7301 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/17/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/3/2012 | | Proposed Top PZ Location: | Sec:19 Twp: 6S 91W | Footage: 1165 FSL 1980 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 91W | Footage: 1165 FSL 1980 FWL | | Proposed Depth/Form: | 7363 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH | Unit Number: | COC052447X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-65 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 760 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 760 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 7363 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 590, Top: , Bottom: 7363 ft. |
| | |

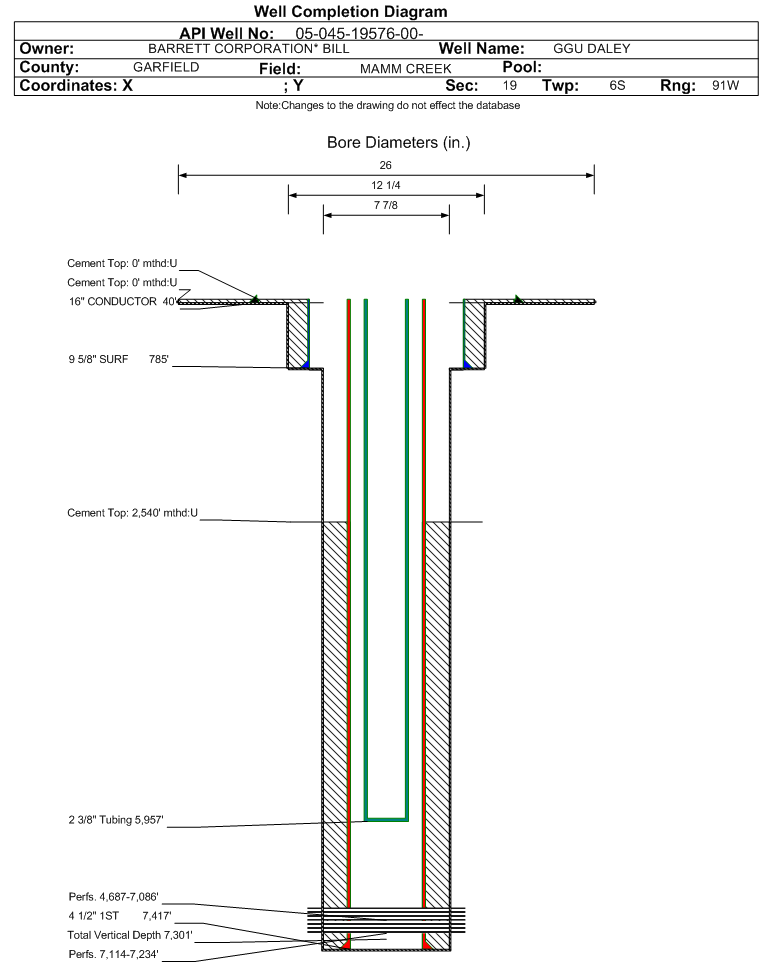

| Wellbore Completed | | Completion Date: | 6/15/2011 | | Spud Date: | 3/8/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7420 ft. | Measured PB depth: | 7370 ft. | | True Vertical TD: | 7301 ft. | True Vertical PB depth: | 7254 ft. | | Top PZ Location: | Sec:19 Twp: 6S 91W | Footage: 1165 FSL 1972 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 91W | Footage: 1166 FSL 1975 FWL | | Log Types: | | | Log Types: | CBL, Caliper, Triple Combo, Temperature, Mud | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: , Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 785 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 805 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7417 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 940, Top: 2540 ft., Bottom: 7420 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3519 ft. | | | | | ROLLINS | 7111 ft. | | | |
Formation RLNS Formation Classification: GW Status: PR - 8/17/2011 Interval Top: 7114 ft. Interval Bottom: 7234 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 7/26/2011 | Choke Size: | 24.000 in. | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/14/2011 | | Treatment Summary: | Treated with Williams Fork. See Williams Fork Treatment Summary. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5957 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/17/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1147 | | CALC_MCF_GAS | 83 | | CASING_PRESS | 1350 | | GRAVITY_OIL | 52 | | MCF_GAS | 83 | | TUBING_PRESS | 1350 |
| | Perforation Data: | | Interval Top: | 7114 ft. | # Of Holes: | 14 | | Interval Bottom: | 7234 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 8/17/2011 Interval Top: 4687 ft. Interval Bottom: 7086 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/26/2011 | Choke Size: | 24.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/14/2011 | | Treatment Summary: | 1,443,348 lbs White Sand, 160,600 lbs CRC Sand, 75,894 BBLS Slickwater |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5957 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/17/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 254 | | BBLS_OIL | 38 | | BTU_GAS | 1147 | | CALC_BBLS_H2O | 254 | | CALC_BBLS_OIL | 38 | | CALC_GOR | 41316 | | CALC_MCF_GAS | 1570 | | CASING_PRESS | 1350 | | GRAVITY_OIL | 52 | | MCF_GAS | 1570 | | TUBING_PRESS | 1350 |
| | Perforation Data: | | Interval Top: | 4687 ft. | # Of Holes: | 230 | | Interval Bottom: | 7086 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 261 |
| Total Gas Produced (MCF) | 18202 |
| GOR | 69739 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.268 |
| Average MCFE per Day | 53.776 |
| Federal Financial Assurance | i | |
|
|
