Wellbore #00 Wellbore Classification: GW Status: PR - 10/11/2012 Measured TD: 8715 ft. Vertical TD: 7660 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/11/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/24/2012 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 2234 FNL 403 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 2234 FNL 403 FWL | | Proposed Depth/Form: | 8405 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2454 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 857, Top: 0 ft., Bottom: 2454 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8404 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 622, Top: 4580 ft., Bottom: 8404 ft. |
| | |

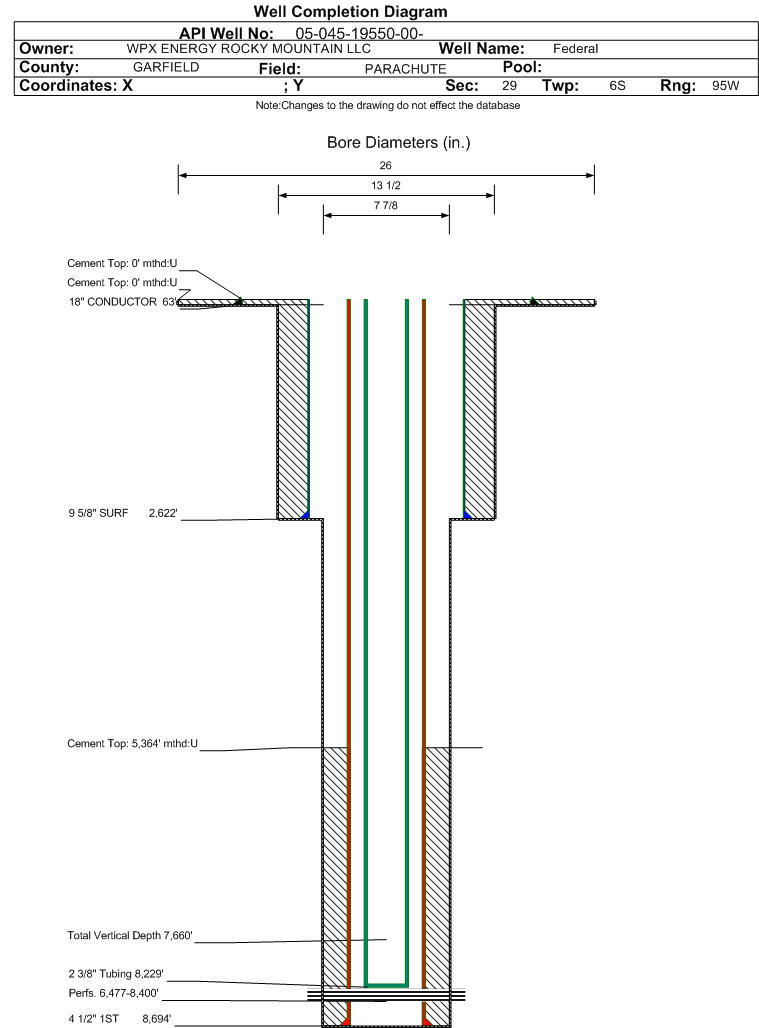

| Wellbore Completed | | Completion Date: | 7/4/2012 | | Spud Date: | 4/24/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8715 ft. | Measured PB depth: | 8659 ft. | | True Vertical TD: | 7660 ft. | True Vertical PB depth: | 7604 ft. | | Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 2090 FNL 250 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 2092 FNL 236 FWL | | Log Types: | CBL/RPM/MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2622 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 610, Top: 0 ft., Bottom: 2622 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8694 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 5364 ft., Bottom: 8694 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 3750 ft., Depth: 4600 ft., Bottom: , Sacks: 200, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2313 ft. | | | | | MESAVERDE | 5095 ft. | | | | | CAMEO | 7900 ft. | | | | | ROLLINS | 8530 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 8/28/2012 Interval Top: 6477 ft. Interval Bottom: 8400 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/17/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/25/2012 | Treatment End Date: | 8/6/2012 | | Treatment Summary: | 685400# 40/70 Sand; 30391 BBLS Slickwater. | | Total fluid used in treatment (bbls): | 30391 | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 5 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.63 | | Recycled water used in treatment (bbls): | 30391 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 685400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8229 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/28/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1128 | | CALC_MCF_GAS | 1421 | | CASING_PRESS | 2043 | | MCF_GAS | 1421 | | TUBING_PRESS | 1703 |
| | Perforation Data: | | Interval Top: | 6477 ft. | # Of Holes: | 110 | | Interval Bottom: | 8400 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 14605 |
| GOR | 695476 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.956 |
| Average MCFE per Day | 40.356 |
| Federal Financial Assurance | i | Y |
|
|
