COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19543		Well Classification: GW Status: PR - 6/21/2011
Well Name/No:TWIN CREEK #1-9A1 (O1EB)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/21/2011
FacilityID:417470LocationID:416887
County:GARFIELD #045Location:SWSE 1 7S92W 6
Field:MAMM CREEK - #52500Elevation:6062 ft.
Basin:PICEANCE BASIN
Planned Location:845FSL  1851 FELLat/Long: 39.471450 / -107.612430Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.471452 / -107.612432Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 5/9/2011
End Date: 5/9/2011
Reported: 3/28/2012
Prior to rule 205A.b.(2)(A)
Days to report: 324
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/21/2011             Measured TD: 6512 ft.    Vertical TD: 5951 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/21/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/24/2012
Proposed Top PZ Location:Sec:1 Twp: 7S 92W Footage: 250 FNL  660 FEL
Bottom Hole Location:Sec:1 Twp: 7S 92W Footage: 250 FNL  660 FEL
Proposed Depth/Form:7357 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA Unit Number:COC55972E
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1132 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 545, Top: 0 ft., Bottom: 1132 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7357 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 648, Top: 0 ft., Bottom: 7357 ft.
Wellbore Completed
Completion Date:10/30/2010
Spud Date:9/4/2010Spud Date Is:ACTUAL
Measured TD:6512 ft.Measured PB depth:6458 ft.
True Vertical TD:5951 ft.True Vertical PB depth:5897 ft.
Top PZ Location:Sec:1 Twp: 7S 92WFootage: 107 FNL  678 FEL
Bottom Hole Location:Sec:1 Twp: 7S 92WFootage: 110 FNL  657 FEL
Log Types:RST, CBL (Same Log) and Mud

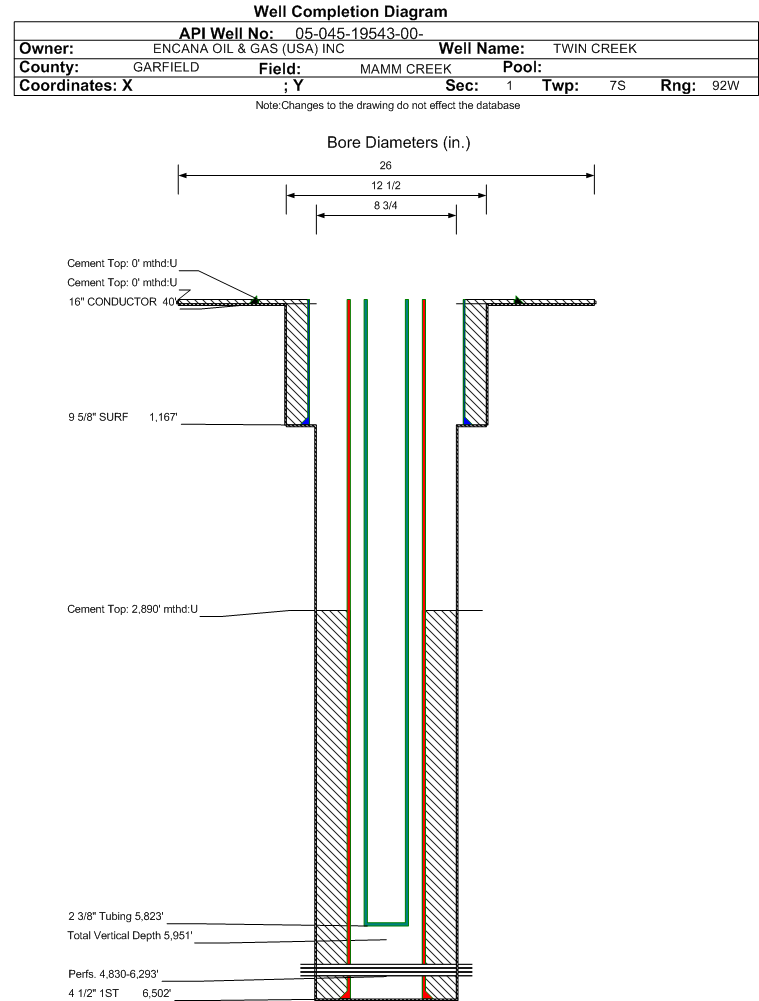

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1167 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 564, Top: 0 ft., Bottom: 1167 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6502 ft., Weight: 12 , Citings Type: ACTUAL
Cement:Sacks: 1625, Top: 2890 ft., Bottom: 6512 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3923 ft.6512 ft.NN

Formation WMFK                     Formation Classification:  OW                     Status:  PR - 6/21/2011                 Interval Top: 4830 ft.    Interval Bottom: 6293 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/14/2011Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/2011
Treatment Summary:Stages 1-7 treated with a total of 107,795 bbls of Slickwater, 767,609 lbs 20-40 Sand.
Tubing Size:2.375 in.Tubing Setting Depth:5823 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/21/2011Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 644
BBLS_OIL 437
BTU_GAS 1170
CALC_BBLS_H2O 644
CALC_BBLS_OIL 437
CALC_MCF_GAS 1096
CASING_PRESS 1450
MCF_GAS 1096
TUBING_PRESS 725
Perforation Data:
Interval Top:4830 ft.# Of Holes:42
Interval Bottom:6293 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)220
Total Gas Produced (MCF)28188
GOR128127
GOR DeterminationMCFE
Average BOE per Day13.918
Average MCFE per Day80.726

 Federal Financial Assurance  i Y

 Tribal Well  i No
