Wellbore #00 Wellbore Classification: GW Status: PR - 8/14/2012 Measured TD: 7931 ft. Vertical TD: 7608 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/14/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/24/2012 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 2362 FSL 2211 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 2362 FSL 2211 FWL | | Proposed Depth/Form: | 7951 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2295 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 801, Top: 0 ft., Bottom: 2295 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7951 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 611, Top: 4195 ft., Bottom: 7951 ft. |
| | |

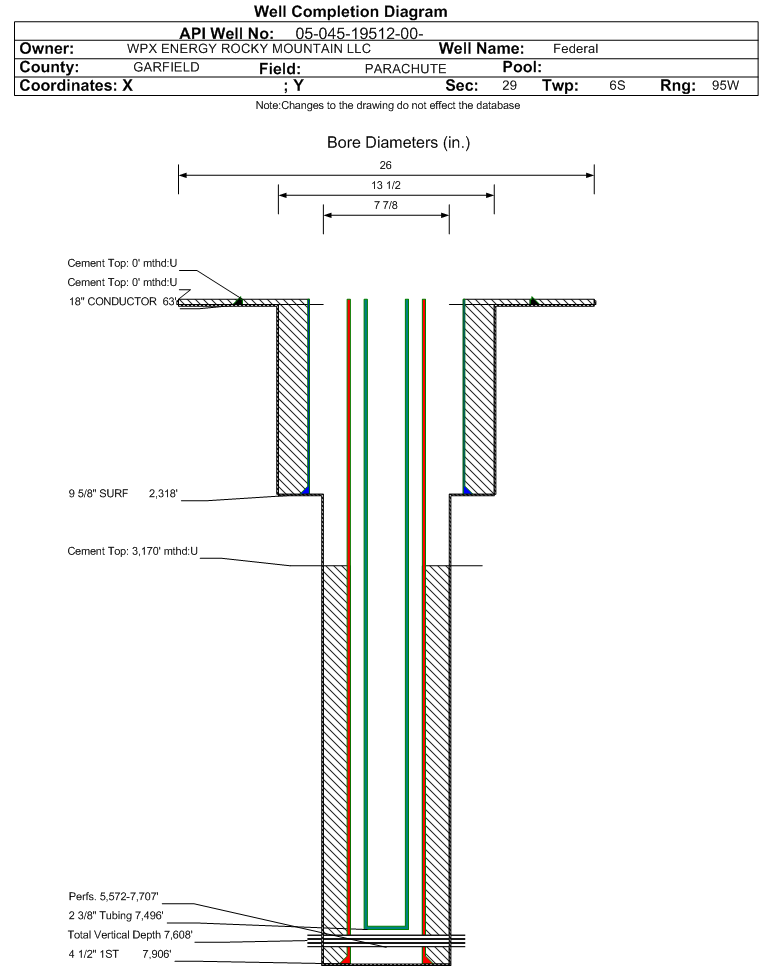

| Wellbore Completed | | Completion Date: | 2/1/2012 | | Spud Date: | 1/24/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7931 ft. | Measured PB depth: | 7877 ft. | | True Vertical TD: | 7608 ft. | True Vertical PB depth: | 7554 ft. | | Top PZ Location: | Sec:29 Twp: 6S 95w | Footage: 2342 FSL 2209 FWL | | Bottom Hole Location: | Sec:29 Twp: 6s 95w | Footage: 2371 FSL 2202 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN and CBL/RPM/MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2318 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 540, Top: 0 ft., Bottom: 2318 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7906 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 3170 ft., Bottom: 7906 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2093 ft. | | | | | MESAVERDE | 4409 ft. | | | | | CAMEO | 7205 ft. | | | | | ROLLINS | 7795 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/31/2012 Interval Top: 5572 ft. Interval Bottom: 7707 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/19/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/11/2012 | Treatment End Date: | 6/18/2012 | | Treatment Summary: | 984400# 40/70 Sand; 27947.2 BBLS Slickwater. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.58 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 984400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7496 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1064 | | CALC_MCF_GAS | 853 | | CASING_PRESS | 1735 | | MCF_GAS | 853 | | TUBING_PRESS | 1446 |
| | Perforation Data: | | Interval Top: | 5572 ft. | # Of Holes: | 158 | | Interval Bottom: | 7707 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 18369 |
| GOR | 612300 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.763 |
| Average MCFE per Day | 50.797 |
| Federal Financial Assurance | i | Y |
|
|
