Wellbore #00 Wellbore Classification: GW Status: PR - 12/8/2011 Measured TD: 8436 ft. Vertical TD: 7770 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/8/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/28/2012 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 2179 FNL 1891 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 2179 FNL 1891 FWL | | Proposed Depth/Form: | 8442 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: UnSpaced | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2712 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 947, Top: 0 ft., Bottom: 2712 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8441 ft., Weight: 16.6 , Citings Type: PLANNED | | Cement: | Sacks: 607, Top: 4713 ft., Bottom: 8441 ft. |
| | |

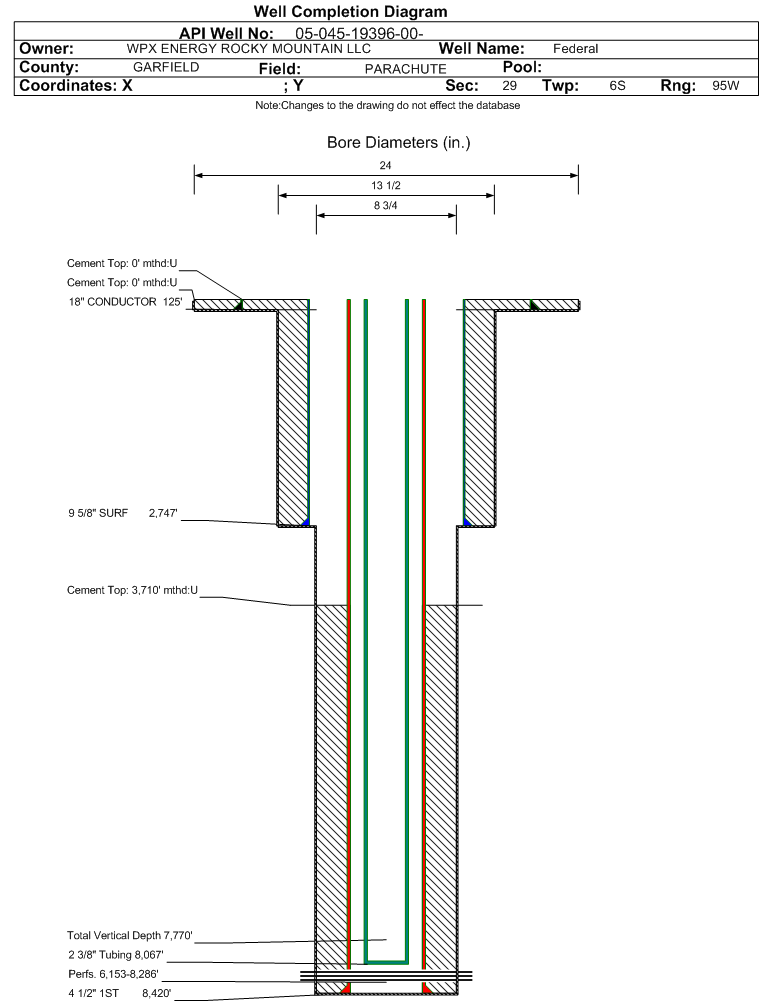

| Wellbore Completed | | Completion Date: | 6/4/2011 | | Spud Date: | 5/28/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8436 ft. | Measured PB depth: | 8386 ft. | | True Vertical TD: | 7770 ft. | True Vertical PB depth: | 7720 ft. | | Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 2192 FNL 1948 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 2209 FNL 1932 FWL | | Log Types: | CBL AND RESERVOIR PERFORMANCE MONITOR (RPM), MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 125 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 47, Top: 0 ft., Bottom: 125 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2747 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 2747 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8420 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 970, Top: 3710 ft., Bottom: 8420 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2488 ft. | | | | | MESAVERDE | 5008 ft. | | | | | CAMEO | 7786 ft. | | | | | ROLLINS | 8383 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 10/31/2011 Interval Top: 6153 ft. Interval Bottom: 8286 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/5/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/4/2011 | | Treatment Summary: | 5516 GALS 7.5% HCL; 1207652# OF 40/70 SAND; 33818 BBLS SLICKWATER (SUMMARY).
|
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8067 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1082 | | CALC_MCF_GAS | 1140 | | CASING_PRESS | 1472 | | MCF_GAS | 1140 | | TUBING_PRESS | 1177 |
| | Perforation Data: | | Interval Top: | 6153 ft. | # Of Holes: | 198 | | Interval Bottom: | 8286 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 14613 |
| GOR | 562038 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.975 |
| Average MCFE per Day | 40.468 |
| Federal Financial Assurance | i | Y |
|
|
