Wellbore #00 Wellbore Classification: GW Status: PR - 2/16/2011 Measured TD: 8392 ft. Vertical TD: 8055 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/17/2012 | | Proposed Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 232 FSL 1637 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 232 FSL 1637 FEL | | Proposed Depth/Form: | 8411 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2503 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 874, Top: 0 ft., Bottom: 2503 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8411 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 633, Top: , Bottom: 8411 ft. |
| | |

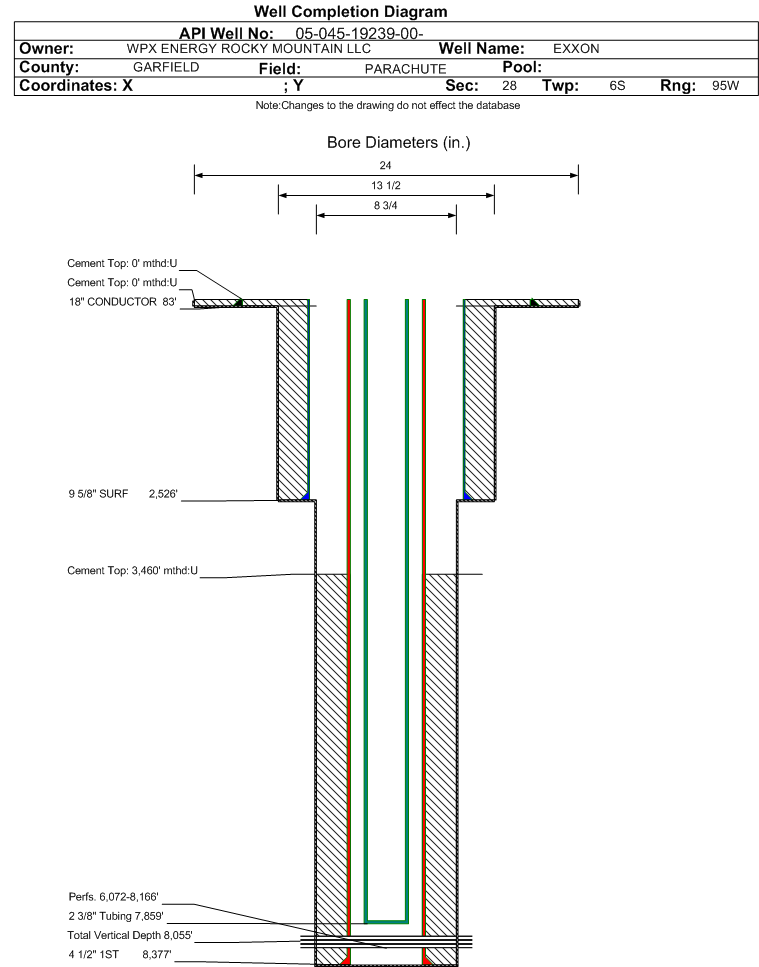

| Wellbore Completed | | Completion Date: | 8/29/2010 | | Spud Date: | 8/18/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8392 ft. | Measured PB depth: | 8347 ft. | | True Vertical TD: | 8055 ft. | True Vertical PB depth: | 8020 ft. | | Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 214 FSL 1631 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 229 FSL 1645 FEL | | Log Types: | CBL, MUD AND IND/DEN/NEU | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 83 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 83 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2526 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 0 ft., Bottom: 2526 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8377 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1215, Top: 3460 ft., Bottom: 8377 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2323 ft. | | | | | MESAVERDE | 4772 ft. | | | | | CAMEO | 7498 ft. | | | | | ROLLINS | 8290 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 12/11/2010 Interval Top: 6072 ft. Interval Bottom: 8166 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/3/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/28/2010 | | Treatment Summary: | 3043 GALS 7 1/2% HCL; 790,722 30/50 SAND; 457,205 100 MESH; 32,196 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7859 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/11/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1058 | | CASING_PRESS | 1693 | | MCF_GAS | 1195 | | TUBING_PRESS | 1484 |
| | Perforation Data: | | Interval Top: | 6072 ft. | # Of Holes: | 135 | | Interval Bottom: | 8166 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 47 |
| Total Gas Produced (MCF) | 18078 |
| GOR | 384638 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.670 |
| Average MCFE per Day | 50.287 |
| Federal Financial Assurance | i | Y |
|
|
