COGIS - WELL SCOUT CARD

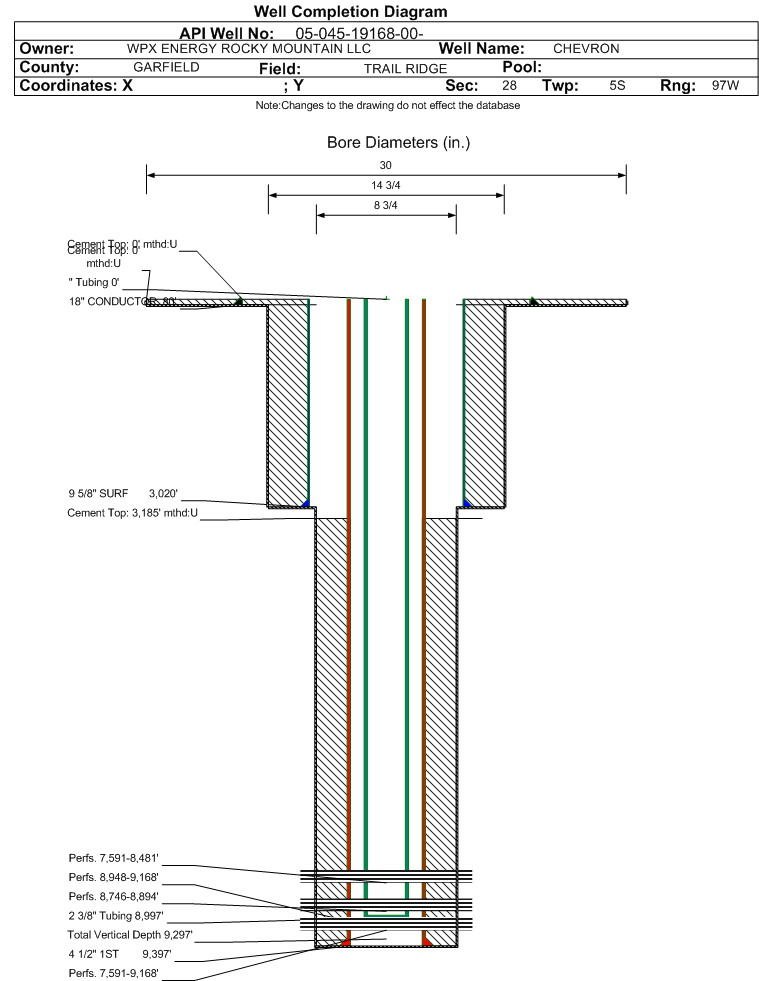

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19168		Well Classification: GW Status: PR - 12/10/2014
Well Name/No:CHEVRON #TR 323-28-597
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/10/2014
FacilityID:415845LocationID:335925
County:GARFIELD #045Location:SESW 28 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8374 ft.
Basin:PICEANCE BASIN
Planned Location:1002FSL  1980 FWLLat/Long: 39.580165 / -108.285294Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.580165 / -108.285294Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 10/4/2014
End Date: 10/7/2014
Reported: 12/3/2014
Days to report: 57		Disclosure: Sidetrack #00
Start Date: 7/6/2015
End Date: 7/11/2015
Reported: 9/3/2015
Days to report: 54
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/10/2014             Measured TD: 9410 ft.    Vertical TD: 9297 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/10/2014
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/2/2016
Proposed Top PZ Location:Sec:28 Twp: 5S 97W Footage: 2101 FSL  1947 FWL
Bottom Hole Location:Sec:28 Twp: 5S 97W Footage: 2101 FSL  1947 FWL
Proposed Depth/Form:9442 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 510-44 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-17 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 30, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2990 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 1110, Top: 0 ft., Bottom: 2990 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9442 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 537, Top: 5718 ft., Bottom: 9442 ft.
Wellbore Completed
Completion Date:8/23/2014
Spud Date:8/2/2014Spud Date Is:ACTUAL
Measured TD:9410 ft.Measured PB depth:9346 ft.
True Vertical TD:9297 ft.True Vertical PB depth:9233 ft.
Top PZ Location:Sec:28 Twp: 5S 97WFootage: 2131 FSL  1897 FWL
Bottom Hole Location:Sec:28 Twp: 5S 97WFootage: 2124 FSL  1923 FWL
Log Types:SP/GR/HDIL/ZDL/CN/CBL/MUD
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 30, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3020 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1760, Top: 0 ft., Bottom: 3020 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9397 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1170, Top: 3185 ft., Bottom: 9397 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G4281 ft.
MESAVERDE5802 ft.
CAMEO8082 ft.
ROLLINS8510 ft.
COZZETTE8691 ft.
CORCORAN8939 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 3/27/2015                 Interval Top: 8948 ft.    Interval Bottom: 9168 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/16/2014Choke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/4/2014Treatment End Date:10/4/2014
Treatment Summary:410 Gals 7 ½% HCL; 3548 Bbls Slickwater; 125200 # 40/70 Sand; 10500 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):3558Max pressure during treatment (psi):4987
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):9Min frac gradient (psi/ft):0.55
Recycled water used in treatment (bbls):3548Total flowback volume recovered (bbls):8285
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):135700Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8948 ft.# Of Holes:24
Interval Bottom:9168 ft.Hole Size:0.35 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 3/27/2015                 Interval Top: 8746 ft.    Interval Bottom: 8894 ft.

 Completed Information for Formation COZZETTE
1st Production Date:10/16/2014Choke Size:
Formation Name:COZZETTECommingled:
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/4/2014Treatment End Date:10/4/2014
Treatment Summary:470 Gals 7 ½% HCL; 138853 Bbls Slickwater; 116800 # 40/70 Sand; 8300 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):3317Max pressure during treatment (psi):4987
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):11Min frac gradient (psi/ft):0.55
Recycled water used in treatment (bbls):3306Total flowback volume recovered (bbls):8285
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):125100Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8746 ft.# Of Holes:24
Interval Bottom:8894 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/27/2015                 Interval Top: 7591 ft.    Interval Bottom: 8481 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/16/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/5/2014Treatment End Date:10/7/2014
Treatment Summary:2050 Gals 7 ½% HCL; 11535 Bbls Slickwater; 418800 # 40/70 Sand; 31200 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):11584Max pressure during treatment (psi):4987
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:4
Total acid used in treatment (bbls):48Min frac gradient (psi/ft):0.55
Recycled water used in treatment (bbls):11535Total flowback volume recovered (bbls):8285
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):450000Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:7591 ft.# Of Holes:92
Interval Bottom:8481 ft.Hole Size:0.35 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 11/30/2014                Interval Top: 7591 ft.    Interval Bottom: 9168 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:10/16/2014Choke Size:
Formation Name:WILLIAMS FORK-ILESCommingled:Yes
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/4/2014Treatment End Date:10/7/2014
Treatment Summary:2930 Gals 7 ½% HCL; 18391 Bbls Slickwater; 660800 # 40/70 Sand; 50000 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):18460Max pressure during treatment (psi):4987
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:6
Total acid used in treatment (bbls):69Min frac gradient (psi/ft):0.55
Recycled water used in treatment (bbls):18390Total flowback volume recovered (bbls):8285
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):710800Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:8997 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2014Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1078
CALC_MCF_GAS 367
CASING_PRESS 946
MCF_GAS 367
TUBING_PRESS 570
Perforation Data:
Interval Top:7591 ft.# Of Holes:140
Interval Bottom:9168 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)74
Total Gas Produced (MCF)24249
GOR327689
GOR DeterminationMCFE
Average BOE per Day11.691
Average MCFE per Day67.802

 Federal Financial Assurance  i

 Tribal Well  i No
