COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19167		Well Classification: GW Status: PR - 12/10/2014
Well Name/No:CHEVRON #TR 523-28-597
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/10/2014
FacilityID:415844LocationID:335925
County:GARFIELD #045Location:SESW 28 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8374 ft.
Basin:PICEANCE BASIN
Planned Location:987FSL  1976 FWLLat/Long: 39.580125 / -108.285310Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.580125 / -108.285310Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 10/3/2014
End Date: 10/6/2014
Reported: 12/3/2014
Days to report: 58		Disclosure: Sidetrack #00
Start Date: 7/6/2015
End Date: 7/9/2015
Reported: 9/3/2015
Days to report: 56
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/10/2014             Measured TD: 9250 ft.    Vertical TD: 9225 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/10/2014
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/2/2016
Proposed Top PZ Location:Sec:28 Twp: 5S 97W Footage: 1458 FSL  1902 FWL
Bottom Hole Location:Sec:28 Twp: 5S 97W Footage: 1458 FSL  1902 FWL
Proposed Depth/Form:9239 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 510-44 , Unit Acreage: , Drill Unit: SW
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-17 , Unit Acreage: , Drill Unit: SW
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 30, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2902 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 1078, Top: 0 ft., Bottom: 2902 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9239 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 534, Top: 5733 ft., Bottom: 9239 ft.

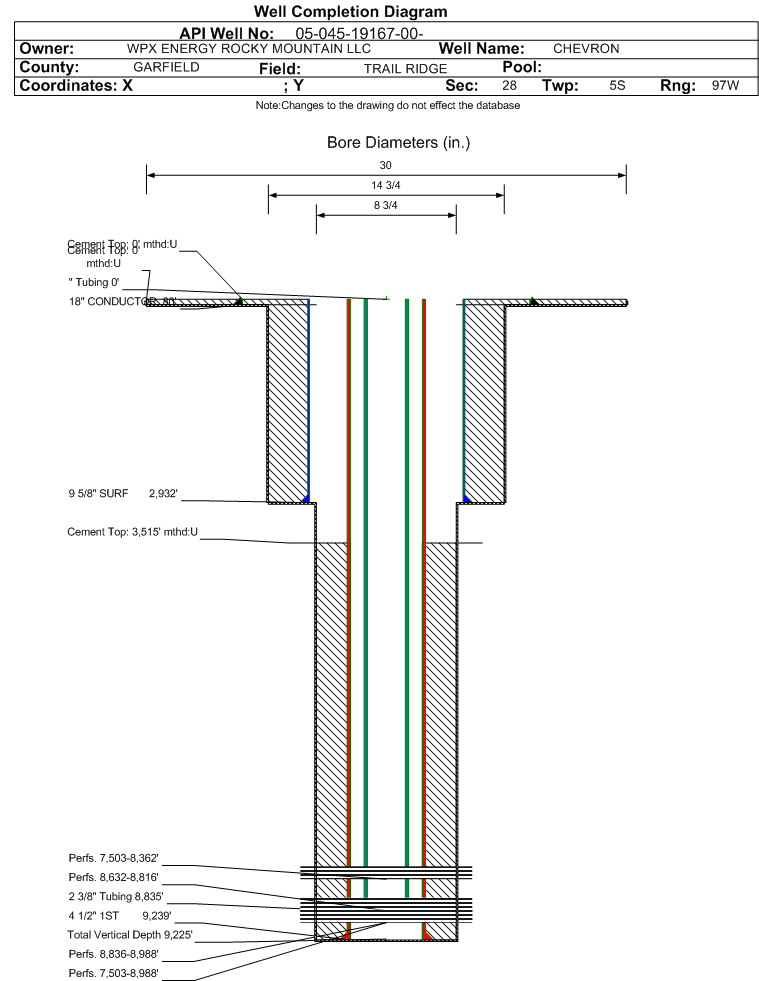

Wellbore Completed
Completion Date:9/3/2014
Spud Date:7/24/2014Spud Date Is:ACTUAL
Measured TD:9250 ft.Measured PB depth:9165 ft.
True Vertical TD:9225 ft.True Vertical PB depth:9140 ft.
Top PZ Location:Sec:28 Twp: 5S 97WFootage: 1489 FSL  1915 FWL
Bottom Hole Location:Sec:28 Twp: 5S 97WFootage: 1489 FSL  1893 FWL
Log Types:RPM/CBL/MUD
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 30, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2932 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 1710, Top: 0 ft., Bottom: 2932 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9239 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1160, Top: 3515 ft., Bottom: 9239 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G4155 ft.
MESAVERDE5714 ft.
CAMEO7986 ft.
ROLLINS8393 ft.
COZZETTE8576 ft.
CORCORAN8820 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 4/21/2015                 Interval Top: 8836 ft.    Interval Bottom: 8988 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/16/2014Choke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/3/2014Treatment End Date:10/3/2014
Treatment Summary:491 Gals 7 ½% HCL; 3398 Bbls Slickwater; 106400 # 40/70 Sand; 9400 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):3410Max pressure during treatment (psi):3596
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):11Min frac gradient (psi/ft):0.54
Recycled water used in treatment (bbls):3398Total flowback volume recovered (bbls):10136
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):115800Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8836 ft.# Of Holes:21
Interval Bottom:8988 ft.Hole Size:0.35 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 4/21/2015                 Interval Top: 8632 ft.    Interval Bottom: 8816 ft.

 Completed Information for Formation COZZETTE
1st Production Date:10/16/2014Choke Size:
Formation Name:COZZETTECommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/4/2014Treatment End Date:10/4/2014
Treatment Summary:698 Gals 7 ½% HCL; 3262 Bbls Slickwater; 116800 # 40/70 Sand; 7800 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):3279Max pressure during treatment (psi):3596
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):16Min frac gradient (psi/ft):0.54
Recycled water used in treatment (bbls):3262Total flowback volume recovered (bbls):10136
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):124600Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8632 ft.# Of Holes:27
Interval Bottom:8816 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/21/2015                 Interval Top: 7503 ft.    Interval Bottom: 8362 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/16/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/5/2014Treatment End Date:10/6/2014
Treatment Summary:2015 Gals 7 ½% HCL; 11603 Bbls Slickwater; 413900 # 40/70 Sand; 29800 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):11651Max pressure during treatment (psi):3596
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:4
Total acid used in treatment (bbls):48Min frac gradient (psi/ft):0.54
Recycled water used in treatment (bbls):11603Total flowback volume recovered (bbls):10136
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):443700Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:7503 ft.# Of Holes:96
Interval Bottom:8362 ft.Hole Size:0.35 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 11/30/2014                Interval Top: 7503 ft.    Interval Bottom: 8988 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:10/16/2014Choke Size:
Formation Name:WILLIAMS FORK-ILESCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:10/3/2014Treatment End Date:10/6/2014
Treatment Summary:3204 Gals 7 ½% HCL; 18265 Bbls Slickwater; 637100 # 40/70 Sand; 47000 # 20/40 Sand (Summary)
Total fluid used in treatment (bbls):18341Max pressure during treatment (psi):3596
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:6
Total acid used in treatment (bbls):76Min frac gradient (psi/ft):0.54
Recycled water used in treatment (bbls):18264Total flowback volume recovered (bbls):10136
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):684100Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:8835 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2014Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 872
BTU_GAS 1078
CALC_BBLS_OIL 519
CALC_MCF_GAS 473
CASING_PRESS 872
MCF_GAS 473
TUBING_PRESS 519
Perforation Data:
Interval Top:7503 ft.# Of Holes:144
Interval Bottom:8988 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)93
Total Gas Produced (MCF)35323
GOR379817
GOR DeterminationMCFE
Average BOE per Day16.949
Average MCFE per Day98.289

 Federal Financial Assurance  i

 Tribal Well  i No
