COGIS

Facility Detail

COGIS - WELL SCOUT CARD

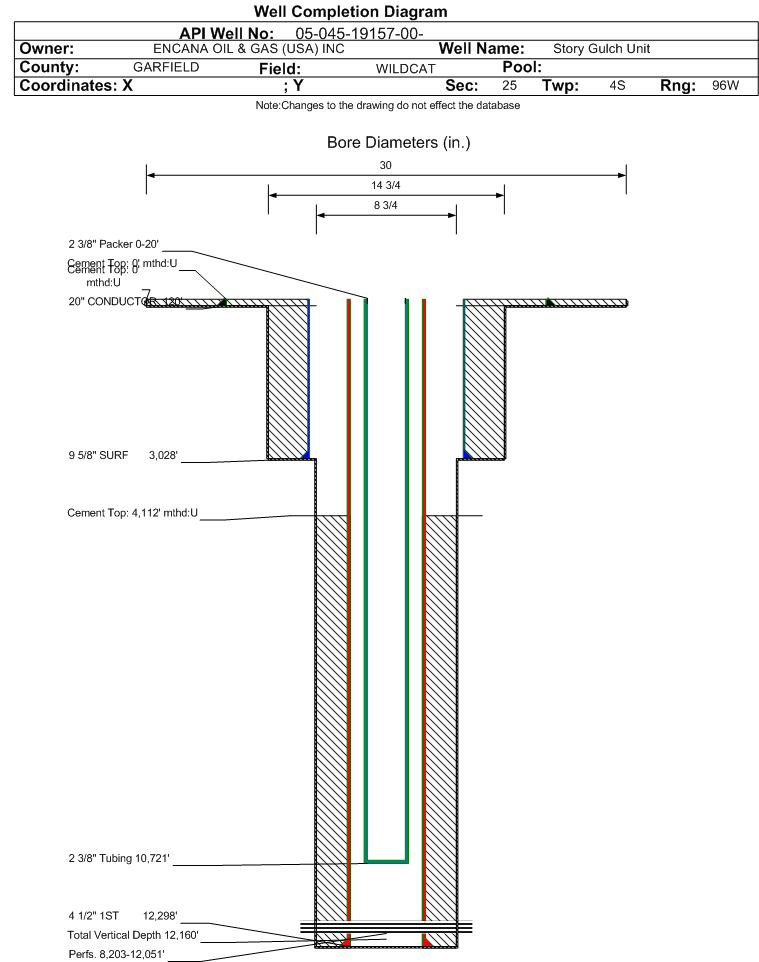

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19157		Well Classification: GW Status: PR - 2/1/2021
Well Name/No:Story Gulch Unit #8506C-25 F25496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC61136
Facility Status:PRStatus Date2/1/2021
FacilityID:415746LocationID:415182
County:GARFIELD #045Location:SENW 25 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8298 ft.
Basin:PICEANCE BASIN
Planned Location:2282FNL  1934 FWLLat/Long: 39.674300 / -108.119667Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.674301 / -108.119666Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 1/14/2011
End Date: 1/14/2011
Reported: 11/30/2011
Prior to rule 205A.b.(2)(A)
Days to report: 320
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2021             Measured TD: 12325 ft.    Vertical TD: 12160 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2021
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/19/2012
Proposed Top PZ Location:Sec:25 Twp: 4S 96W Footage: 2073 FNL  1929 FWL
Bottom Hole Location:Sec:25 Twp: 4S 96W Footage: 2073 FNL  1929 FWL
Proposed Depth/Form:13663 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:Story Gulch Unt Unit Number:COC69333X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Linepipe , Citings Type: PLANNED
Cement:Sacks: 176, Top: 0 ft., Bottom: 120 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 2069, Top: 0 ft., Bottom: 3000 ft.
Casing:String Type: 2ND, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 13663 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 857, Top: 8003 ft., Bottom: 13663 ft.
Wellbore Completed
Completion Date:12/6/2010
Spud Date:5/6/2010Spud Date Is:ACTUAL
Measured TD:12325 ft.Measured PB depth:12272 ft.
True Vertical TD:12160 ft.True Vertical PB depth:12107 ft.
Top PZ Location:Sec:25 Twp: 4S 96WFootage: 2066 FNL  1920 FWL
Bottom Hole Location:Sec:25 Twp: 4S 96WFootage: 2104 FNL  1903 FWL
Log Types:Mud, RSL/SM, CBL/TEMP
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL
Cement:Sacks: 207, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3028 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1108, Top: 0 ft., Bottom: 3028 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12298 ft., Weight: 12 , Citings Type: ACTUAL
Cement:Sacks: 2186, Top: 4112 ft., Bottom: 12325 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK8133 ft.12127 ft.NN
ROLLINS12127 ft.12325 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/1/2021                  Interval Top: 8203 ft.    Interval Bottom: 12051 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:3/16/2011Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/14/2011
Treatment Summary:Stages 1-13 treated with a total of 87,953 bbls of Slickwater, 583,755 lbs 20-40 Sand.
Tubing Size:2.375 in.Tubing Setting Depth:10721 ft.
Tubing Packer Depth:0 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/23/2011Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 71
BTU_GAS 1170
CALC_BBLS_H2O 71
CALC_MCF_GAS 3195
CASING_PRESS 2668
MCF_GAS 3195
TUBING_PRESS 977
Perforation Data:
Interval Top:8203 ft.# Of Holes:360
Interval Bottom:12051 ft.Hole Size:0.42 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)1367
GOR341750
GOR DeterminationMCFE
Average BOE per Day0.660
Average MCFE per Day3.813

 Federal Financial Assurance  i Y

 Tribal Well  i No
