Wellbore #00 Wellbore Classification: GW Status: PR - 8/4/2011 Measured TD: 9732 ft. Vertical TD: 9691 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/4/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/17/2012 | | Proposed Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 2530 FSL 2354 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 2530 FSL 2354 FWL | | Proposed Depth/Form: | 10079 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-98 , Unit Acreage: 20, Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-98 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1250 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 703, Top: 0 ft., Bottom: 1250 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 10079 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1089, Top: 0 ft., Bottom: 10079 ft. |
| | |

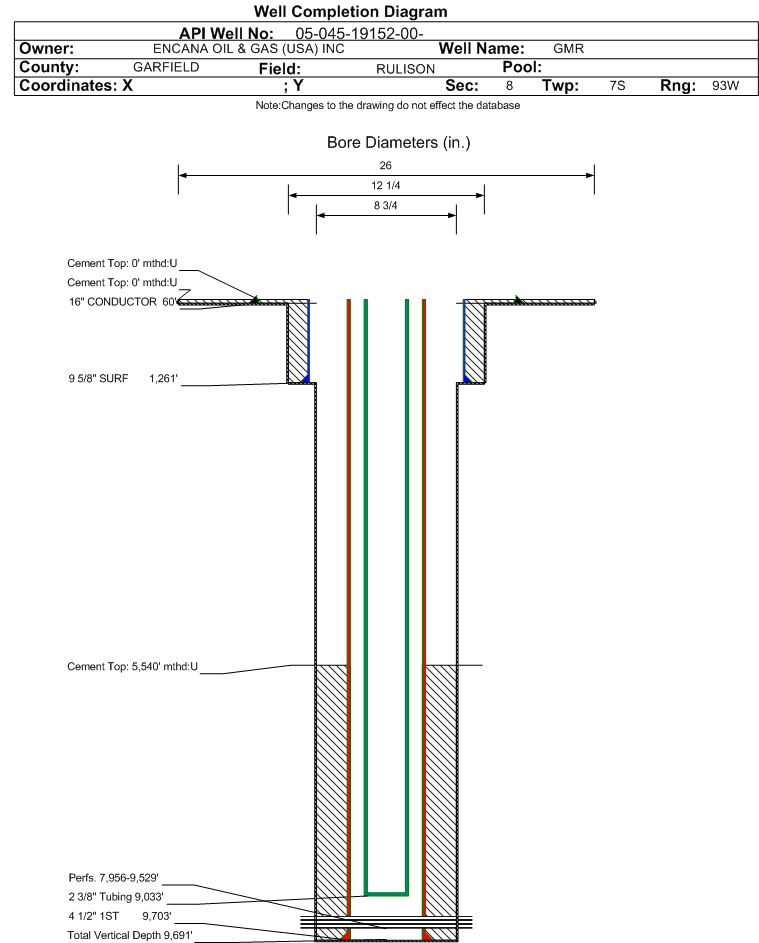

| Wellbore Completed | | Completion Date: | 3/12/2011 | | Spud Date: | 1/31/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 9732 ft. | Measured PB depth: | 9661 ft. | | True Vertical TD: | 9691 ft. | True Vertical PB depth: | 9620 ft. | | Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 2486 FSL 2335 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 2512 FSL 2328 FWL | | Log Types: | RST, CBL and Mud Log. The RST and CBL log were uploaded in one .las file identified as the "Neutron Log" | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1261 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 418, Top: 0 ft., Bottom: 1261 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9703 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1106, Top: 5540 ft., Bottom: 9703 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6809 ft. | 9668 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 7/24/2011 Interval Top: 7956 ft. Interval Bottom: 9529 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/28/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/16/2011 | | Treatment Summary: | Stages 01-06 treated with a total of: 53950 bbls of Slickwater, 749400 lbs 20-40 Sand. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9033 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/24/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 404 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 404 | | CALC_MCF_GAS | 1188 | | CASING_PRESS | 1650 | | MCF_GAS | 1188 | | TUBING_PRESS | 1040 |
| | Perforation Data: | | Interval Top: | 7956 ft. | # Of Holes: | 162 | | Interval Bottom: | 9529 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 163 |
| Total Gas Produced (MCF) | 29875 |
| GOR | 183282 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.563 |
| Average MCFE per Day | 84.429 |
| Federal Financial Assurance | i | |
|
|
