Wellbore #00 Wellbore Classification: GW Status: PR - 7/7/2011 Measured TD: 9877 ft. Vertical TD: 9854 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/7/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/17/2012 | | Proposed Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 2110 FSL 2360 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 2110 FSL 2360 FWL | | Proposed Depth/Form: | 10036 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-98 , Unit Acreage: 20, Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-98 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1250 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 703, Top: 0 ft., Bottom: 1250 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 10036 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1089, Top: 0 ft., Bottom: 10036 ft. |
| | |

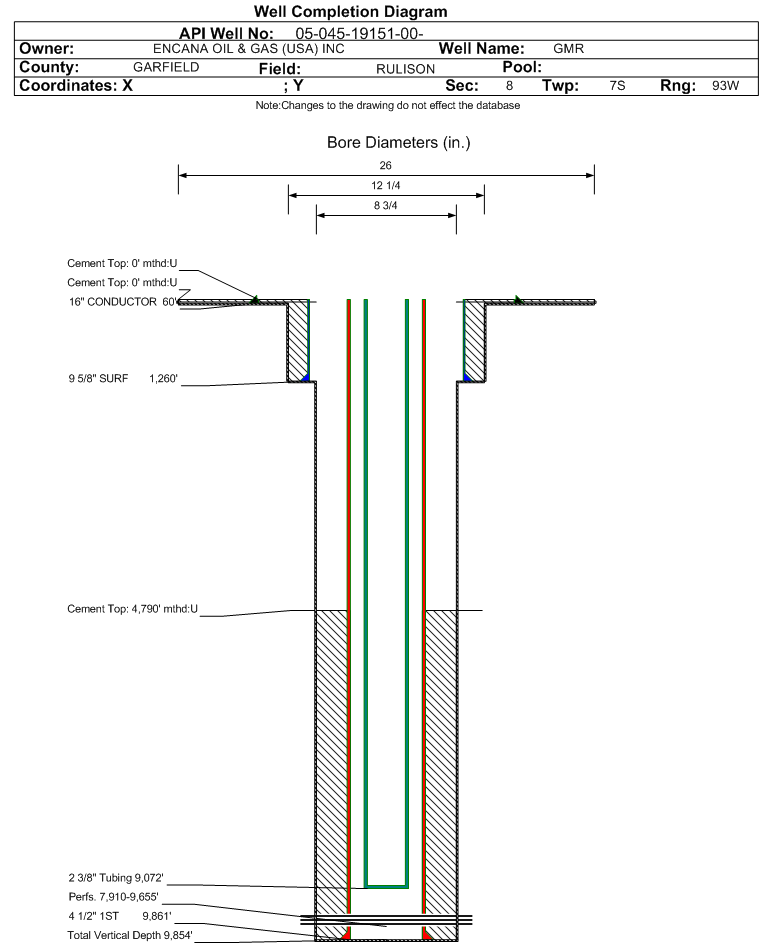

| Wellbore Completed | | Completion Date: | 4/12/2011 | | Spud Date: | 1/28/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 9877 ft. | Measured PB depth: | 9819 ft. | | True Vertical TD: | 9854 ft. | True Vertical PB depth: | 9796 ft. | | Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 2125 FSL 2362 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 93W | Footage: 2085 FSL 2313 FWL | | Log Types: | Triple Combo (Includes RST & CBL) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1260 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 418, Top: 0 ft., Bottom: 1260 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9861 ft., Weight: 12 , Citings Type: ACTUAL | | Cement: | Sacks: 1105, Top: 4790 ft., Bottom: 9877 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6188 ft. | 9877 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 7/7/2011 Interval Top: 7910 ft. Interval Bottom: 9655 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/30/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/16/2011 | | Treatment Summary: | Stages 1-7 treated with a total of 114,460 bbls of Slickwater, 798,100 lbs 20-40 Sand. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9072 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/7/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 483 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 483 | | CALC_MCF_GAS | 1499 | | CASING_PRESS | 1300 | | MCF_GAS | 1499 | | TUBING_PRESS | 1100 |
| | Perforation Data: | | Interval Top: | 7910 ft. | # Of Holes: | 189 | | Interval Bottom: | 9655 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 292 |
| Total Gas Produced (MCF) | 51639 |
| GOR | 176845 |
| GOR Determination | MCFE |
| Average BOE per Day | 25.186 |
| Average MCFE per Day | 146.084 |
| Federal Financial Assurance | i | |
|
|
