Wellbore #00 Wellbore Classification: GW Status: PR - 10/10/2011 Measured TD: 9910 ft. Vertical TD: 9663 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/10/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/17/2012 | | Proposed Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 2240 FSL 140 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 2240 FSL 140 FWL | | Proposed Depth/Form: | 10243 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-98 , Unit Acreage: 20, Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-98 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1250 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 703, Top: 0 ft., Bottom: 1250 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 10243 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1089, Top: 0 ft., Bottom: 10243 ft. |
| | |

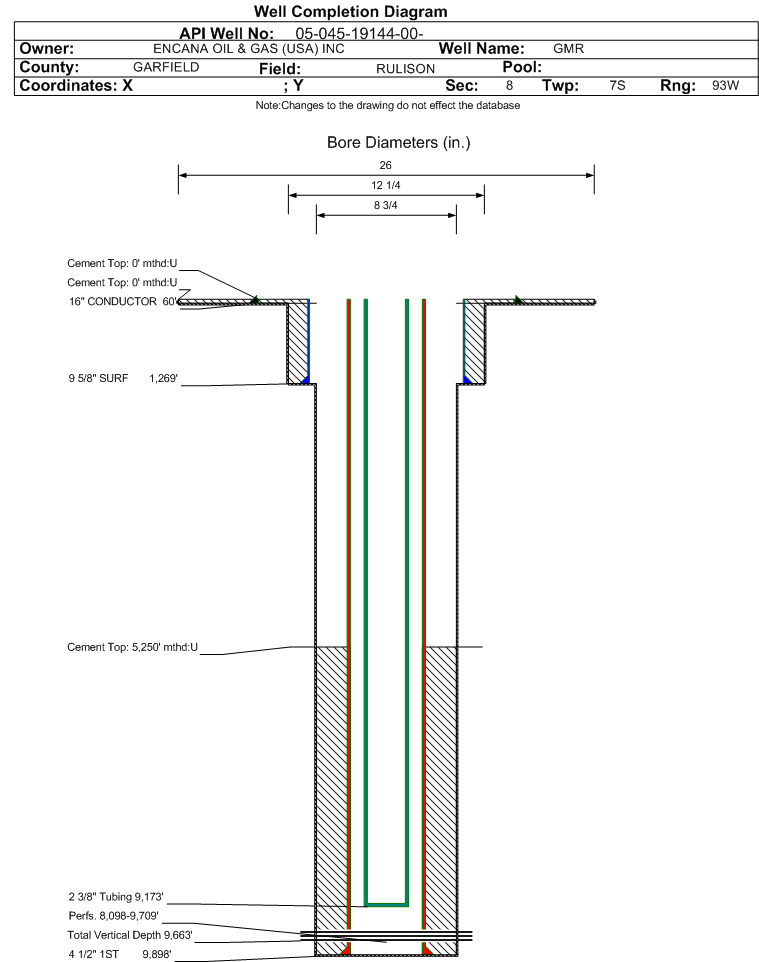

| Wellbore Completed | | Completion Date: | 4/1/2011 | | Spud Date: | 1/29/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 9910 ft. | Measured PB depth: | 9855 ft. | | True Vertical TD: | 9663 ft. | True Vertical PB depth: | 9608 ft. | | Top PZ Location: | Sec:8 Twp: 7S 93W | Footage: 2232 FSL 143 FWL | | Bottom Hole Location: | Sec:8 Twp: 7S 93W | Footage: 2211 FSL 114 FWL | | Log Types: | RST, CBL Combo(uploaded in the Neutron file) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1269 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 418, Top: 0 ft., Bottom: 1269 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9898 ft., Weight: 12 , Citings Type: ACTUAL | | Cement: | Sacks: 1114, Top: 5250 ft., Bottom: 9910 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6966 ft. | 9276 ft. | N | N | | ROLLINS | 9277 ft. | 9910 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 7/20/2011 Interval Top: 8098 ft. Interval Bottom: 9709 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/12/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/16/2011 | | Treatment Summary: | Stages 1-7 Treated with a total of : 98,416 bbls of Slickwater and 690,355 lbs 20-40 Sand. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9173 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/20/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 541 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 541 | | CALC_MCF_GAS | 1621 | | CASING_PRESS | 2450 | | MCF_GAS | 1621 | | TUBING_PRESS | 1550 |
| | Perforation Data: | | Interval Top: | 8098 ft. | # Of Holes: | 189 | | Interval Bottom: | 9709 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 156 |
| Total Gas Produced (MCF) | 28194 |
| GOR | 180730 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.743 |
| Average MCFE per Day | 79.697 |
| Federal Financial Assurance | i | |
|
|
