COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19143		Well Classification: GW Status: PR - 12/9/2010
Well Name/No:GMR #8-6A2 (K8W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/9/2010
FacilityID:415712LocationID:311645
County:GARFIELD #045Location:NESW 8 7S93W 6
Field:RULISON - #75400Elevation:7826 ft.
Basin:PICEANCE BASIN
Planned Location:1947FSL  1933 FWLLat/Long: 39.458168 / -107.799869Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.458178 / -107.799882Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/9/2010             Measured TD: 10114 ft.    Vertical TD: 9954 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/9/2010
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/17/2012
Proposed Top PZ Location:Sec:8 Twp: 7S 93W Footage: 1800 FNL  2399 FWL
Bottom Hole Location:Sec:8 Twp: 7S 93w Footage: 1800 FNL  2399 FWL
Proposed Depth/Form:10240 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-98 , Unit Acreage: 20, Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-98 , Unit Acreage: 10, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1250 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 703, Top: 0 ft., Bottom: 1250 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 10240 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1089, Top: 0 ft., Bottom: 10240 ft.
Wellbore Completed
Completion Date:8/5/2010
Spud Date:7/7/2010Spud Date Is:ACTUAL
Measured TD:10114 ft.Measured PB depth:10053 ft.
True Vertical TD:9954 ft.True Vertical PB depth:9893 ft.
Top PZ Location:Sec:8 Twp: 7S 93WFootage: 1824 FNL  2302 FWL
Bottom Hole Location:Sec:8 Twp: 7S 93WFootage: 1813 FNL  2284 FWL
Log Types:RST, CBL and Mud logs. The Attachment LAS.Neutron (has RST & CBL)

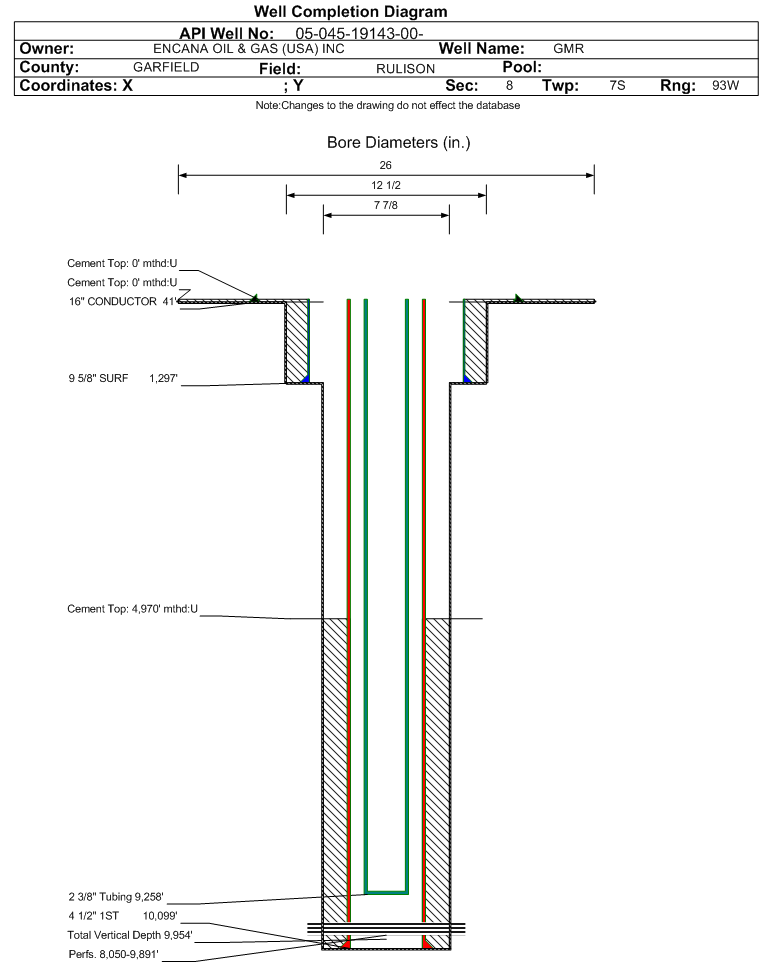

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 41 ft., Weight: Linepipe , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1297 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 1300 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10099 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1037, Top: 4970 ft., Bottom: 10114 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK6901 ft.10038 ft.
ROLLINS10039 ft.10114 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/9/2010                 Interval Top: 8050 ft.    Interval Bottom: 9891 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/12/2010Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/8/2010
Treatment Summary:Stages 1-8 treated with a total of: 62396 bbls of Slickwater, 862100 lbs 20-40 Sand.
Tubing Size:2.375 in.Tubing Setting Depth:9258 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/9/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 265
BBLS_OIL 314
BTU_GAS 1170
CALC_BBLS_H2O 265
CALC_BBLS_OIL 314
CALC_GOR 805
CALC_MCF_GAS 2528
CASING_PRESS 2140
GRAVITY_OIL 55
MCF_GAS 2528
TUBING_PRESS 1675
Perforation Data:
Interval Top:8050 ft.# Of Holes:216
Interval Bottom:9891 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)209
Total Gas Produced (MCF)37307
GOR178502
GOR DeterminationMCFE
Average BOE per Day18.186
Average MCFE per Day105.466

 Federal Financial Assurance  i

 Tribal Well  i No
