Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2024 Measured TD: 12215 ft. Vertical TD: 12113 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/2/2012 | | Proposed Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 1886 FNL 693 FWL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 1886 FNL 693 FWL | | Proposed Depth/Form: | 13692 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | Story Gulch Unt | Unit Number: | COC69333X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED | | Cement: | Sacks: 176, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 2069, Top: 0 ft., Bottom: 3000 ft. | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 13692 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 857, Top: 8032 ft., Bottom: 13692 ft. |
| | |

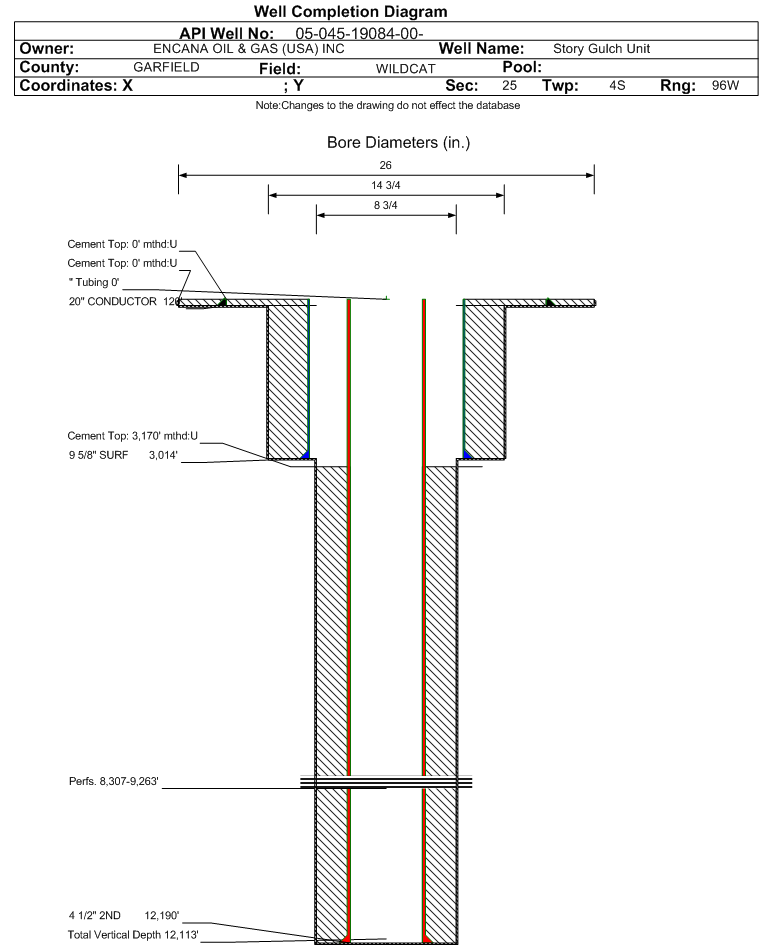

| Wellbore Completed | | Completion Date: | 5/25/2010 | | Spud Date: | 4/8/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 12215 ft. | Measured PB depth: | 12142 ft. | | True Vertical TD: | 12113 ft. | True Vertical PB depth: | 12040 ft. | | Top PZ Location: | Sec:25 Twp: 4S 96W | Footage: 1881 FNL 634 FWL | | Bottom Hole Location: | Sec:25 Twp: 4S 96W | Footage: 1889 FNL 660 FWL | | Log Types: | CBL and RST | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 207, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3014 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1108, Top: 0 ft., Bottom: 3018 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12190 ft., Weight: 12 , Citings Type: ACTUAL | | Cement: | Sacks: 1401, Top: 3170 ft., Bottom: 12215 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 8296 ft. | 12215 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 8/1/2024 Interval Top: 8307 ft. Interval Bottom: 9263 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/9/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/25/2011 | | Treatment Summary: | Stages 10-13 treated with a total of: 24,948 bbls of Slickwater.
| | Formation Treatment | | Treatment Date: | 10/1/2010 | | Treatment Summary: | Stages 1-9 treated with a total of: 58,441 bbls of Slickwater, 267,514 lbs 20-40 Sand, 112,924 lbs 30-50 Sand. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 102 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 102 | | CALC_MCF_GAS | 3024 | | CASING_PRESS | 3458 | | MCF_GAS | 3024 | | TUBING_PRESS | 1247 |
| | Perforation Data: | | Interval Top: | 8307 ft. | # Of Holes: | 120 | | Interval Bottom: | 9263 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 1058 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.501 |
| Average MCFE per Day | 2.896 |
| Federal Financial Assurance | i | Y |
|
|
