COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19080		Well Classification: GW Status: PR - 12/22/2010
Well Name/No:Story Gulch Unit #8504A-25 F25496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC61136
Facility Status:PRStatus Date12/22/2010
FacilityID:415526LocationID:415182
County:GARFIELD #045Location:SENW 25 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8298 ft.
Basin:PICEANCE BASIN
Planned Location:2302FNL  1890 FWLLat/Long: 39.674247 / -108.119825Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.674248 / -108.119824Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/22/2010             Measured TD: 12720 ft.    Vertical TD: 12363 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/22/2010
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/2/2012
Proposed Top PZ Location:Sec:25 Twp: 4S 96W Footage: 192 FNL  694 FWL
Bottom Hole Location:Sec:25 Twp: 4S 96W Footage: 192 FNL  694 FWL
Proposed Depth/Form:14068 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:Story Gulch Unt Unit Number:COC69333X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED
Cement:Sacks: 176, Top: 0 ft., Bottom: 120 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 2069, Top: 0 ft., Bottom: 3000 ft.
Casing:String Type: 2ND, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 14068 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 857, Top: 8408 ft., Bottom: 14068 ft.
Wellbore Completed
Completion Date:8/15/2010
Spud Date:4/17/2010Spud Date Is:ACTUAL
Measured TD:12720 ft.Measured PB depth:12638 ft.
True Vertical TD:12363 ft.True Vertical PB depth:12254 ft.
Top PZ Location:Sec:25 Twp: 4S 96WFootage: 224 FNL  721 FWL
Bottom Hole Location:Sec:25 Twp: 4S 96WFootage: 196 FNL  680 FWL
Log Types:RST, IBC and Mud Logs

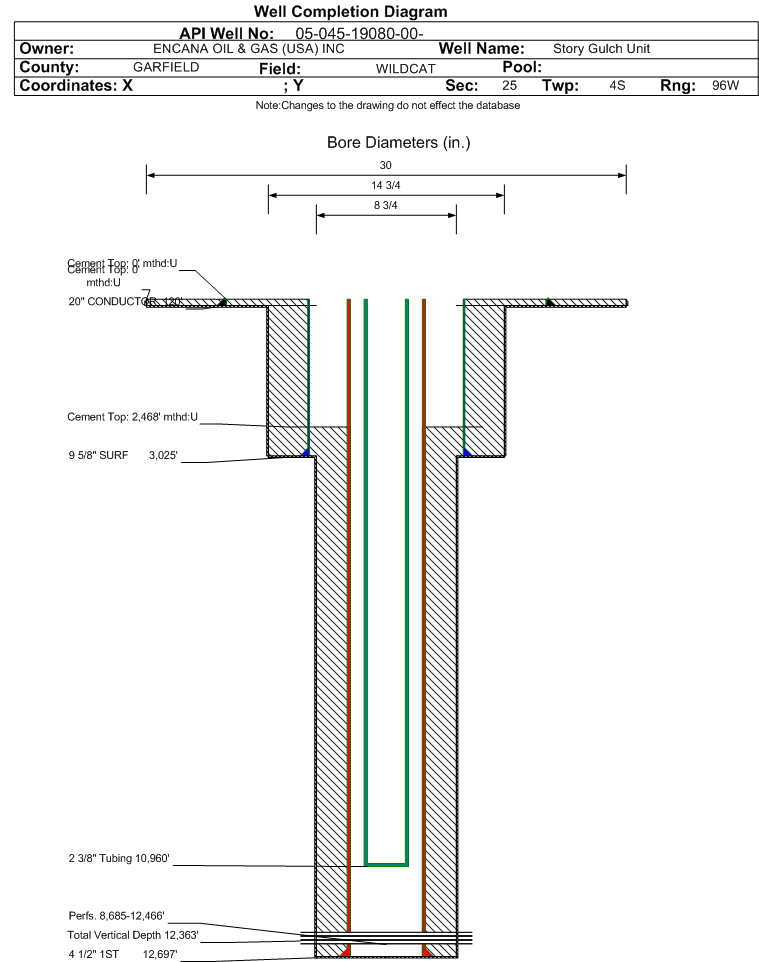

Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 53 , Citings Type: ACTUAL
Cement:Sacks: 194, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3025 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1108, Top: 0 ft., Bottom: 3025 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12697 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 2128, Top: 2468 ft., Bottom: 12702 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK8621 ft.12571 ft.
ROLLINS12572 ft.12720 ft.

Formation WMFK                     Formation Classification:  OW                     Status:  PR - 12/22/2010                Interval Top: 8685 ft.    Interval Bottom: 12466 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/14/2010Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/8/2010
Treatment Summary:Stages 1-10 treated with a total of: 90982 bbls of Slickwater, 614759 lbs 100 Sand.
Tubing Size:2.375 in.Tubing Setting Depth:10960 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/22/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1932
BTU_GAS 1170
CALC_BBLS_H2O 1932
CALC_MCF_GAS 3396
CASING_PRESS 2841
MCF_GAS 3396
TUBING_PRESS 891
Perforation Data:
Interval Top:8685 ft.# Of Holes:300
Interval Bottom:12466 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)32
Total Gas Produced (MCF)7551
GOR235968
GOR DeterminationMCFE
Average BOE per Day3.662
Average MCFE per Day21.269

 Federal Financial Assurance  i Y

 Tribal Well  i No
