COGIS - WELL SCOUT CARD

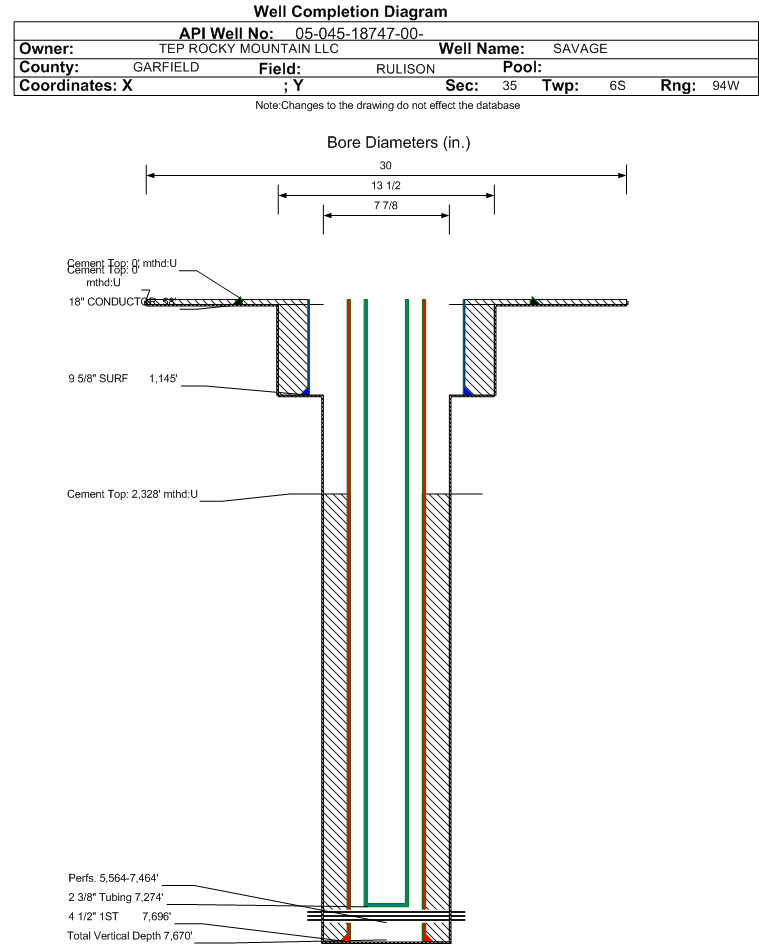

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-18747		Well Classification: GW Status: PR - 10/31/2010
Well Name/No:SAVAGE #RWF 32-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC07506
Facility Status:PRStatus Date10/31/2010
FacilityID:413220LocationID:323908
County:GARFIELD #045Location:NWNE 35 6S94W 6
Field:RULISON - #75400Elevation:5442 ft.
Basin:PICEANCE BASIN
Planned Location:747FNL  2056 FELLat/Long: 39.487100 / -107.853245Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.487100 / -107.853249Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/31/2010             Measured TD: 7710 ft.    Vertical TD: 7670 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/31/2010
Wellbore PermitDIRECTIONAL
Permit #:Expiration Date:9/26/2010
Proposed Top PZ Location:Sec:35 Twp: 6S 94W Footage: 1331 FNL  1910 FEL
Bottom Hole Location:Sec:35 Twp: 6S 94W Footage: 1331 FNL  1910 FEL
Proposed Depth/Form:7773 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 136-66 , Unit Acreage: 640, Drill Unit: ALL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 45 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1104 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 1104 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7773 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom: 7773 ft.
Wellbore Completed
Completion Date:6/30/2010
Spud Date:6/23/2010Spud Date Is:ACTUAL
Measured TD:7710 ft.Measured PB depth:7647 ft.
True Vertical TD:7670 ft.True Vertical PB depth:7607 ft.
Top PZ Location:Sec:35 Twp: 6S 94WFootage: 1319 FNL  1903 FEL
Bottom Hole Location:Sec:35 Twp: 6S 94WFootage: 1347 FNL  1905 FEL
Log Types:CBL/MUD/RPM/Triple Combo on 045-18749
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 18 in., Top: 0 ft., Depth: 58 ft., Weight: 47.4 , Citings Type: ACTUAL
Cement:Sacks: 22, Top: 0 ft., Bottom: 58 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1145 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 1145 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7696 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1020, Top: 2328 ft., Bottom: 7696 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1447 ft.
MESAVERDE3975 ft.
WILLIAMS FORK3975 ft.
CAMEO6698 ft.
ROLLINS7553 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/31/2010                Interval Top: 5564 ft.    Interval Bottom: 7464 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:8/21/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/18/2010
Treatment Summary:4000 Gals 7.5% HCL; 29311 BBLs Slickwater; 233766 100/Mesh; 707001 #20/40 Sand; (summary)
Tubing Size:2.375 in.Tubing Setting Depth:7274 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/31/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1098
CALC_MCF_GAS 968
CASING_PRESS 2094
MCF_GAS 968
TUBING_PRESS 1879
Perforation Data:
Interval Top:5564 ft.# Of Holes:137
Interval Bottom:7464 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)47
Total Gas Produced (MCF)28156
GOR599063
GOR DeterminationMCFE
Average BOE per Day13.429
Average MCFE per Day77.871

 Federal Financial Assurance  i Y

 Tribal Well  i No
