Wellbore #00 Wellbore Classification: GW Status: PR - 12/14/2015 Measured TD: 7915 ft. Vertical TD: 7676 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/14/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/26/2010 | | Proposed Top PZ Location: | Sec:35 Twp: 6S 94W | Footage: 424 FNL 618 FEL | | Bottom Hole Location: | Sec:35 Twp: 6S 94W | Footage: 430 FNL 623 FEL | | Proposed Depth/Form: | 8004 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1108 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 1108 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8004 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: 8004 ft. |
| | |

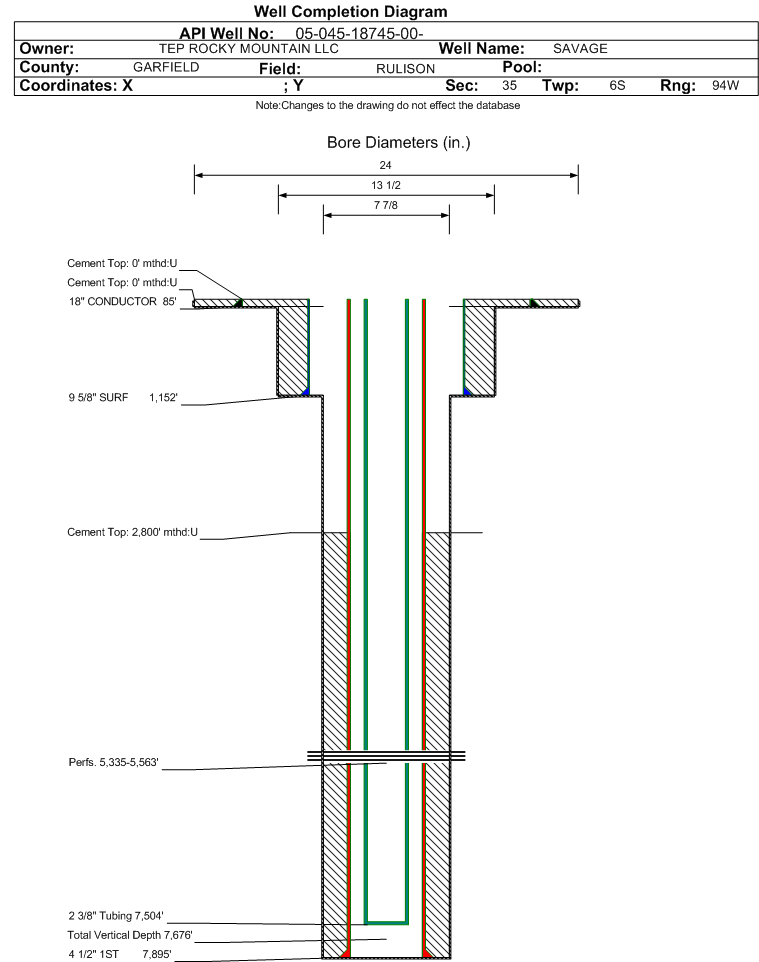

| Wellbore Completed | | Completion Date: | 4/12/2010 | | Spud Date: | 4/5/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7915 ft. | Measured PB depth: | 7862 ft. | | True Vertical TD: | 7676 ft. | True Vertical PB depth: | 7623 ft. | | Top PZ Location: | Sec:35 Twp: 6S 94W | Footage: 424 FNL 618 FEL | | Bottom Hole Location: | Sec:35 Twp: 6S 94W | Footage: 430 FNL 623 FEL | | Log Types: | SP/GR/HDIL/ZDL/CN AND CBL | | Log Types: | CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 85 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1152 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1152 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7895 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1035, Top: 2800 ft., Bottom: 7895 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1467 ft. | | | | | MESAVERDE | 4199 ft. | | | | | CAMEO | 7002 ft. | | | | | ROLLINS | 7864 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 12/14/2015 Interval Top: 5335 ft. Interval Bottom: 5563 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/21/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/26/2014 | Treatment End Date: | 10/24/2014 | | Treatment Summary: | 6051 BBLS Slickwater; 212500 40/70 Sand; (summary) | | Total fluid used in treatment (bbls): | 6051 | Max pressure during treatment (psi): | 6796 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 2 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | 6051 | Total flowback volume recovered (bbls): | 1744 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 212500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 5/19/2010 | | Treatment Summary: | 4009 GALS 7 1/2% HCL; 1111600 # 20/40 SAND; 27337 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7504 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1134 | | CALC_MCF_GAS | 312 | | CASING_PRESS | 491 | | MCF_GAS | 312 | | TUBING_PRESS | 207 |
| | Perforation Data: | | Interval Top: | 5335 ft. | # Of Holes: | 48 | | Interval Bottom: | 5563 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 31312 |
| GOR | 569309 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.950 |
| Average MCFE per Day | 86.715 |
| Federal Financial Assurance | i | Y |
|
|
