Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 8480 ft. Vertical TD: 8092 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20090758 | Expiration Date: | 4/19/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 468 FNL 688 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 95W | Footage: 468 FNL 688 FEL | | Proposed Depth/Form: | 8365 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: E2 |
| | |

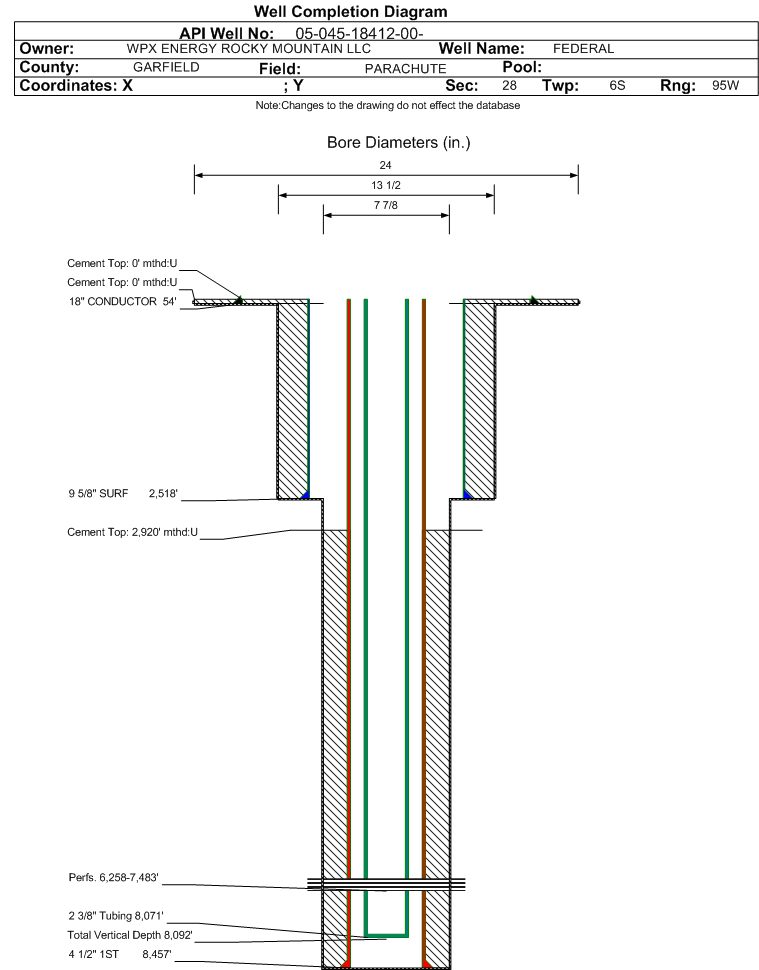

| Wellbore Completed | | Completion Date: | 12/6/2009 | | Spud Date: | 11/26/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8480 ft. | Measured PB depth: | 8420 ft. | | True Vertical TD: | 8092 ft. | True Vertical PB depth: | 8032 ft. | | Top PZ Location: | Sec:28 Twp: 6S 95W | Footage: 302 FNL 512 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 95W | Footage: 295 FNL 502 FEL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Log Types: | CBL, HIGH RES INDUCTION, SPEC DENSITY, DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 54 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 54 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2518 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 580, Top: 0 ft., Bottom: 2518 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8457 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 960, Top: 2920 ft., Bottom: 8457 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2261 ft. | | | | | WASATCH G | 2261 ft. | | N | N | | MESAVERDE | 4768 ft. | | | | | CAMEO | 7588 ft. | | | | | ROLLINS | 8414 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/30/2010 Interval Top: 6258 ft. Interval Bottom: 7483 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/1/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/24/2010 | | Treatment Summary: | 4007 GALS 7 1/2% HCL; 1125300# 30/50 SAND; 27381 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8071 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1061 | | CALC_MCF_GAS | 1026 | | CASING_PRESS | 967 | | MCF_GAS | 1026 | | TUBING_PRESS | 695 |
| | Perforation Data: | | Interval Top: | 6258 ft. | # Of Holes: | 137 | | Interval Bottom: | 7483 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 43 |
| Total Gas Produced (MCF) | 23108 |
| GOR | 537395 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.038 |
| Average MCFE per Day | 63.998 |
| Federal Financial Assurance | i | Y |
|
|
