Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-18410		Well Classification: GW	Status: PR - 7/31/2010
Well Name/No:	FEDERAL #PA 342-28 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62161
Facility Status:	PR	Status Date	7/31/2010
FacilityID:	411919	LocationID:	335275
County:	GARFIELD #045	Location:	SWNE 28 6S95W 6
Field:	PARACHUTE - #67350	Elevation:	5559 ft.
Basin:	PICEANCE BASIN
Planned Location:	1905FNL 1734 FEL	Lat/Long: 39.497261 / -107.999908	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.497261 / -107.999908	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/31/2010 Measured TD: 8020 ft. Vertical TD: 7888 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/31/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20090760	Expiration Date:	4/19/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 2077 FNL 649 FEL
Bottom Hole Location:	Sec:28 Twp: 6S 95W	Footage: 2077 FNL 649 FEL
Proposed Depth/Form:	7941 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: E2

Wellbore Completed
Completion Date:	2/5/2010
Spud Date:	1/30/2010	Spud Date Is:	ACTUAL
Measured TD:	8020 ft.	Measured PB depth:	7968 ft.
True Vertical TD:	7888 ft.	True Vertical PB depth:	7836 ft.
Top PZ Location:	Sec:28 Twp: 6S 95W	Footage: 2056 FNL 571 FEL
Bottom Hole Location:	Sec:28 Twp: 6S 95W	Footage: 2080 FNL 590 FEL
Log Types:	CBL; RESEVOIR MONITOR TOOL ELITE
Log Types:	CBL, MUD, RESERVOIR MONITOR TOOL ELITE

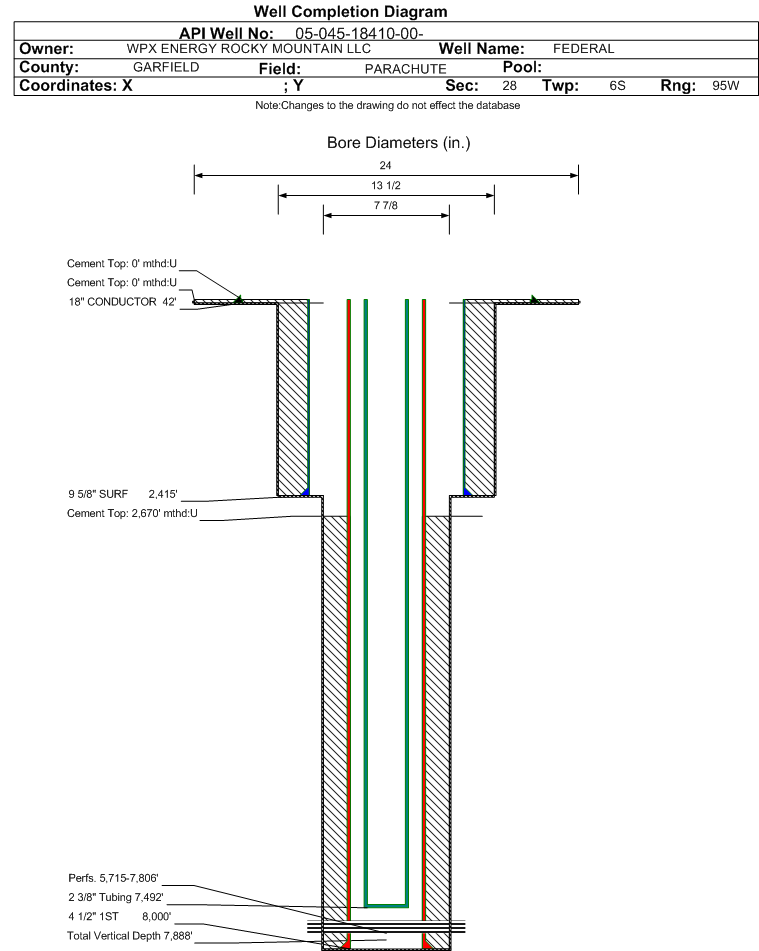

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 19, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2415 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 550, Top: 0 ft., Bottom: 2415 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8000 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 935, Top: 2670 ft., Bottom: 8000 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	2153 ft.
WASATCH G	2153 ft.		N	N
MESAVERDE	4447 ft.
CAMEO	7162 ft.
ROLLINS	7952 ft.

Formation WFCM Formation Classification: GW Status: PR - 7/31/2010 Interval Top: 5715 ft. Interval Bottom: 7806 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	4/2/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	3/25/2010
Treatment Summary:	4073 GALS 7 1/2%; 1018600# 30/50 SAND; 27567 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7492 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1075
CASING_PRESS	554
MCF_GAS	785
TUBING_PRESS	298

Perforation Data:
Interval Top:	5715 ft.	# Of Holes:	144
Interval Bottom:	7806 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	29
Total Gas Produced (MCF)	15600
GOR	537931
GOR Determination	MCFE
Average BOE per Day	7.455
Average MCFE per Day	43.251

Federal Financial Assurance

Tribal Well
