COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-18409		Well Classification: GW	Status: PR - 7/31/2010
Well Name/No:	FEDERAL #PA 531-28 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62161
Facility Status:	PR	Status Date	7/31/2010
FacilityID:	411918	LocationID:	335275
County:	GARFIELD #045	Location:	SWNE 28 6S95W 6
Field:	PARACHUTE - #67350	Elevation:	5558 ft.
Basin:	PICEANCE BASIN
Planned Location:	1890FNL 1776 FEL	Lat/Long: 39.497306 / -108.000005	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.497304 / -108.000058	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/31/2010 Measured TD: 7969 ft. Vertical TD: 7897 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/31/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20090748	Expiration Date:	4/19/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 1085 FNL 1945 FEL
Bottom Hole Location:	Sec:28 Twp: 6S 95W	Footage: 1085 FNL 1945 FEL
Proposed Depth/Form:	7901 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: E2

Wellbore Completed
Completion Date:	11/20/2009
Spud Date:	11/13/2009	Spud Date Is:	ACTUAL
Measured TD:	7969 ft.	Measured PB depth:	7900 ft.
True Vertical TD:	7897 ft.	True Vertical PB depth:	7828 ft.
Top PZ Location:	Sec:28 Twp: 6S 95W	Footage: 1027 FNL 1846 FEL
Bottom Hole Location:	Sec:28 Twp: 6S 95W	Footage: 1055 FNL 1873 FEL
Log Types:	CBL; RPM
Log Types:	CBL, MUD

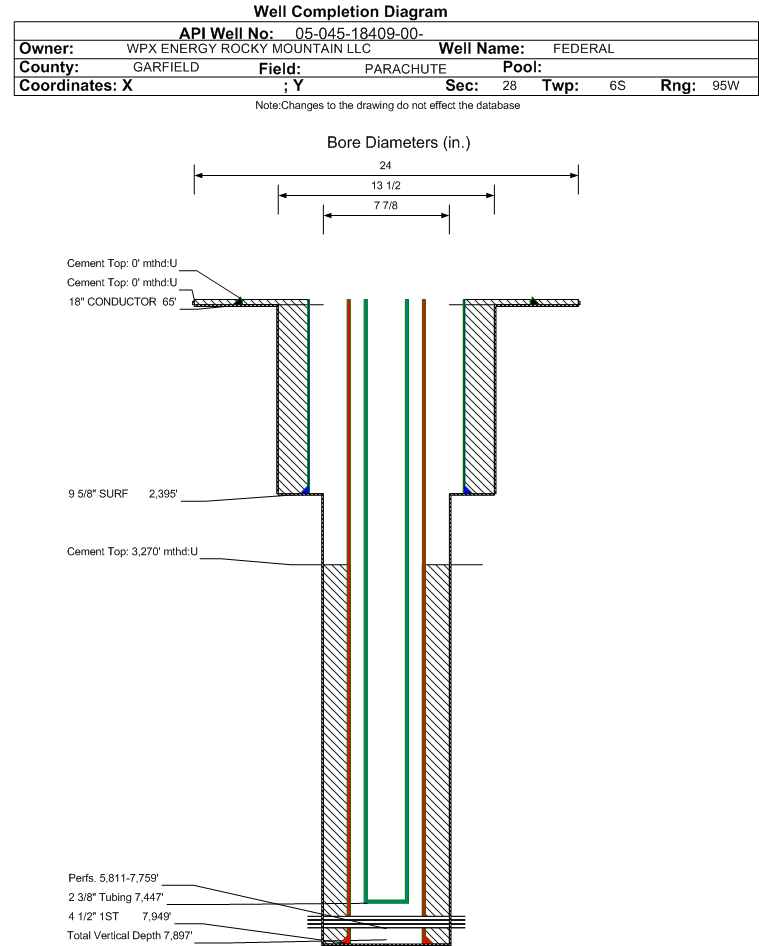

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2395 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 530, Top: 0 ft., Bottom: 2395 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7949 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 920, Top: 3270 ft., Bottom: 7949 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	2130 ft.
WASATCH G	2130 ft.		N	N
MESAVERDE	4393 ft.
CAMEO	7104 ft.
ROLLINS	7839 ft.

Formation WFCM Formation Classification: GW Status: PR - 7/31/2010 Interval Top: 5811 ft. Interval Bottom: 7759 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	3/29/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	3/24/2010
Treatment Summary:	3500 GALS 7 1/2% HCL; 908342# 30/50 SAND; 26462 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7447 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1078
CASING_PRESS	620
MCF_GAS	853
TUBING_PRESS	376

Perforation Data:
Interval Top:	5811 ft.	# Of Holes:	115
Interval Bottom:	7759 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	34
Total Gas Produced (MCF)	17628
GOR	518470
GOR Determination	MCFE
Average BOE per Day	8.421
Average MCFE per Day	48.828
