Wellbore #00 Wellbore Classification: GW Status: PR - 7/31/2010 Measured TD: 7825 ft. Vertical TD: 7817 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/31/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20090750 | Expiration Date: | 4/19/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1739 FNL 1946 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1739 FNL 1946 FEL | | Proposed Depth/Form: | 7841 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: E2 |
| | |

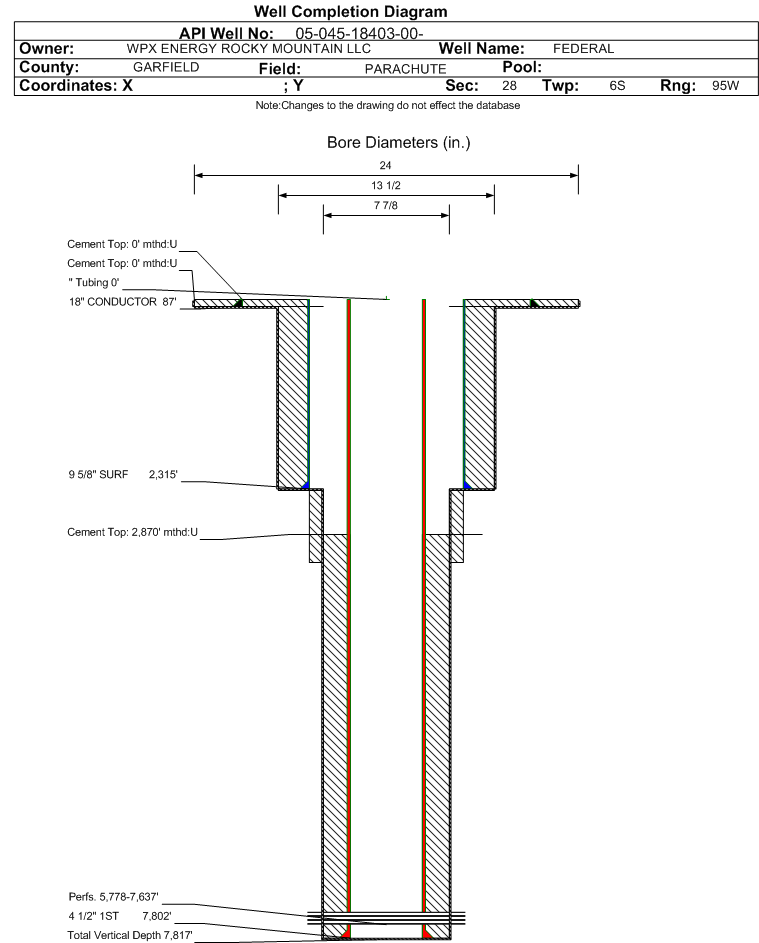

| Wellbore Completed | | Completion Date: | 10/11/2009 | | Spud Date: | 10/4/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 7825 ft. | Measured PB depth: | 7769 ft. | | True Vertical TD: | 7817 ft. | True Vertical PB depth: | 7761 ft. | | Top PZ Location: | Sec:28 Twp: 6S 95W | Footage: 1719 FNL 1936 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 95W | Footage: 1738 FNL 1959 FEL | | Log Types: | CBL, MUD | | Log Types: | CBL; PLATFORM EXPRESS, GAMMA RAY, ARRAY INDUCTION/SP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 87 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 33, Top: 0 ft., Bottom: 87 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2315 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 3215 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7802 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 870, Top: 2870 ft., Bottom: 7802 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2111 ft. | | | | | WASATCH G | 2111 ft. | | N | N | | MESAVERDE | 4319 ft. | | | | | CAMEO | 6999 ft. | | | | | ROLLINS | 7711 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/31/2010 Interval Top: 5778 ft. Interval Bottom: 7637 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/30/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/22/2010 | | Treatment Summary: | 4010 GALS 7 1/2% HCL; 903100# 30/50 SAND; 27969 BBLS SLICKWATER (SUMMARY). 2 3/8 " TUBING SET AT 7408' |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1077 | | CASING_PRESS | 400 | | MCF_GAS | 643 | | TUBING_PRESS | 294 |
| | Perforation Data: | | Interval Top: | 5778 ft. | # Of Holes: | 121 | | Interval Bottom: | 7637 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 14353 |
| GOR | 574120 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.850 |
| Average MCFE per Day | 39.732 |
| Federal Financial Assurance | i | Y |
|
|
