COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-18325		Well Classification: GW Status: PR - 1/1/2019
Well Name/No:GMU FEE #22-14(522NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2019
FacilityID:301917LocationID:383334
County:GARFIELD #045Location:NESW 22 6S93W 6
Field:MAMM CREEK - #52500Elevation:6218 ft.
Basin:PICEANCE BASIN
Planned Location:1451FSL  2276 FWLLat/Long: 39.508553 / -107.763067Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.508552 / -107.763078Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2019             Measured TD: 8914 ft.    Vertical TD: 8823 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2019
Wellbore PermitDIRECTIONAL
Permit #:20090160 Expiration Date:3/8/2010
Proposed Top PZ Location:Sec: Twp: Footage: 680 FSL  1970 FWL
Bottom Hole Location:Sec:22 Twp: 6S 93W Footage: 680 FSL  1970 FWL
Proposed Depth/Form:9000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit:GRASS MESA Unit Number:COC56608
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 1.444 in., Size: 5.222 in., Top: , Depth: 243 ft., Weight: 905 , Citings Type: PLANNED
Cement:Sacks: 905, Top: , Bottom: 0 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 9054 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 726, Top: 500 ft., Bottom: 9054 ft.
Wellbore Completed
Completion Date:3/26/2010
Spud Date:2/17/2010Spud Date Is:ACTUAL
Measured TD:8914 ft.Measured PB depth:8861 ft.
True Vertical TD:8823 ft.True Vertical PB depth:8770 ft.
Top PZ Location:Sec:22 Twp: 6S 93WFootage: 647 FSL  2046 FWL
Bottom Hole Location:Sec:22 Twp: 6S 93WFootage: 440 FSL  1980 FWL
Log Types:CBL & RST.

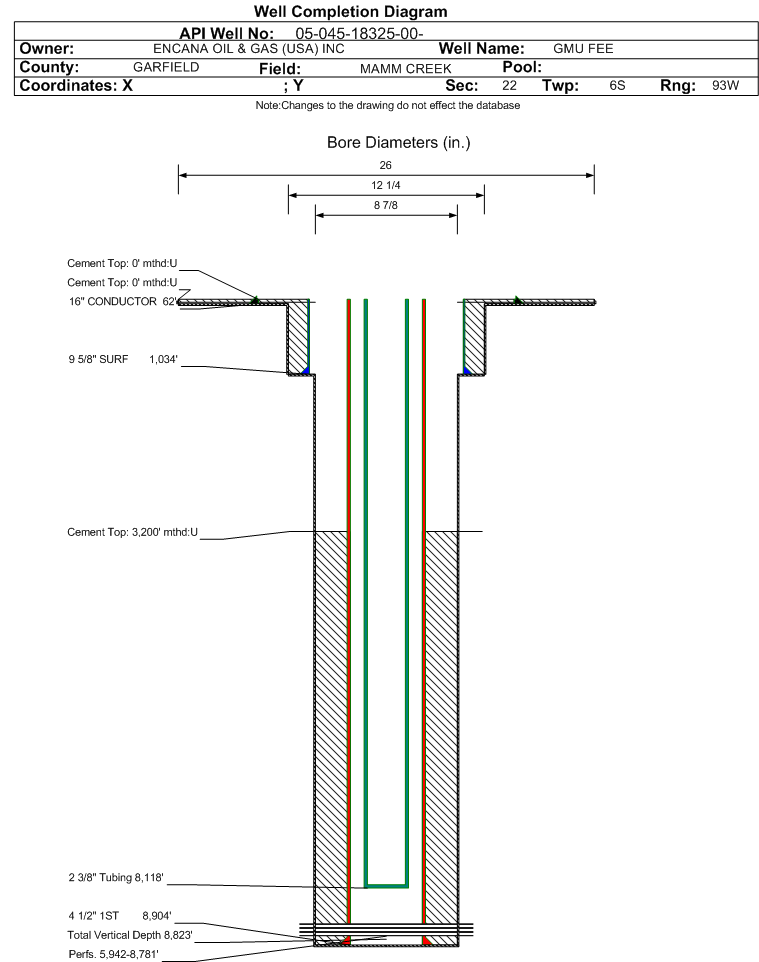

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 62 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1034 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 348, Top: 0 ft., Bottom: 1034 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8904 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 3200 ft., Bottom: 8904 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5099 ft.8814 ft.
ROLLINS5515 ft.8914 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2019                  Interval Top: 5942 ft.    Interval Bottom: 8781 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/10/2010Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/21/2010
Treatment Summary:STAGES 1-4 , 6-8 5A,5B TREATED WITH A TOTAL OF 64,945 BBLS OF SLICKWATER, 685,860 LBS 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8118 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/4/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 453
BTU_GAS 1170
CALC_BBLS_H2O 453
CALC_MCF_GAS 922
CASING_PRESS 1260
MCF_GAS 922
TUBING_PRESS 640
Perforation Data:
Interval Top:5942 ft.# Of Holes:243
Interval Bottom:8781 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)189
Total Gas Produced (MCF)21484
GOR113671
GOR DeterminationMCFE
Average BOE per Day10.663
Average MCFE per Day61.842

 Federal Financial Assurance  i Y

 Tribal Well  i No
